Baterie jsou klíčové pro dojezd, výkon a životnost nových energetických vozidel (NEV). Tyto faktory jsou rozhodující pro majitele a výrobce NEV, také bezpečnost, účinnost a náklady jsou velice důležité pro úspěch.
Spolehlivé baterie s dlouhou výdrží vyžadují prvotřídní materiály a přesné výrobní techniky. Články, moduly a bateriové vany musí také splňovat velmi přísné tolerance při finální montáži.
Díky průmyslové mikroskopii, počítačové tomografii (CT), souřadnicovým měřicím strojům (CMM) a optickým 3D měřicím systémům využívá portfolio ZEISS softwarová řešení k zaznamenávání dat kvality, která jsou nezbytná pro zajištění bezpečnosti a výkonu baterií elektrických vozidel.
Kompletní pokrytí aplikací baterií

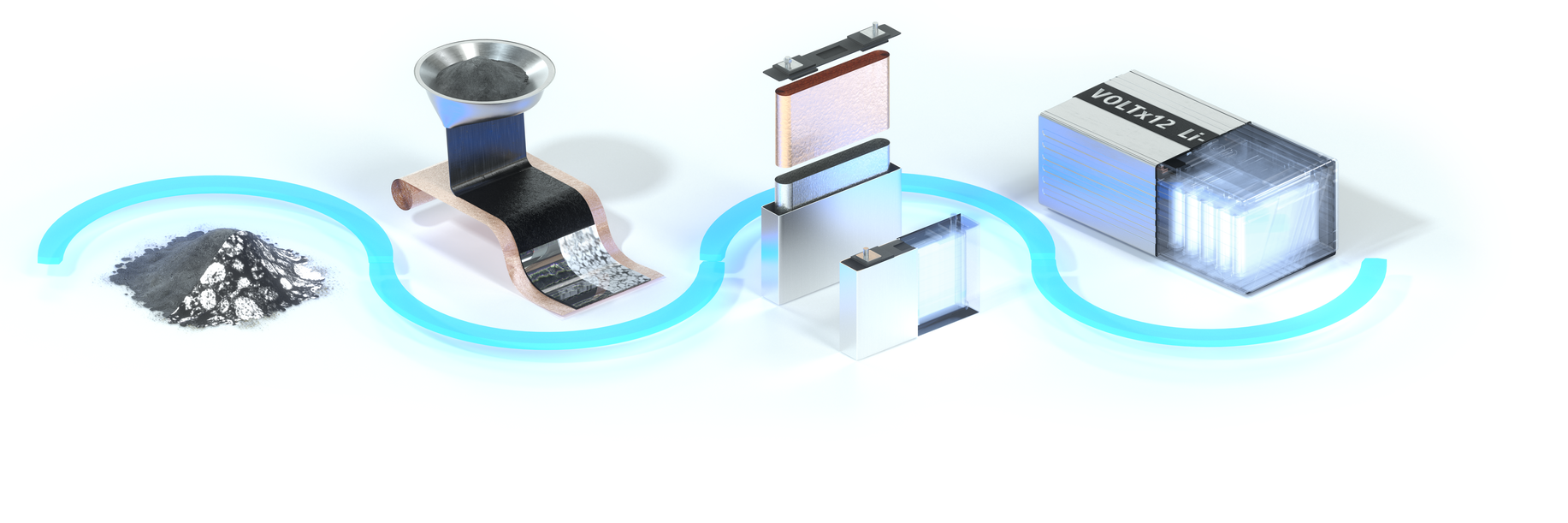

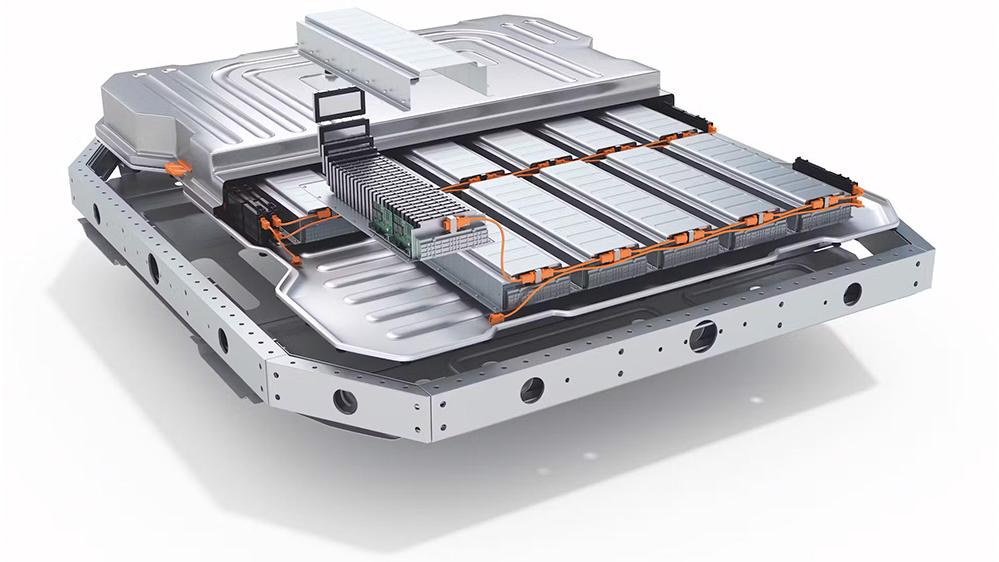

V odvětví NEV jsou baterie srdcem celé řady aplikací pro řízení kvality. Ty pokrývají celý pracovní postup výroby baterií od počátečního vývoje až po finální montáž. Analýza materiálů baterií, kontrola elektrod baterií, provádění finální kontroly vyrobených článků a modulů, kontrola bateriové vany – to vše můžete provádět pomocí portfolia ZEISS. Klikněte na níže uvedené odkazy a prozkoumejte naše specializovaná řešení pro řízení kvality pro použití baterií NEV.

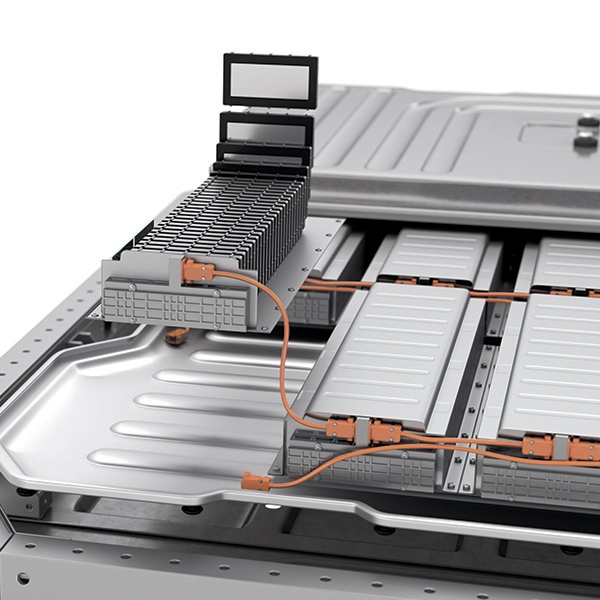

Materiály baterií

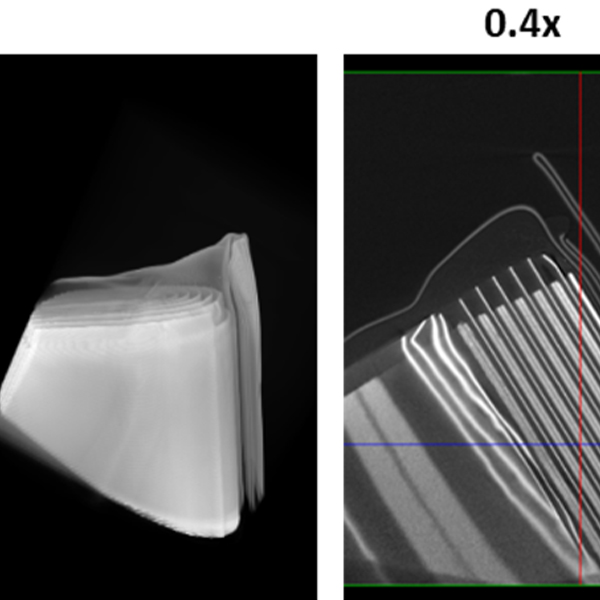

Vývoj materiálu a struktury
Suroviny mají významný vliv na výkon baterií. Mezi klíčové výzvy v této oblasti patří vývoj nových aktivních materiálů, zajištění rovnoměrných a konzistentních dodávek, udržování správného kalandrovacího tlaku a sledování mikroskopických změn způsobených stárnutím.

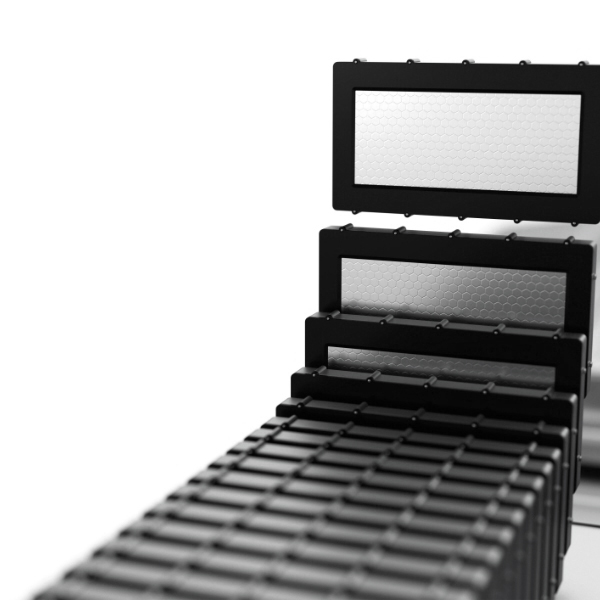

Elektrody baterií jsou důležité v oblasti bezpečnosti a účinnosti, klíčovou úlohu v tomto ohledu má analýza mikrostruktury materiálů, kontrola a včasná výměna řezacích čepelí a 3D vizualizace deformací. Dále je důležité zabránit znečištění částicemi prostřednictvím technické čistoty.

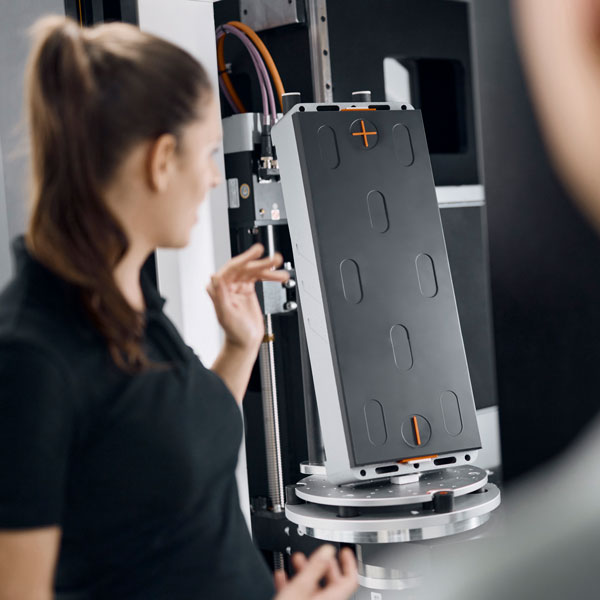

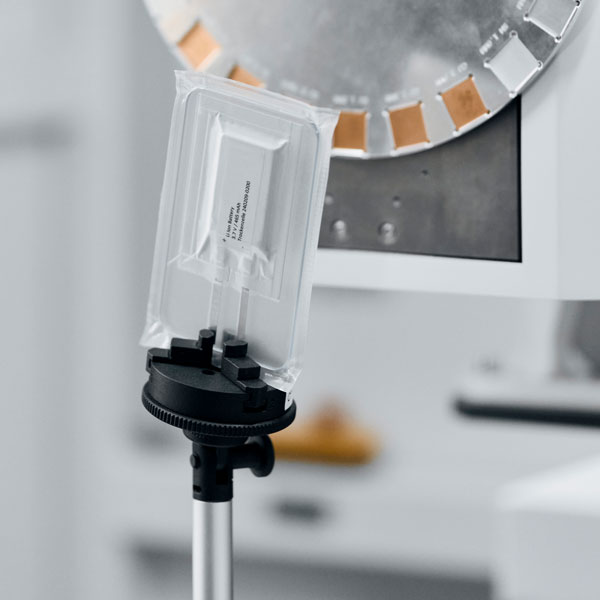

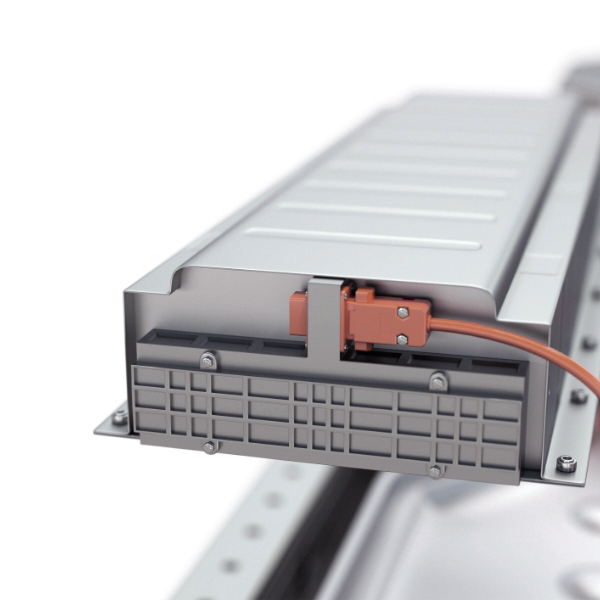

Konečná kontrola celého bateriového modulu je obzvláště náročný proces, protože jednotlivé články v modulech představují řadu bezpečnostních rizik a problémů v oblasti kvality. Pro všechny tři typy článků – válcové, hranolové a pouzdrové – jsou nutné rychlé testovací cykly s vysokým rozlišením.

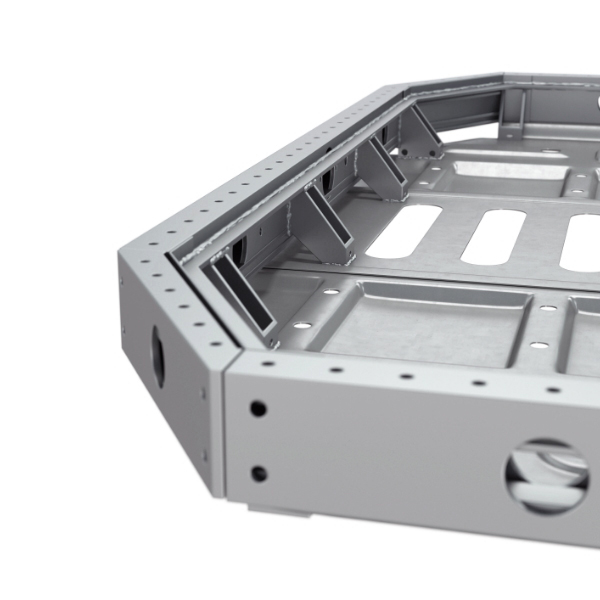

V bateriové vaně se nacházejí všechny bateriové články, připojení, řídicí jednotky a bateriové bloky, které obsahují četné bateriové moduly. Jelikož je zcela integrována do karoserie vozidla, musí být její konstrukce a neporušenost během výroby kontrolována v několika intervalech, aby byla zajištěna kvalita a bezpečnost.
Kontrola kvality při vstupu zajišťuje jednotnost a konzistenci materiálu, zabraňuje tak chybám, které mají velký vliv na výkon a efektivitu

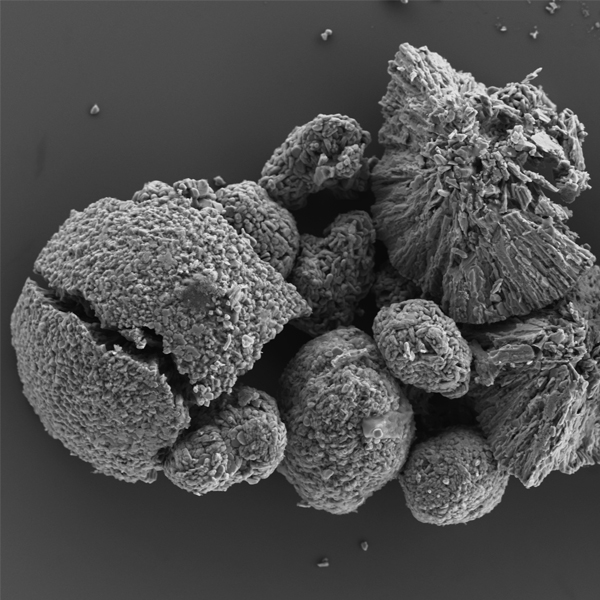

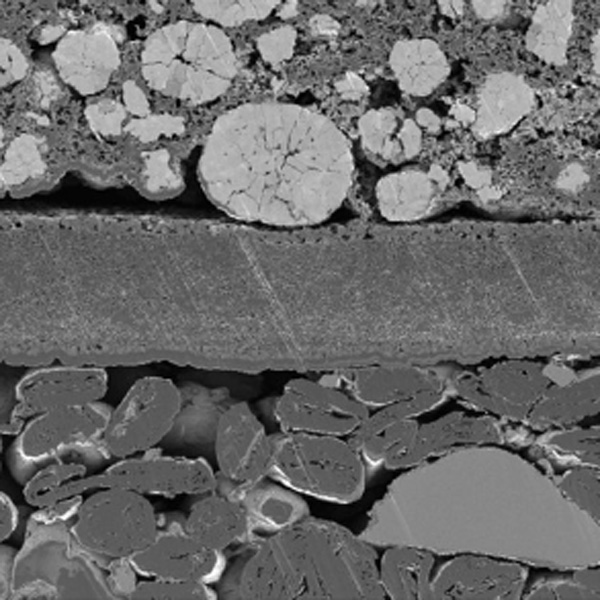

Vizualizace a kontrola mikrostruktury suroviny, poměru chemických prvků v částicích katody a čistoty částic anody – to vše jsou rozhodující faktory pro prevenci poruch baterií
Vaše výhody s řešeními ZEISS

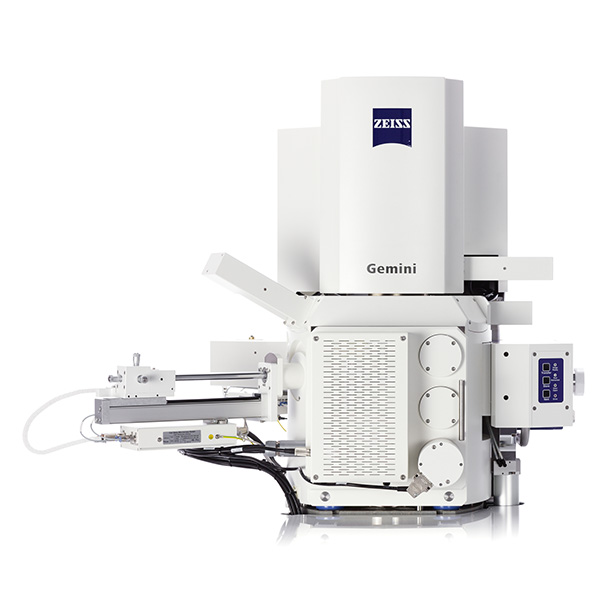

ZEISS GeminiSEM splňuje nejvyšší požadavky na subnanometrové zobrazování, analytiku a flexibilitu vzorků
Kompletní pracovní postup přípravy vzorků umožňuje rychlé, jasné a plynulé zobrazení mikrostruktury materiálu
Podporuje zobrazování nevodivých vzorků s vysokým rozlišením a vysokým kontrastem
Kontrola cizích částic větších než 5 μm je nutná z důvodu vysokého rizika kontaminace během přepravy a výroby
Při řezání elektrod mohou vznikat otřepy, je proto velmi důležité najít rovnováhu mezi kvalitou a náklady tím, že se určí ideální doba pro výměnu čepelí
Vaše výhody s řešeními ZEISS
Software ZEISS pro analýzu technické čistoty rozlišuje kovové, vláknité a nekovové částice a odhaduje riziko kontaminace
Rastrovací elektronové mikroskopy ZEISS automaticky určují chemické složení každé částice a identifikují tak příčinu kontaminace
Automatická detekce otřepů ve výrobním prostředí a neustálá zpětná vazba na výrobní linku
Video přehrávač je zablokován kvůli vaším předvolbám souborů cookie. Pro změnu nastavení a přehrátí videozáznamu klikněte na níže uvedené tlačítko a vyslovte svůj souhlas s použitím „funkčních“ sledovacích technologií.
Inovace podporující přechod na elektromobilitu
ZEISS eMobility Solutions pro baterie
Blokovaný obsah třetí strany
Video přehrávač je zablokován kvůli vaším předvolbám souborů cookie. Pro změnu nastavení a přehrátí videozáznamu klikněte na níže uvedené tlačítko a vyslovte svůj souhlas s použitím „funkčních“ sledovacích technologií.
Ohromující detaily díky nedestruktivní počítačové tomografii (CT)

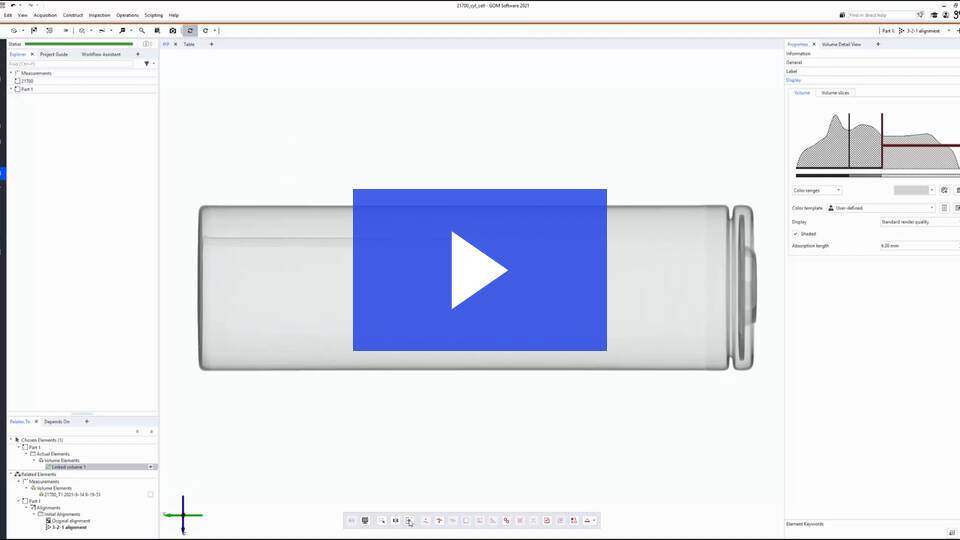

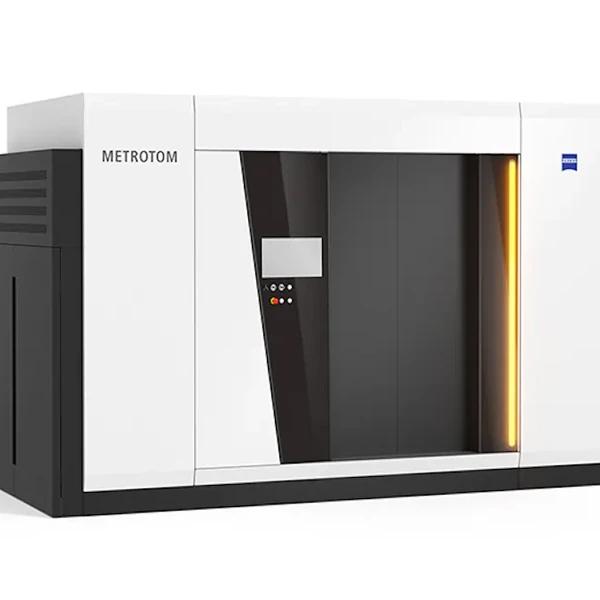

Skenování válcových baterií pomocí ZEISS METROTOM 1500

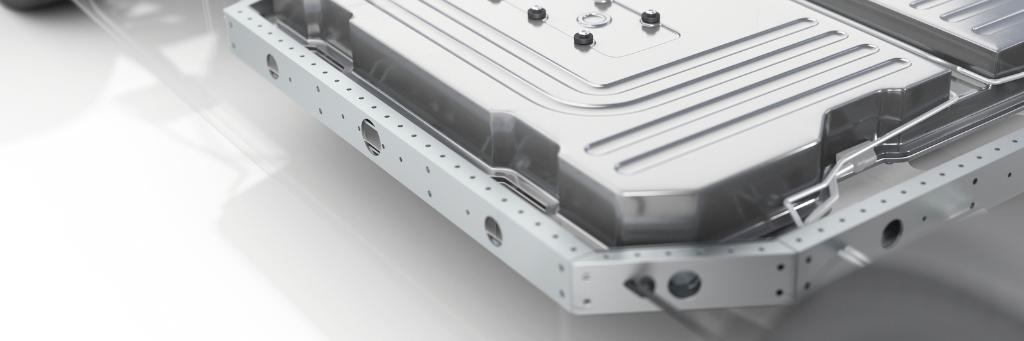

Baterie jsou srdcem elektrických vozidel. Zajištění jejich kvality má pro výrobce nejvyšší prioritu. Je to prostě nutnost.
