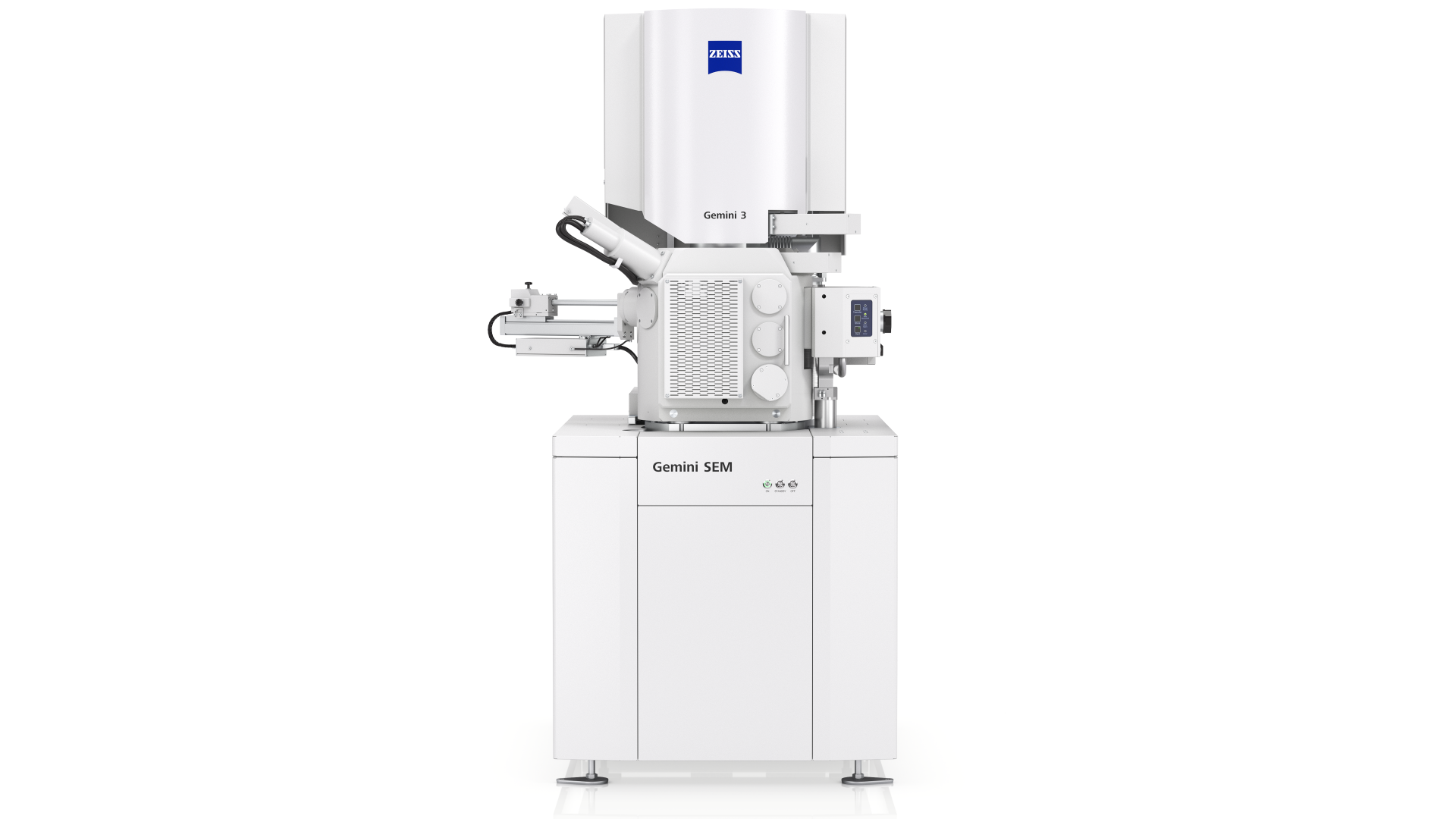

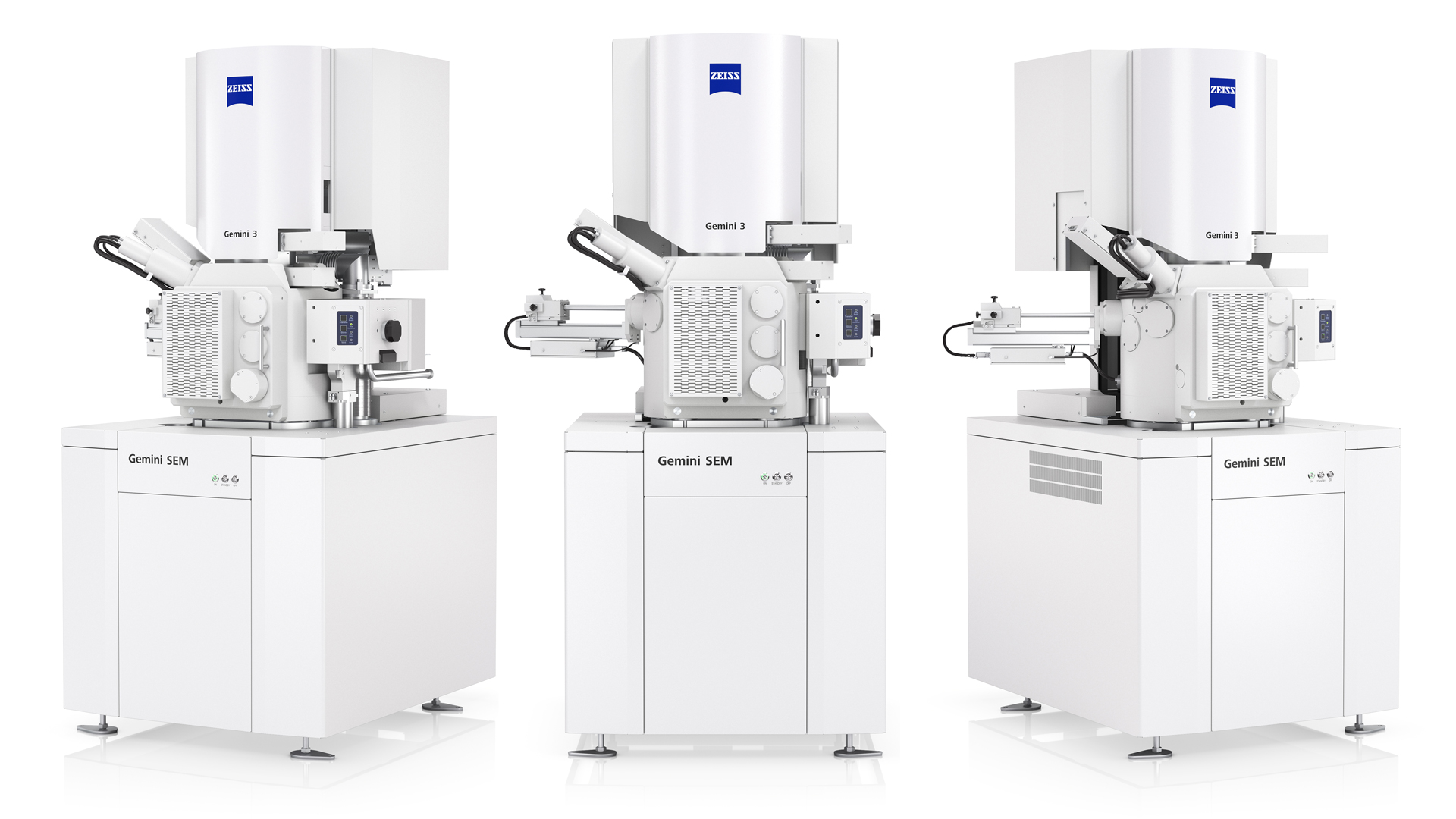

ZEISS GeminiSEM​

The performance of functional materials and advanced devices such as batteries, solar cells and fuel cells depends on the microstructure of the material used. In order for these material composites to deliver the desired performance, the interplay between many different materials must work.​

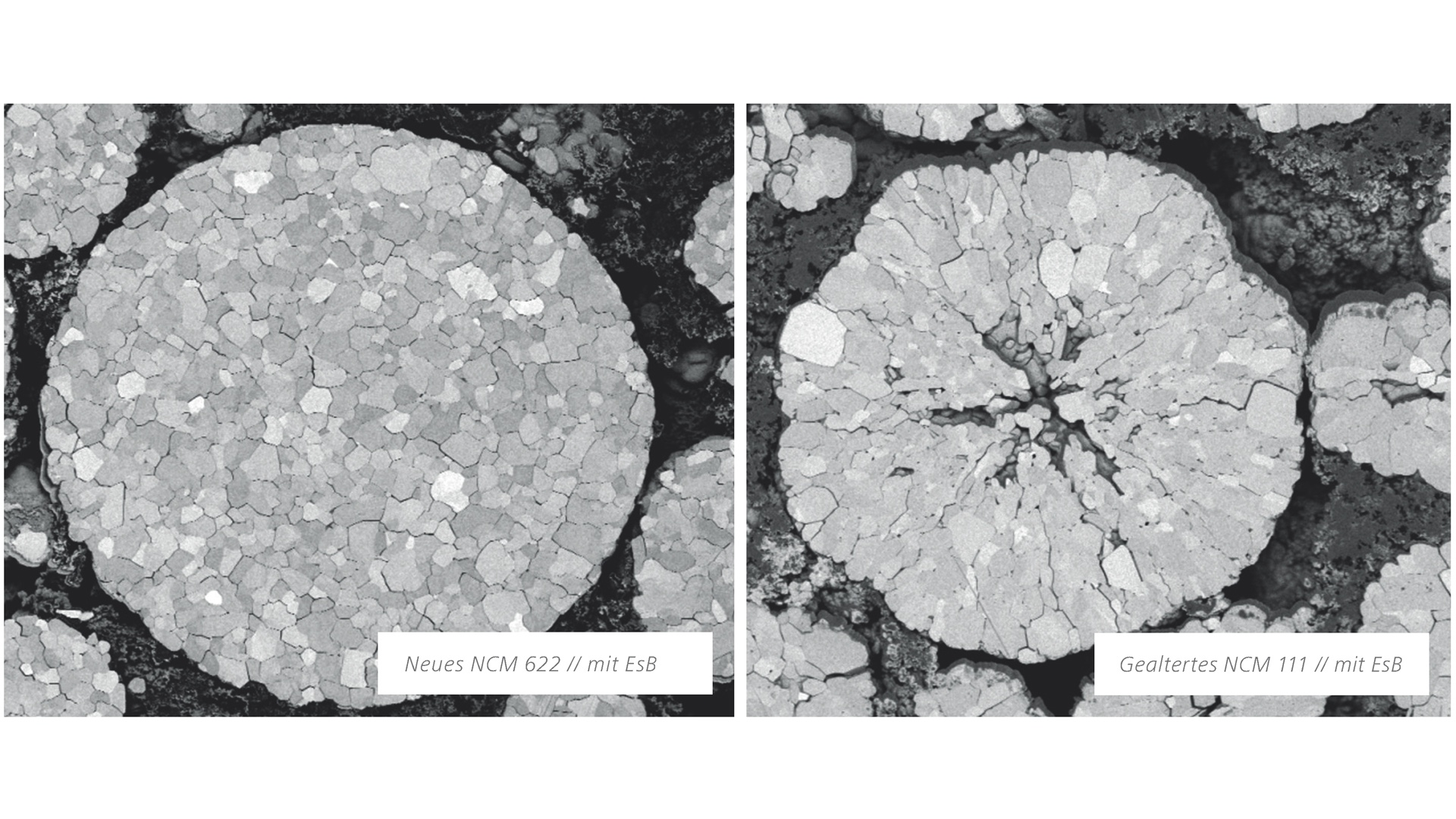

The focus here is on the materials nickel, manganese and cobalt. This type of battery is called Li-NMC, LNMC, NMC or NCM. The designations NCM 111, 523 etc. indicate the respective composition ratio of nickel, cobalt and manganese. The example shows the cross-section of a lithium-ion battery with a cathode made of NCM 111. The charging and discharging of lithium-ion batteries leads to changes in the microstructure. Cracks occur, which increase the surface area of the SEI layer. This reduces the battery performance.​

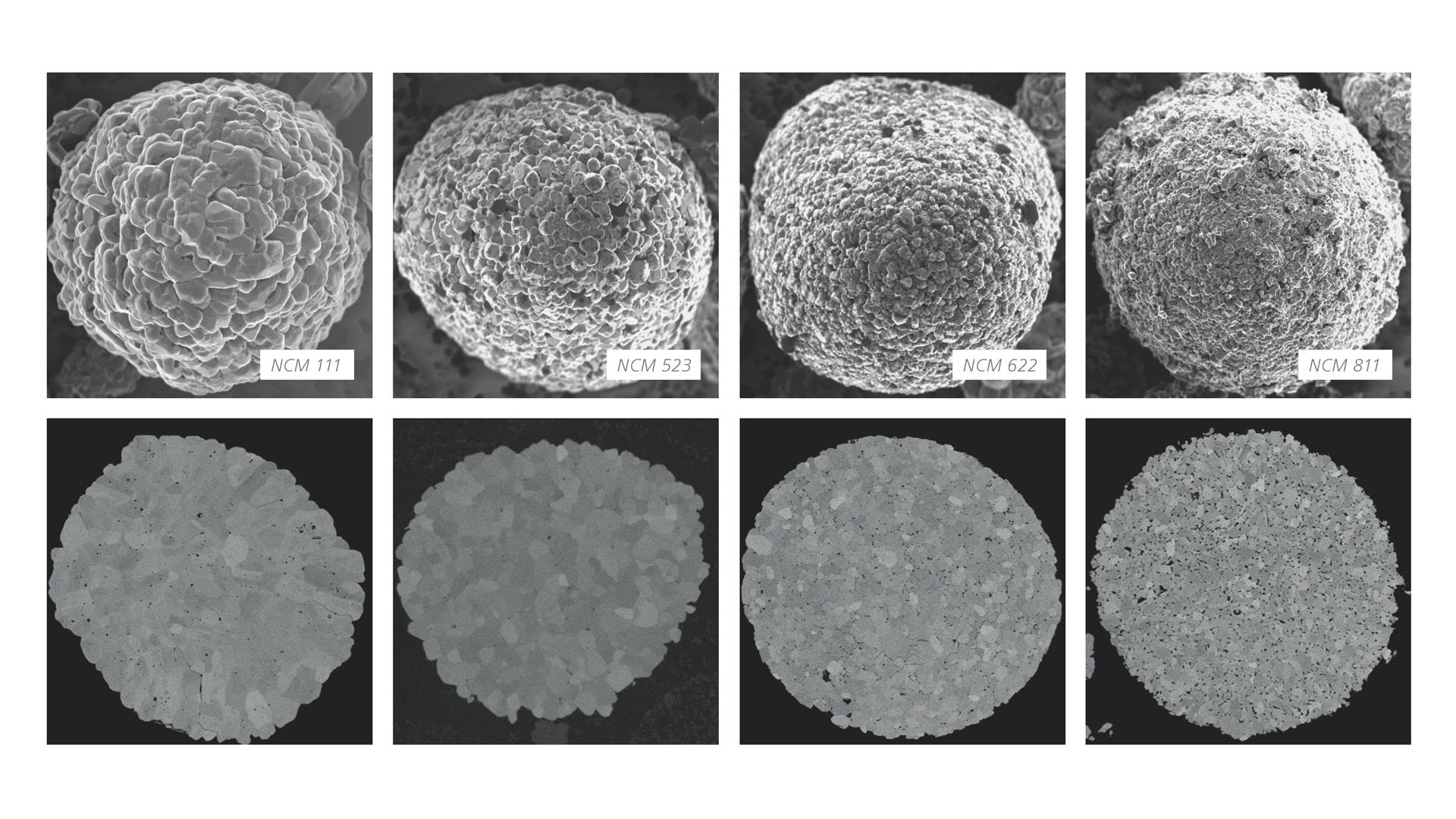

Using an electron microscope, we can see that there are structural differences between the NCM variants when other production factors are fundamentally accounted for. When seen in cross section, the primary particles of 811 are much smaller than those of 532 or 111. This excellent material contrast of the sub-grain structure is visible only with a feature unique to ZEISS electron microscopes – the Energy Selective Backscatter (EsB) detector.​

A better composition of the electrolytes can lead to less physical wear of the cathode materials. With better chemical processes, cathode materials with larger grain particles can be produced.​

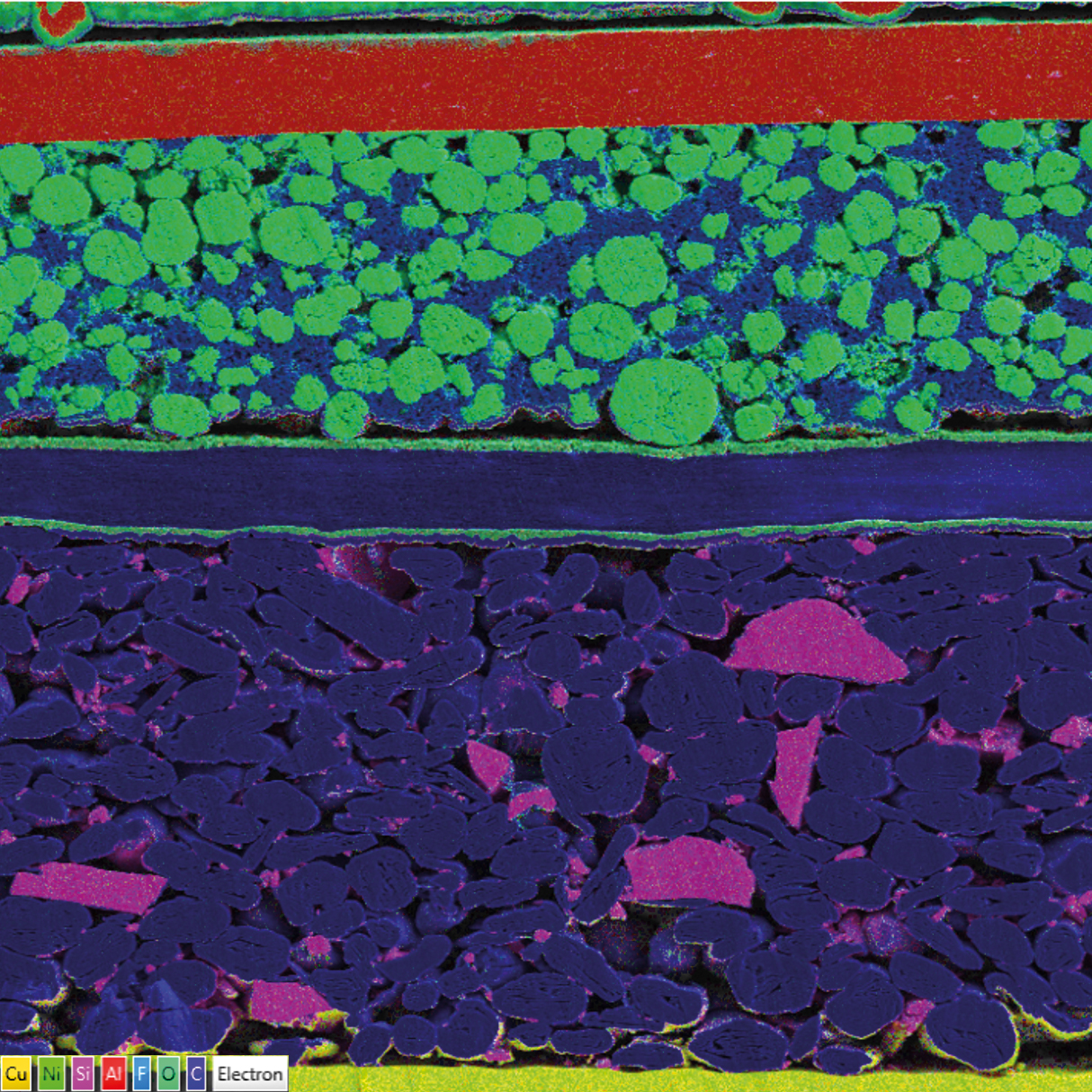

Cross section of full-stack lithium ion battery cell: EDS mapping (O, Al, F, Si, and C). It is possible to use energy dispersive spectroscopy (EDS) to confirm the elemental composition of objects under investigation in the microscope. ​

This image confirms high levels of residual fluorine on the cathode side, as expected in an aged sample. Fluorine is found in the electrolyte and joins an SEI layer that increases with aging. The boehmite separator shows aluminum and oxygen signals, as expected. Carbon is used as a conductive agent in the binder. As the polymer of the separator is a hydrocarbon, this means carbon can be seen throughout the battery.​

Grain size and distribution are directly related to the material characteristics. Kvantifikujte krystalografickou strukturu vašich materiálů podle mezinárodních norem. You can characterize your samples using three evaluation methods:​

• Planimetric method for the automatic reconstruction of grain boundaries​
• Intercept method with a variety of different measuring grids for interactive detection and counting of grain boundary intersections​
• Comparison method for manual image evaluation with comparison diagrams​

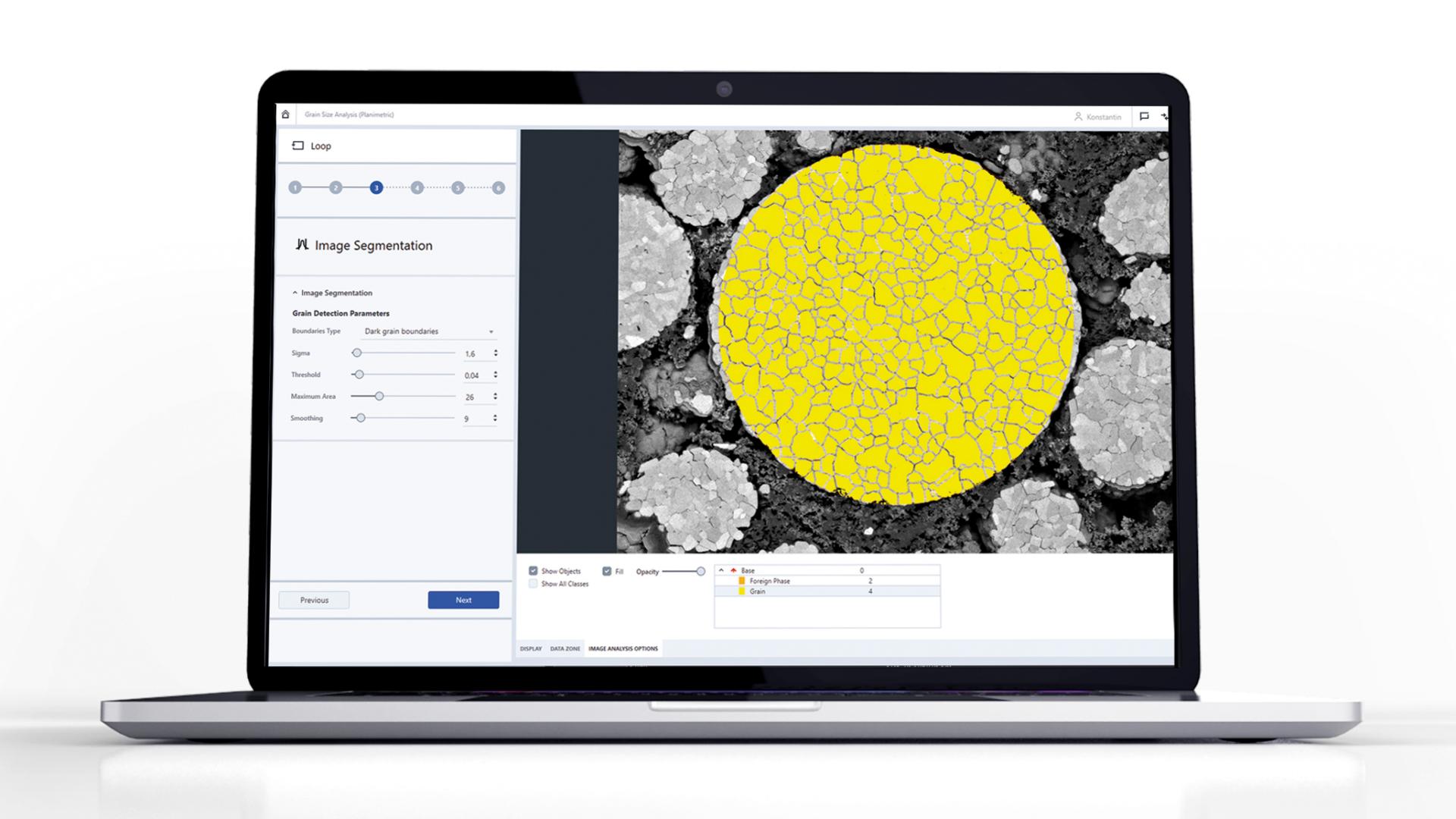

ZEISS ZEN Intellesis software uses machine learning algorithms and a pre-trained model to recognize the foreign phase and grain boundaries. One click and you can select the instance segmentation model and the class to be segmented.​

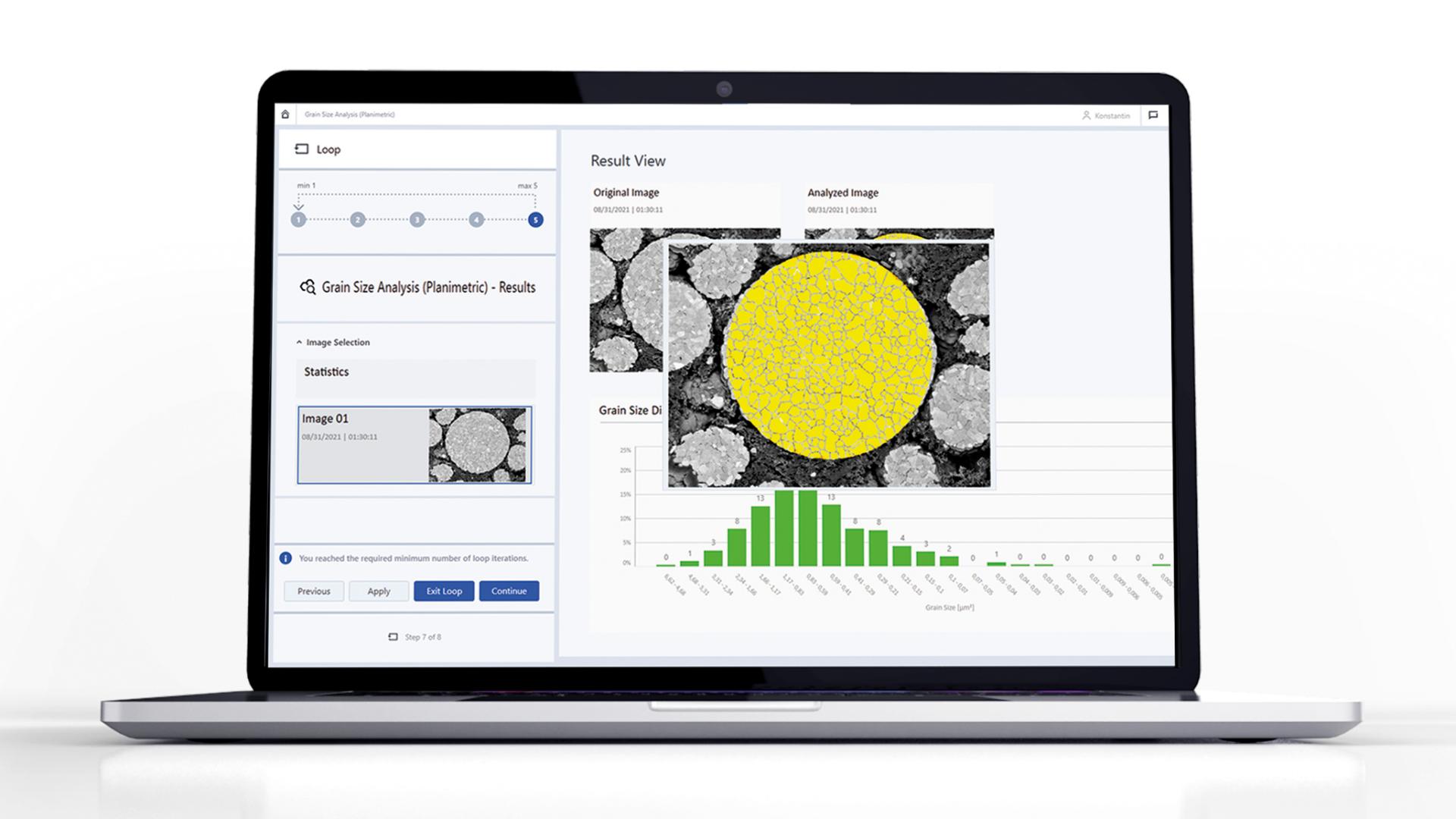

The results view contains all images and results of the analysis performed. The original images are also shown. You can view all the results of the analysis in a clear table view as well as in a bar chart for the grain size distribution.​
