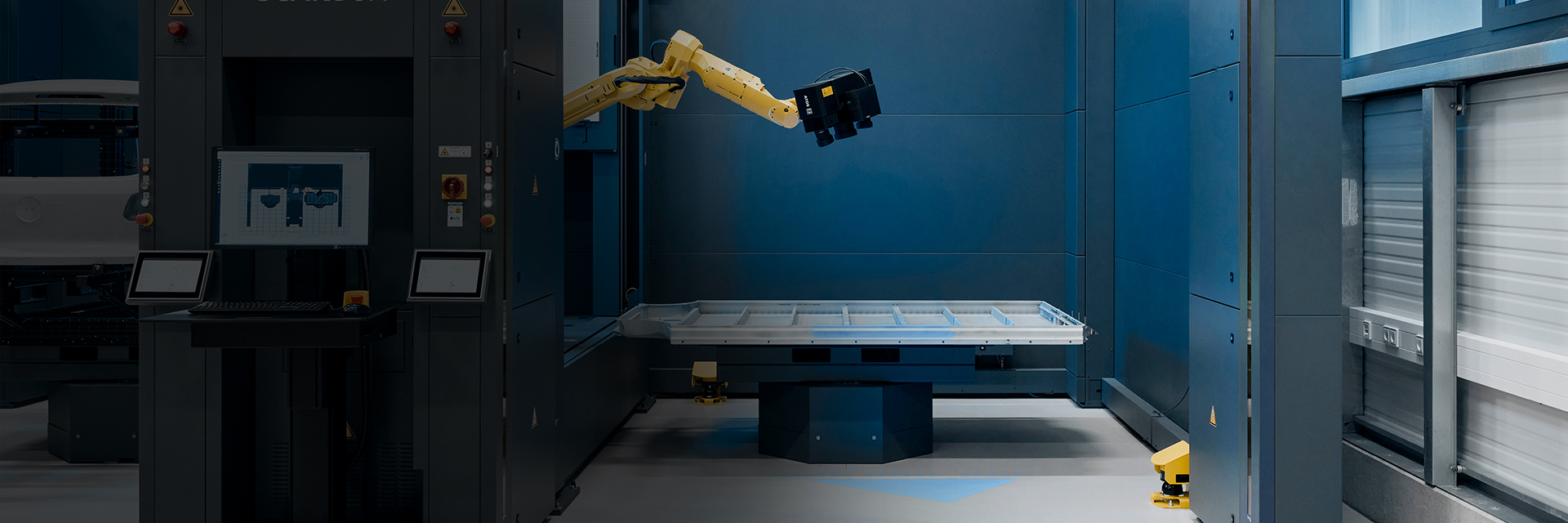

Zajištění kvality pro bateriové vany
Spolehlivost komponentů díky kontrole a údajům o kvalitěKomplexní proces kontroly zvyšuje kvalitu bateriových van
Zajištění správného tvaru a integrace
Bateriová vana plně integrovaná do karoserie elektrického vozidla musí být mechanicky stabilní a musí dokonale zapadat do svého okolí. Je vyrobena ze složitě svařované hliníkové konstrukce, obsahuje všechny bateriové články, konektory, řídicí jednotky a bateriové bloky, které mají četné bateriové moduly.
Neporušenost bateriové vany a její konstrukce musí být během výroby kontrolována v několika intervalech, aby byla zajištěna kvalita a bezpečnost. To zahrnuje řadu metod, jako je celoplošná kontrola a řada technologií ZEISS, včetně souřadnicových měřicích strojů a rentgenových systémů.

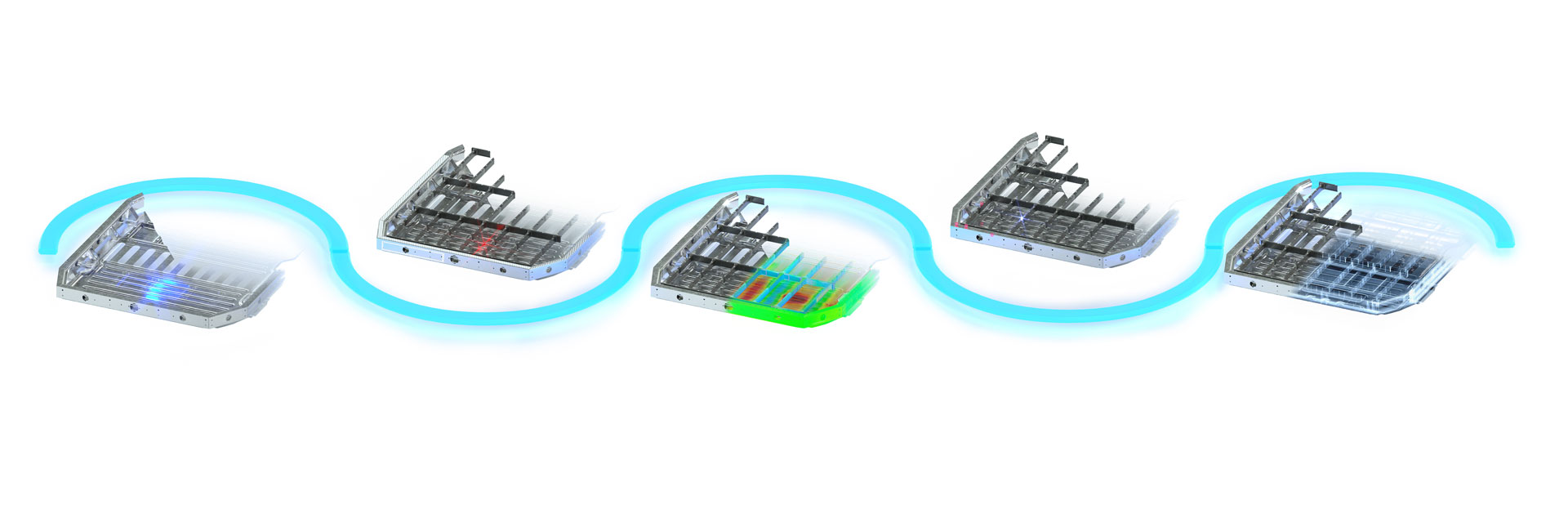

Řešení ZEISS v každém kroku
Blue Line pro kvalitu bateriové vany
![Řešení ZEISS v každém kroku]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-blueline.jpg/_jcr_content/renditions/original.image_file.100.33.file/zeiss-battery-tray-blueline.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-blueline.jpg/_jcr_content/renditions/original.image_file.360.120.file/zeiss-battery-tray-blueline.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-blueline.jpg/_jcr_content/renditions/original.image_file.768.256.file/zeiss-battery-tray-blueline.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-blueline.jpg/_jcr_content/renditions/original.image_file.1024.341.file/zeiss-battery-tray-blueline.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-blueline.jpg/_jcr_content/renditions/original.image_file.1280.427.file/zeiss-battery-tray-blueline.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-blueline.jpg/_jcr_content/renditions/original.image_file.1440.480.file/zeiss-battery-tray-blueline.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-blueline.jpg/_jcr_content/renditions/original./zeiss-battery-tray-blueline.jpg"} "Řešení ZEISS v každém kroku")

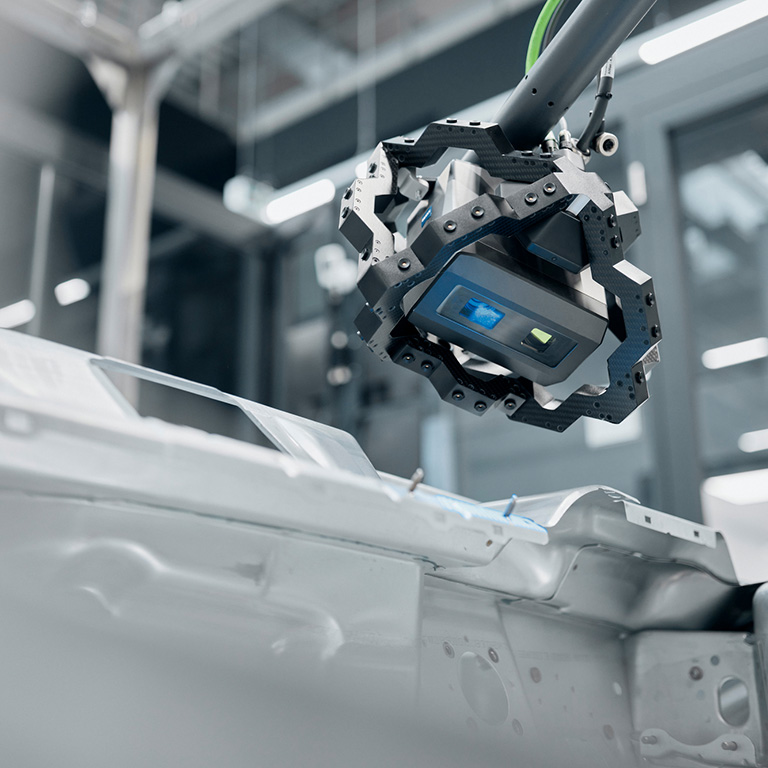

![Brána kvality 1: Kontrola procesu spojování]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/05-aicell-trace-battery-tray-768x768.jpg/_jcr_content/renditions/original.image_file.100.100.file/05-aicell-trace-battery-tray-768x768.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/05-aicell-trace-battery-tray-768x768.jpg/_jcr_content/renditions/original.image_file.360.360.file/05-aicell-trace-battery-tray-768x768.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/05-aicell-trace-battery-tray-768x768.jpg/_jcr_content/renditions/original./05-aicell-trace-battery-tray-768x768.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/05-aicell-trace-battery-tray-768x768.jpg/_jcr_content/renditions/original./05-aicell-trace-battery-tray-768x768.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/05-aicell-trace-battery-tray-768x768.jpg/_jcr_content/renditions/original./05-aicell-trace-battery-tray-768x768.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/05-aicell-trace-battery-tray-768x768.jpg/_jcr_content/renditions/original./05-aicell-trace-battery-tray-768x768.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/05-aicell-trace-battery-tray-768x768.jpg/_jcr_content/renditions/original./05-aicell-trace-battery-tray-768x768.jpg"} "Brána kvality 1: Kontrola procesu spojování")

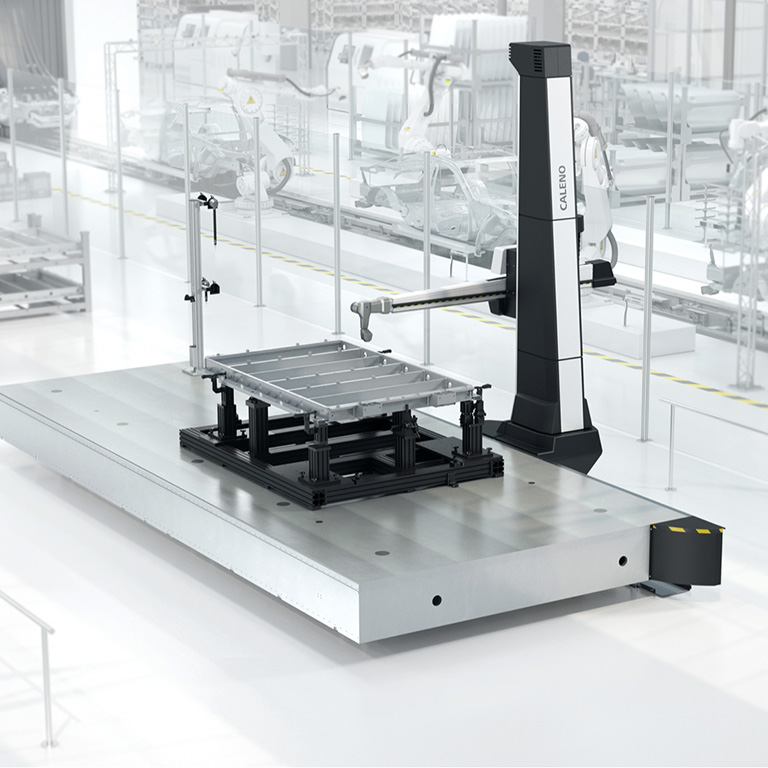

![Brána kvality 2: Kontrola procesu frézování a vrtání]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/06-milling-drilling-process-control-768.jpg/_jcr_content/renditions/original.image_file.100.100.file/06-milling-drilling-process-control-768.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/06-milling-drilling-process-control-768.jpg/_jcr_content/renditions/original.image_file.360.360.file/06-milling-drilling-process-control-768.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/06-milling-drilling-process-control-768.jpg/_jcr_content/renditions/original./06-milling-drilling-process-control-768.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/06-milling-drilling-process-control-768.jpg/_jcr_content/renditions/original./06-milling-drilling-process-control-768.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/06-milling-drilling-process-control-768.jpg/_jcr_content/renditions/original./06-milling-drilling-process-control-768.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/06-milling-drilling-process-control-768.jpg/_jcr_content/renditions/original./06-milling-drilling-process-control-768.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/06-milling-drilling-process-control-768.jpg/_jcr_content/renditions/original./06-milling-drilling-process-control-768.jpg"} "Brána kvality 2: Kontrola procesu frézování a vrtání")

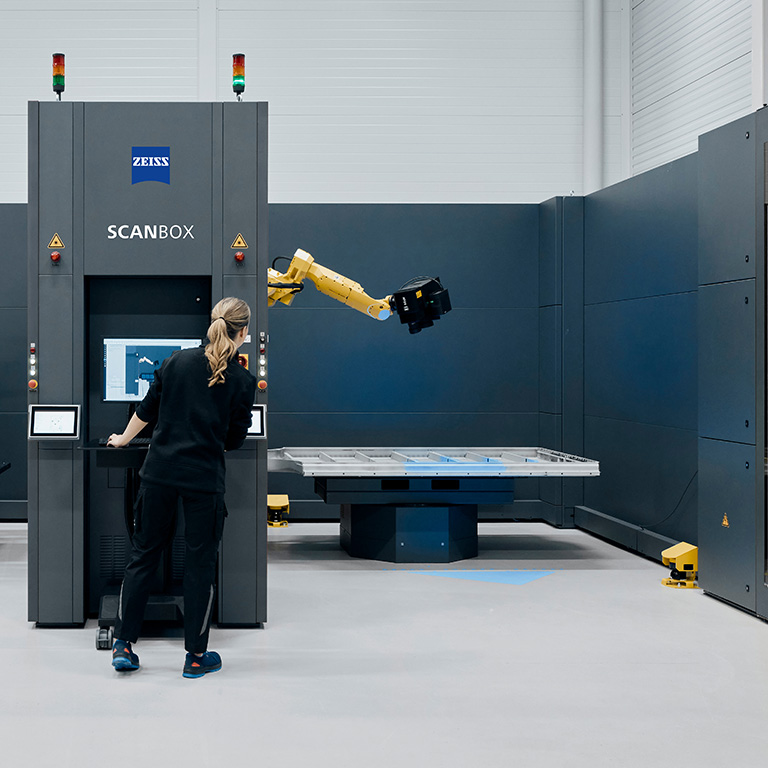

![Brána kvality 3: Celoplošná kontrola]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/07-scanbox-full-field-768x768.jpg/_jcr_content/renditions/original.image_file.100.100.file/07-scanbox-full-field-768x768.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/07-scanbox-full-field-768x768.jpg/_jcr_content/renditions/original.image_file.360.360.file/07-scanbox-full-field-768x768.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/07-scanbox-full-field-768x768.jpg/_jcr_content/renditions/original./07-scanbox-full-field-768x768.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/07-scanbox-full-field-768x768.jpg/_jcr_content/renditions/original./07-scanbox-full-field-768x768.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/07-scanbox-full-field-768x768.jpg/_jcr_content/renditions/original./07-scanbox-full-field-768x768.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/07-scanbox-full-field-768x768.jpg/_jcr_content/renditions/original./07-scanbox-full-field-768x768.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/07-scanbox-full-field-768x768.jpg/_jcr_content/renditions/original./07-scanbox-full-field-768x768.jpg"} "Brána kvality 3: Celoplošná kontrola")

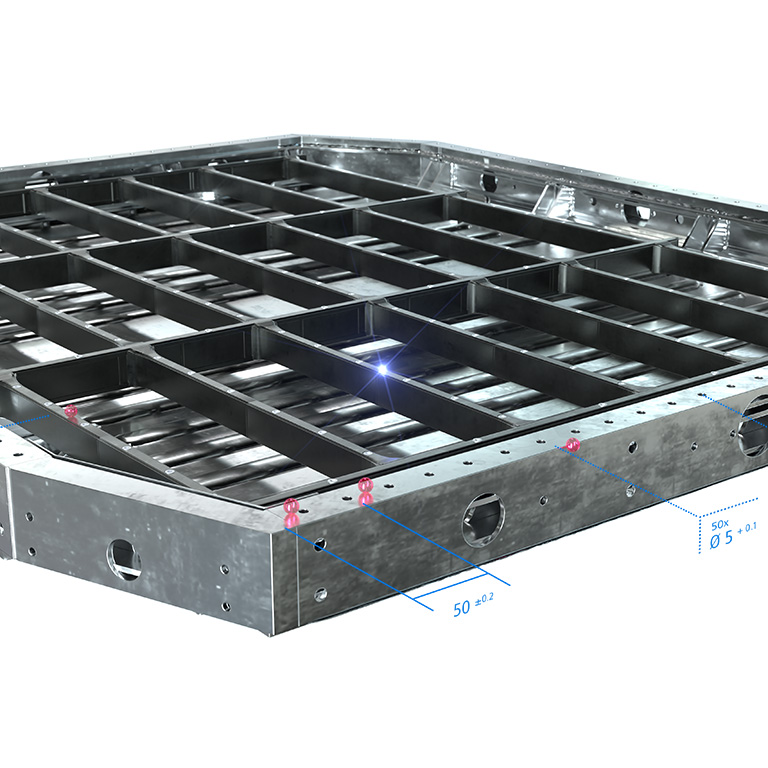

![Brána kvality 4: Kontrola kritických funkcí]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/batterytray-qg4-markers.jpg/_jcr_content/renditions/original.image_file.100.100.file/batterytray-qg4-markers.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/batterytray-qg4-markers.jpg/_jcr_content/renditions/original.image_file.360.360.file/batterytray-qg4-markers.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/batterytray-qg4-markers.jpg/_jcr_content/renditions/original./batterytray-qg4-markers.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/batterytray-qg4-markers.jpg/_jcr_content/renditions/original./batterytray-qg4-markers.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/batterytray-qg4-markers.jpg/_jcr_content/renditions/original./batterytray-qg4-markers.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/batterytray-qg4-markers.jpg/_jcr_content/renditions/original./batterytray-qg4-markers.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/batterytray-qg4-markers.jpg/_jcr_content/renditions/original./batterytray-qg4-markers.jpg"} "Brána kvality 4: Kontrola kritických funkcí")
Kompletní kontrola geometrie s produkty ZEISS
Optické měřicí stroje ZEISS umožňují celoplošné vysoce přesné měření bateriové vany pomocí pruhové projekce. Digitalizují díl z různých úhlů pohledu s vysokou rychlostí, přesností a vysokým rozlišením. Senzory generují zcela korelačně nezávislá a sledovatelná měřená data.
![Optické měření pomocí 3D měřicího stroje]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/11-optical-measurements-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/11-optical-measurements-600px.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/11-optical-measurements-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/11-optical-measurements-600px.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/11-optical-measurements-600px.jpg/_jcr_content/renditions/original./11-optical-measurements-600px.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/11-optical-measurements-600px.jpg/_jcr_content/renditions/original./11-optical-measurements-600px.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/11-optical-measurements-600px.jpg/_jcr_content/renditions/original./11-optical-measurements-600px.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/11-optical-measurements-600px.jpg/_jcr_content/renditions/original./11-optical-measurements-600px.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/11-optical-measurements-600px.jpg/_jcr_content/renditions/original./11-optical-measurements-600px.jpg"} "Optické měření pomocí 3D měřicího stroje")
Optické měření pomocí 3D měřicího stroje
Uživatelé získávají miliony 3D souřadnic rozložených po celé ploše, které lze porovnat s CAD modelem a odhalit tak odchylky a identifikovat vady, jako jsou deformace. Software využívá CAD data a kontrolní plány pro plně automatizované vytvoření poloh senzorů a drah robotů potřebných pro sběr dat.
![Digitální dvojče pro kontrolu procesu a kvality]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/12-digital-twin-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/12-digital-twin-600px.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/12-digital-twin-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/12-digital-twin-600px.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/12-digital-twin-600px.jpg/_jcr_content/renditions/original./12-digital-twin-600px.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/12-digital-twin-600px.jpg/_jcr_content/renditions/original./12-digital-twin-600px.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/12-digital-twin-600px.jpg/_jcr_content/renditions/original./12-digital-twin-600px.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/12-digital-twin-600px.jpg/_jcr_content/renditions/original./12-digital-twin-600px.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/12-digital-twin-600px.jpg/_jcr_content/renditions/original./12-digital-twin-600px.jpg"} "Digitální dvojče pro kontrolu procesu a kvality")

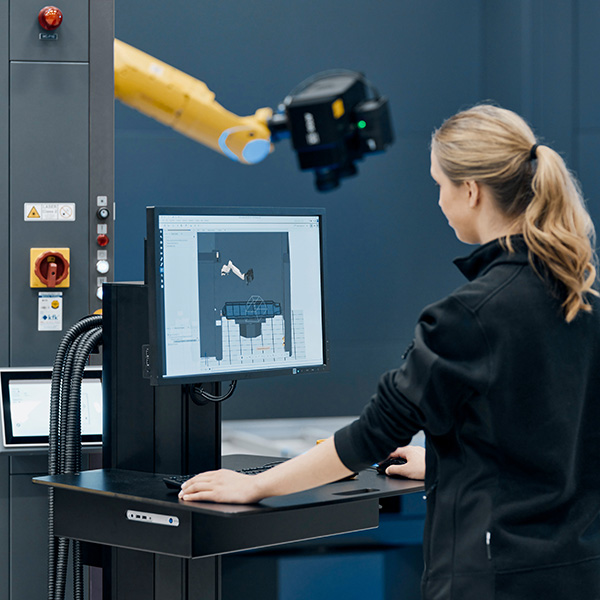

Digitální dvojče pro kontrolu procesu a kvality
Výsledkem měření je geometrické digitální dvojče, které zobrazuje skutečnou geometrii bateriové vany. Z 3D mračna bodů lze extrahovat procesní kontrolní charakteristiky a vyhodnotit je v analýze trendu: Na základě celoplošného měření je tak možné včas odhalit změny ve výrobním procesu.
![Odchylky mezi digitálním dvojčetem a CAD daty]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-twin-and-cad.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-battery-tray-digital-twin-and-cad.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-twin-and-cad.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-battery-tray-digital-twin-and-cad.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-twin-and-cad.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-battery-tray-digital-twin-and-cad.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-twin-and-cad.jpg/_jcr_content/renditions/original./zeiss-battery-tray-digital-twin-and-cad.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-twin-and-cad.jpg/_jcr_content/renditions/original./zeiss-battery-tray-digital-twin-and-cad.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-twin-and-cad.jpg/_jcr_content/renditions/original./zeiss-battery-tray-digital-twin-and-cad.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-twin-and-cad.jpg/_jcr_content/renditions/original./zeiss-battery-tray-digital-twin-and-cad.jpg"} "Odchylky mezi digitálním dvojčetem a CAD daty")

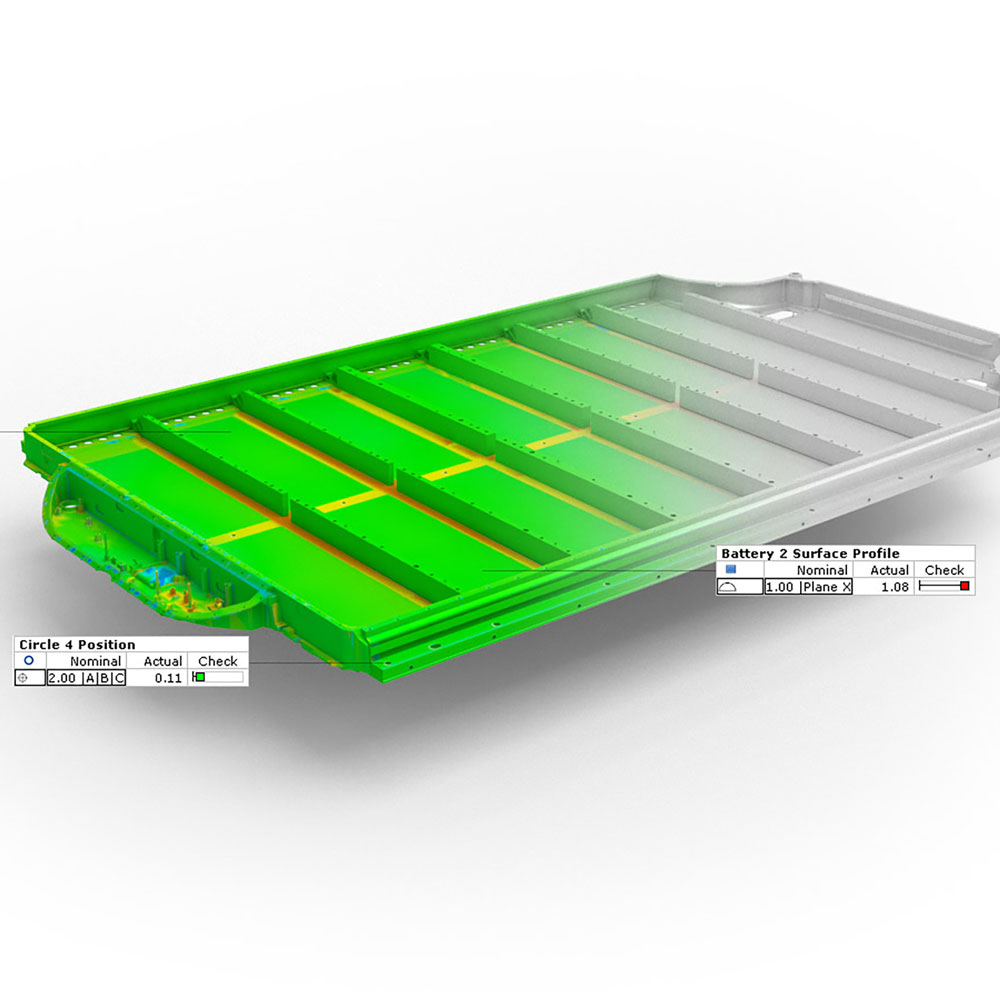

Odchylky mezi digitálním dvojčetem a CAD daty
![Digitální montáž]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-assembly.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-battery-tray-digital-assembly.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-assembly.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-battery-tray-digital-assembly.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-assembly.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-battery-tray-digital-assembly.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-assembly.jpg/_jcr_content/renditions/original./zeiss-battery-tray-digital-assembly.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-assembly.jpg/_jcr_content/renditions/original./zeiss-battery-tray-digital-assembly.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-assembly.jpg/_jcr_content/renditions/original./zeiss-battery-tray-digital-assembly.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/industries/automotive/nev/battery/battery-tray/zeiss-battery-tray-digital-assembly.jpg/_jcr_content/renditions/original./zeiss-battery-tray-digital-assembly.jpg"} "Digitální montáž")

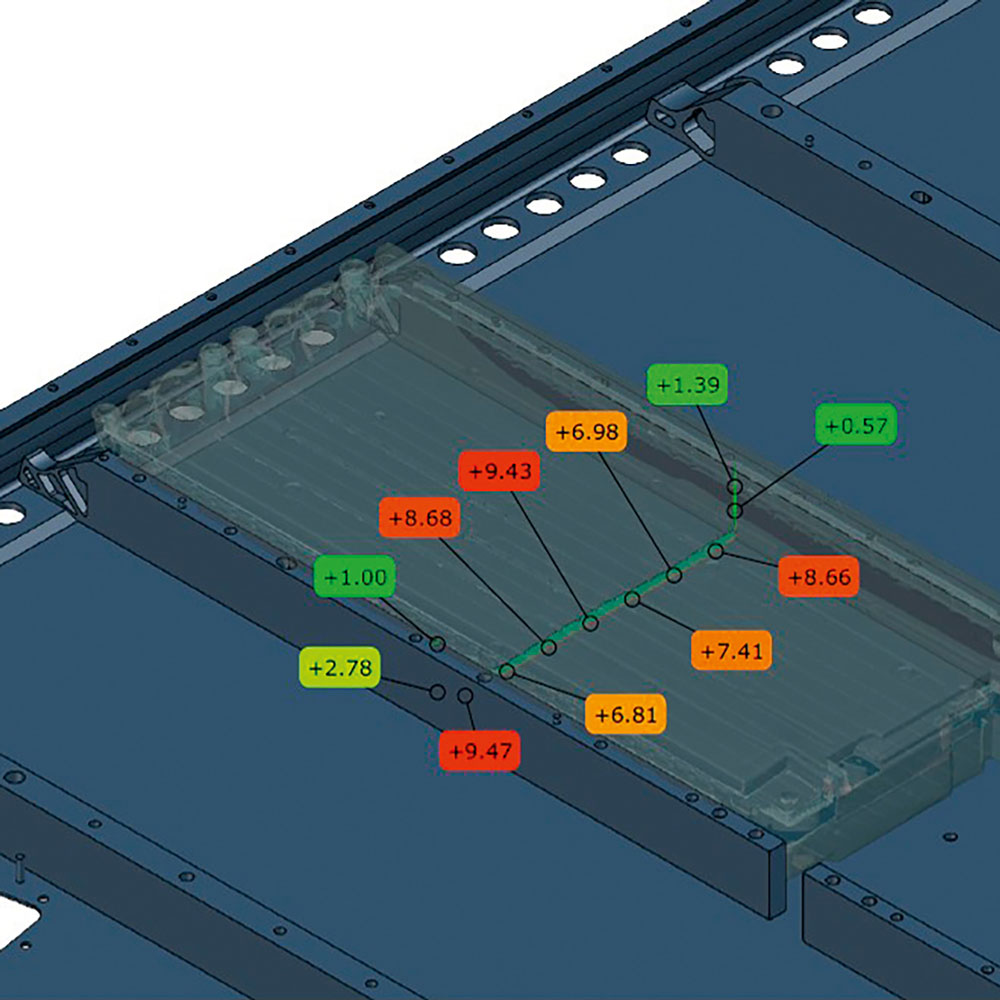

Digitální montáž
Digitální montáž pomáhá posoudit interakci mezi bateriovými moduly a bateriovou vanou, umožňuje simulaci a optimalizaci montážních situací a poskytuje podrobné informace o změnách velikosti mezer způsobených tepelnou deformací modulů. Odchylky povrchu modulu od vany se používají k výpočtu objemu tepelně vodivé pasty pro jednotlivé bateriové přihrádky.
Další poznatky o zajišťování kvality bateriových van
