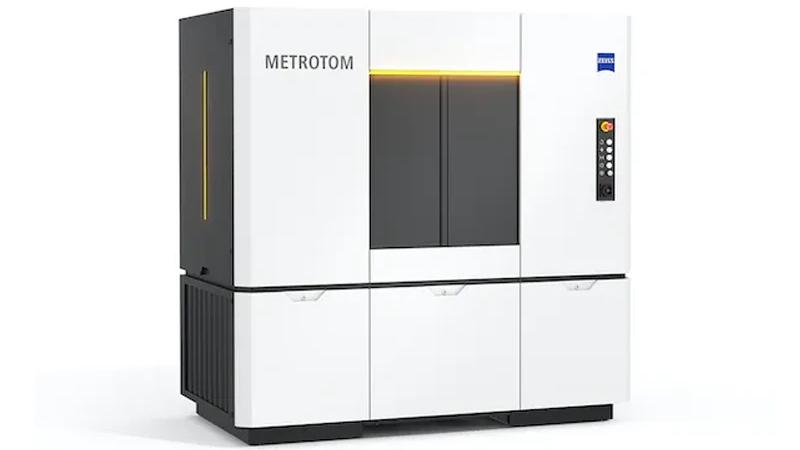

METROTOM 6 scout

The powerhouse of resolution for CT inspection and metrology

ZEISS METROTOM 6 scout digitalizuje složité díly včetně vnitřní geometrie do nejmenších detailů. The result is a complete 3D image for GD&T analysis or target/actual comparisons. The CT metrology system is an excellent choice for digitizing small plastic parts.

Velmi vysoké rozlišení
Vysoká úroveň přesnosti
Automatické polohování objektu
Software vše v jednom

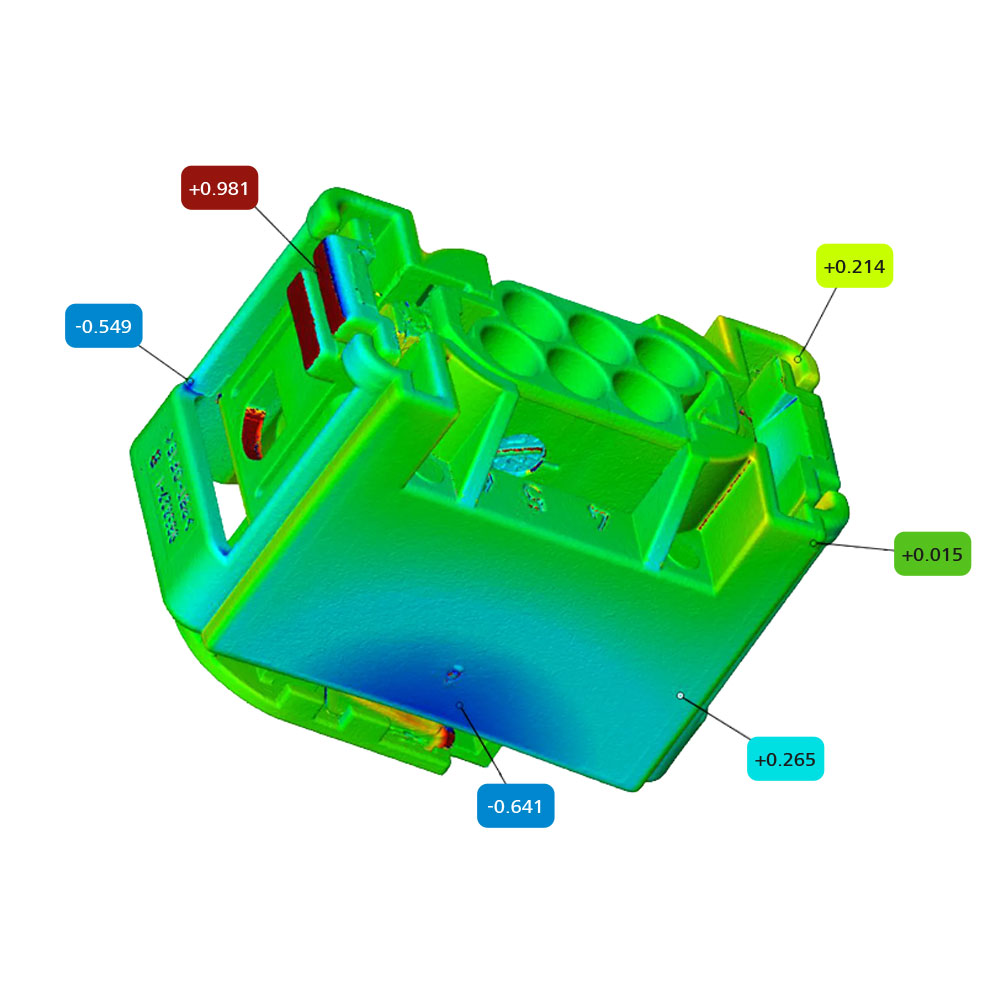

High-resolution measurements of small plastic parts

ZEISS Metrotom 6 scout is the perfect solution for non-destructive inspection and 3D metrology of components. Advanced measurement performance and seamless workflow ensure maximum reliability and precision in defect detection.

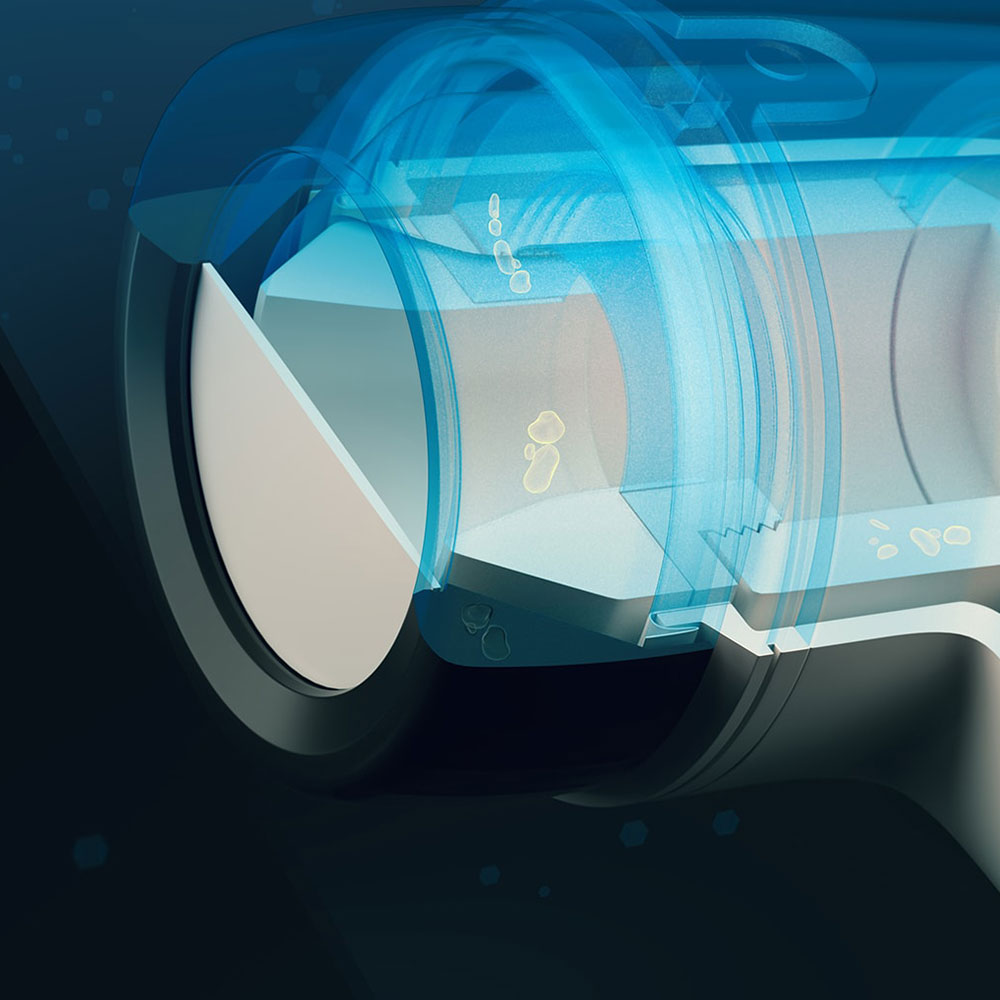

Reveal what's hidden with other technologies

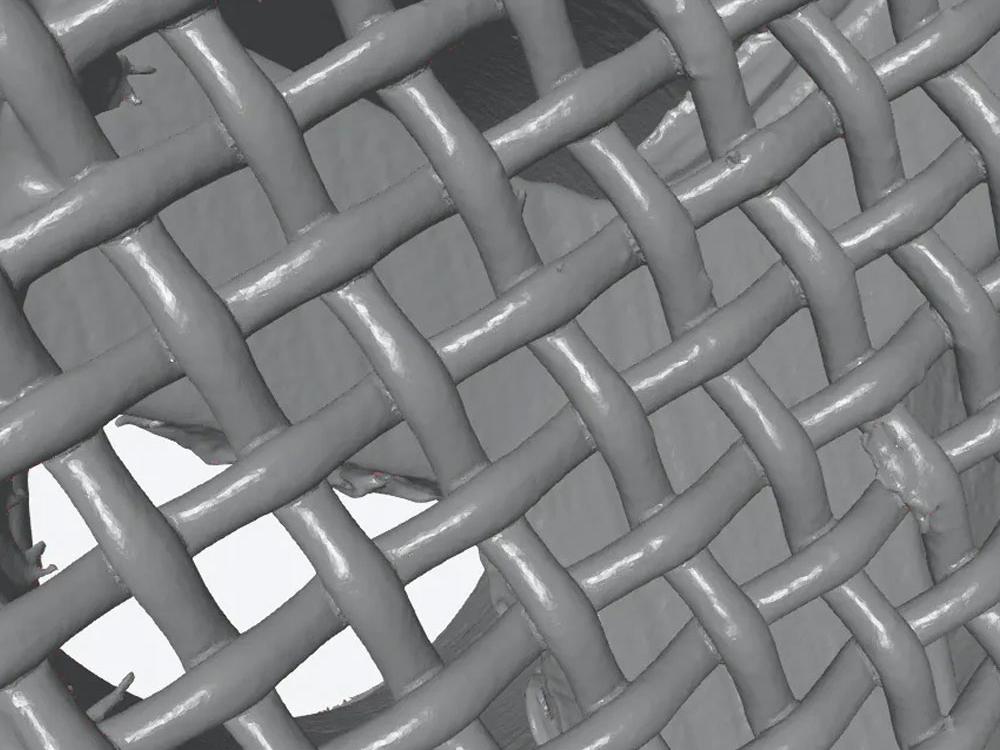

Rozlišení

When digitizing a part, ZEISS METROTOM 6 scout achieves outstanding sharpness of detail: Firstly, because it uses a high-resolution 3k X-ray detector to acquire the measurement data, and secondly, because each part is measured in the best possible measuring position and therefore always at the highest possible resolution. The result can be seen in the image: On the left, measurement data generated with the ZEISS METROTOM 6 scout and on the right, the usual standard.

Zaručuje vysokou přesnost

Přesnost

The ZEISS METROTOM 6 scout uses mathematical intelligence to generate its precise 3D measurement data. During the entire measuring process, it combines perfectly interlinked algorithms with digital modeling of the measuring room. It also offers optimized mechanical stability for all components relevant to the measurement. The bottom line: Based on the measuring results, you can evaluate the quality of a part in a truly reliable and highly accurate way and conduct further analysis.

Centers parts automatically

A 5-axis kinematics system with an integrated centering table optimally positions the part in the measuring volume. Simply place it in the machine's measuring room - the rest is done by the software.

Software vše v jednom

Jedno řešení pro všechny kroky procesu

One single software, ZEISS INSPECT X-Ray, combines the control of the system and the metrological evaluation of the data. As a result, no additional software or intermediate steps are required.

This ensures a seamless process and significantly simplifies the workflow from raw data acquisition to inspection and measurement reporting.

Zjistěte více
Intuitive and powerful

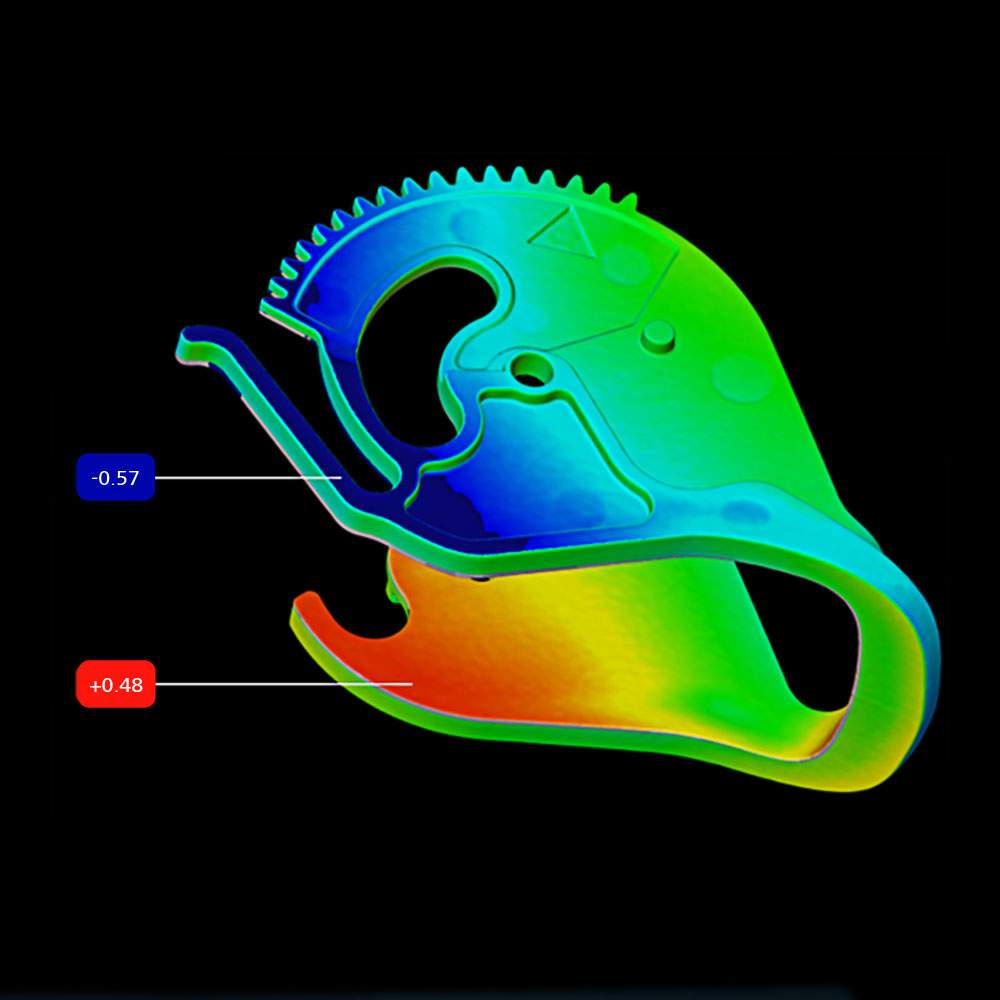

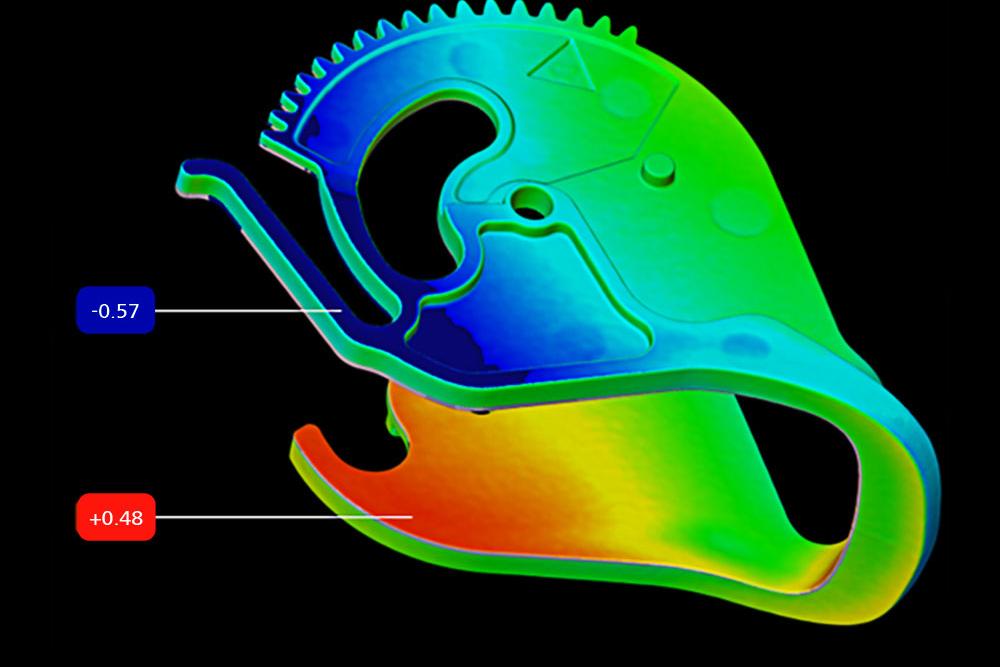

ZEISS INSPECT X-Ray software provides full 3D analysis of CT data to evaluate part quality and optimize your manufacturing process. Individual sectional images enable you to view the volume layer by layer, revealing even the smallest details and defects. Detected defects can be analyzed in detail and automatically evaluated according to various criteria. In addition, you can load volume data from multiple components into a project, perform a trend analysis, and compare the analysis to CAD data. All measurement results are documented and summarized in a well-structured report. Intuitive operation and high performance: Analyzing CT data has never been easier!

Zjistěte více

ZEISS METROTOM

ZEISS METROTOM 6 scout

ZEISS METROTOM 6 scout excels in ultra-high-resolution scanning of plastic parts thanks to a 3k X-ray detector.

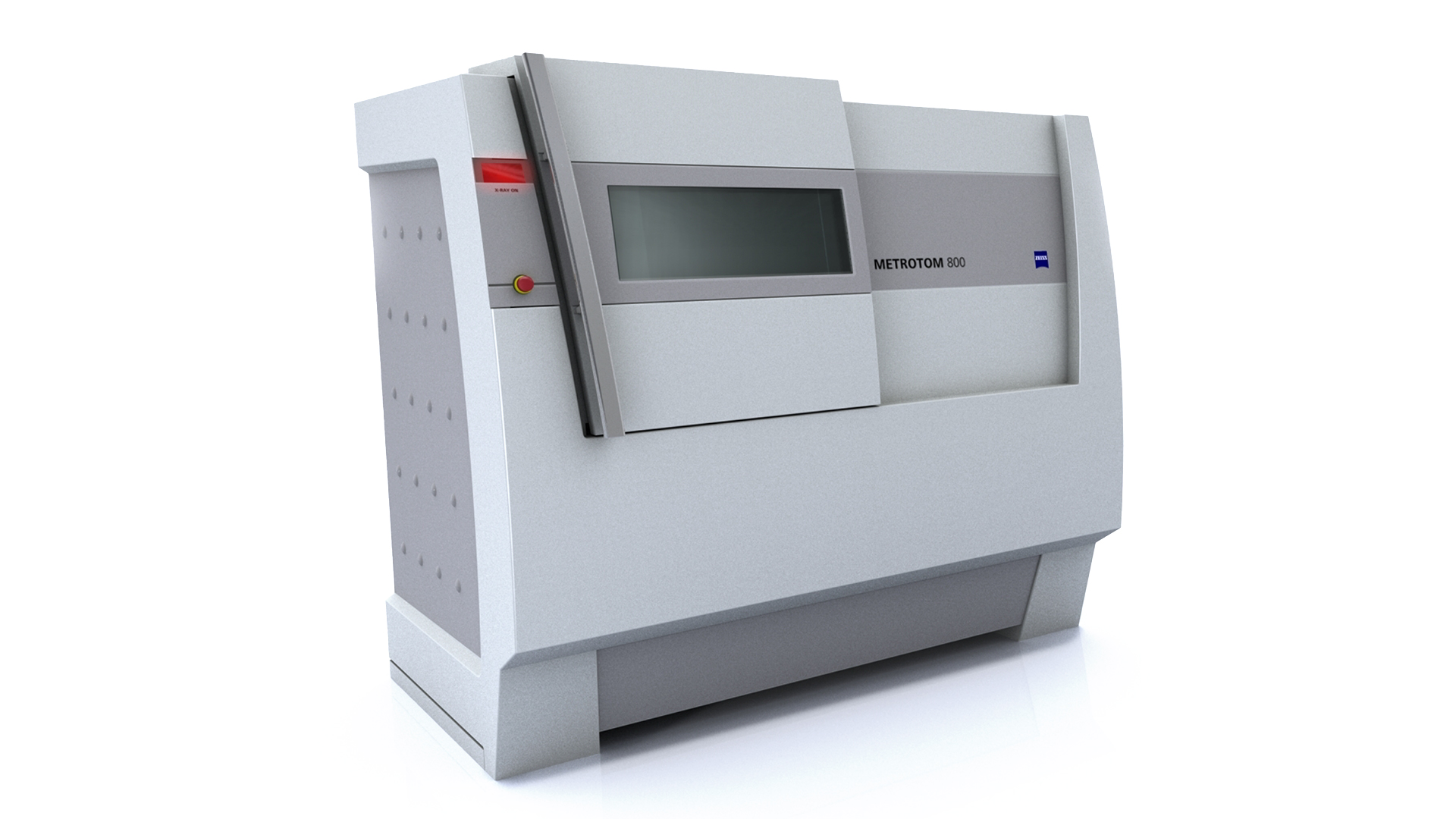

ZEISS METROTOM 800 130 kV

This metrology CT boasts a small footprint and is suitable for measuring medium-sized plastic parts with high accuracy.

Technické údaje

Vlastnosti

Zdroj rentgenu	225 kV
Detektor rentgenu	Rozlišení: 3008 x 2512 pixelů
Measuring area	d: 240 mm h: 400 mm
Velikost voxelu	2 µm - 80 µm
Rozměry	H. 2210 mm W. 2200 mm D. 1230 mm
Hmotnost	4800 kg
Oblast použití	First article inspection, tool correction, inspection during ongoing production
Inspection features	Internal structures, wall thickness, material defects, pores, and shrinkage cavities
Measuring tasks	GD&T analysis, nominal-actual comparison, assembly analysis
