Vysokorychlostní skener pro malé až středně velké složité díly v leteckém a energetickém průmyslu umožňuje přesné snímání nejmenších detailů a geometrie hran.
![Přesné informace o kvalitě nejmenších detailů]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg/_jcr_content/renditions/original.image_file.100.56.0,219,1000,782.file/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg/_jcr_content/renditions/original.image_file.360.203.0,219,1000,782.file/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg/_jcr_content/renditions/original.image_file.768.432.0,219,1000,782.file/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg/_jcr_content/renditions/original.image_file.1000.563.0,219,1000,782.file/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg/_jcr_content/renditions/original.image_file.1000.563.0,219,1000,782.file/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg/_jcr_content/renditions/original.image_file.1000.563.0,219,1000,782.file/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg/_jcr_content/renditions/original.image_file.1000.563.0,219,1000,782.file/zeiss_atos5-for-airfoil_automated-scanning_precise-quality_1000x1000.jpg"} "Přesné informace o kvalitě nejmenších detailů")
Systém ATOS 5 for Airfoil, vyvinutý pro průmysl plynových turbín, s optimalizovanou pracovní vzdáleností a měřicími plochami od 100 x 70 mm², poskytuje vysoce přesná 3D data nejmenších detailů v krátkém čase měření.
Díky optimalizované pracovní vzdálenosti pro malé měřené plochy a extrémně vysoké stabilitě poskytuje ATOS 5 for Airfoils vysoce přesná data pro manuální i automatizované aplikace. Od lopatek ventilátorů přes lopatky turbín až po celá lopatková kola (NGV, OGV, IGV) a hnací ústrojí: Celoplošná 3D měřená data umožňují spolehlivou kontrolu kvality, vizualizaci skrytých chyb a tím urychlují procesy výroby, údržby a oprav.
ATOS 5 for Airfoil měří podrobné informace o kvalitě nových výrobků nebo komponentů z údržby či oprav při výrazně kratší době měření. Výhodou ATOS 5 for Airfoil je rychlost měření. 3D skenování trvá přibližně jednu hodinu pro lamely a méně než 20 minut pro lopatky ventilátoru, což je výsledek sběru dat za méně než pětinu sekundy.
ATOS 5 for Airfoil poskytuje vysoce přesná data v celém poli pro komplexní kontrolu procesu a kvality lopatek ventilátorů, lopatek turbín, lamel a různých statorových lopatek (NGV, OGV, IGV). Kvalita dat poskytovaných senzorem splňuje vysoké požadavky průmyslu. Pro měření lopatek turbín je důležitá zejména přesnost, a tedy rozlišení na hranách.
![Srovnání povrchů]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_surface-comparison_600x600.jpg"} "Srovnání povrchů")

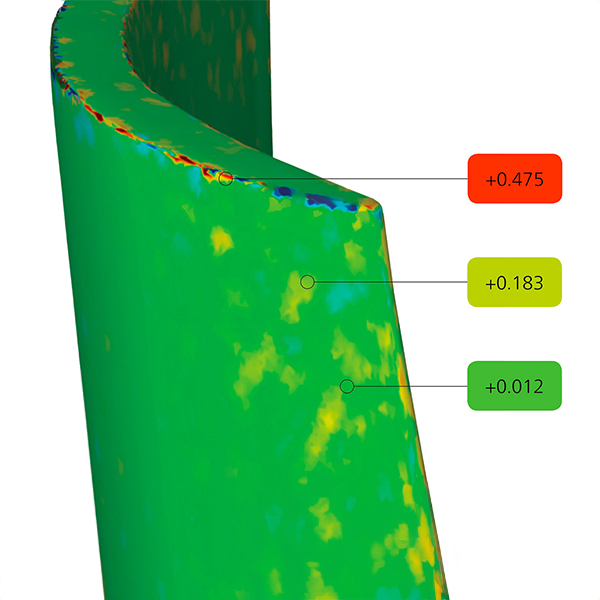

3D zobrazení odchylek povrchu vůči CAD nebo předlohové síti je u technologie ZEISS standardem. Srovnání povrchů se obvykle používá při vývoji nových výrobků k hledání problémů ve výrobním procesu. Srovnání lze provádět ve více zarovnáních včetně nejlepší shody s CAD nebo RPS. Tento výkonný nástroj odhalí podrobnosti o produktu, které tradiční nástroje nemohou poskytnout.
![Okrajové body a okrajové kružnice]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_edge-points_600x600.jpg"} "Okrajové body a okrajové kružnice")

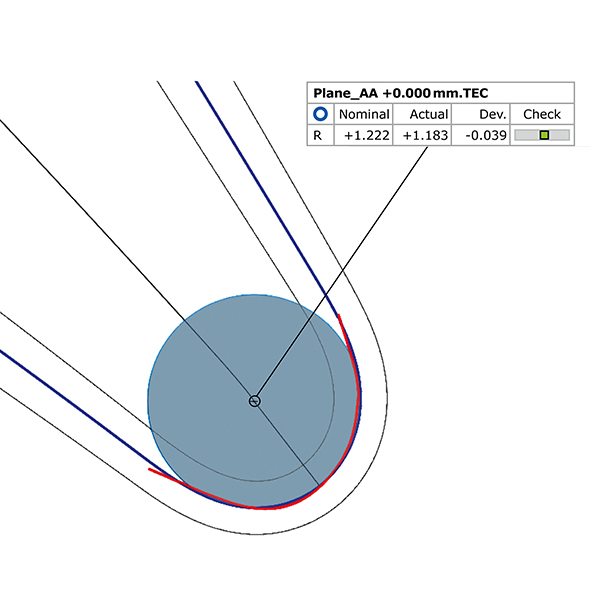

Generování bodů na hraně je standardní funkce. Je určeno průsečíkem křivky profilu na náběžné nebo odtokové hraně se sací a tlakovou stranou profilu. Parametry umožňují přesouvat body podél křivky profilu. Hranové kružnice jsou také automatické a generují prvky na náběžné nebo odtokové hraně profilu.
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_thickness_600x600.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_atos5-for-airfoil_features_thickness_600x600.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_thickness_600x600.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_atos5-for-airfoil_features_thickness_600x600.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_thickness_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_thickness_600x600.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_thickness_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_thickness_600x600.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_thickness_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_thickness_600x600.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_thickness_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_thickness_600x600.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_thickness_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_thickness_600x600.jpg"})

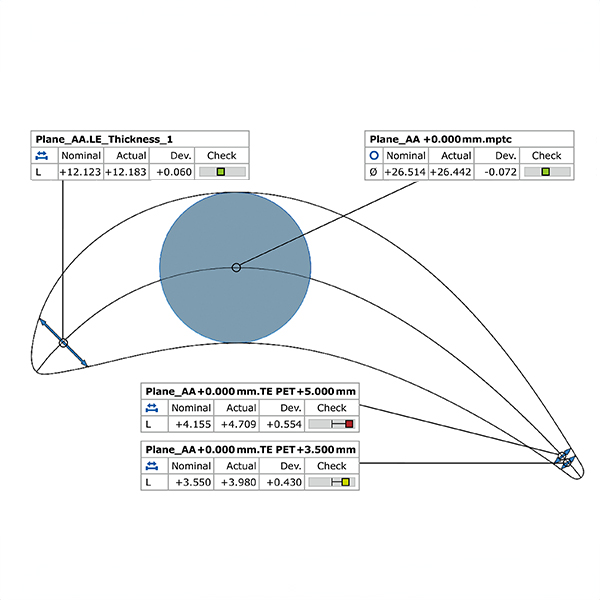

Standardní funkce, které měří tloušťky profilu od náběžné po odtokovou hranu profilu. Jednoduchý dialog vyzve k zadání hodnoty vzdálenosti, ve které se měří tloušťka od bodu hrany. Různé možnosti umožňují sledovat měření podél křivky profilu. Lze také vytvořit tradiční tloušťky v předem definovaných úhlech. K dispozici je také kontrola maximální tloušťky profilu pomocí metody vzdálenosti nebo největší vepsané kružnice.
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_features_form-position-checks_600x600.jpg"})

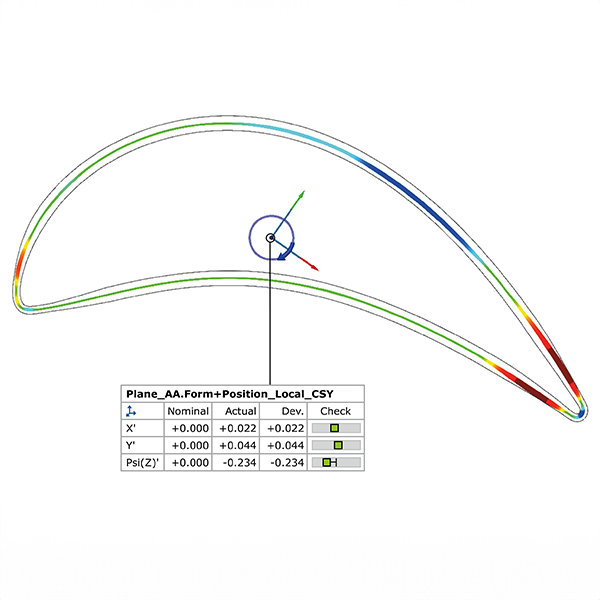

Software umožňuje flexibilní způsob vyhodnocování tvaru a polohy profilů letounu podle potřeb koncového uživatele. Techniky vyhodnocení skutečných dat řezu lze porovnat pomocí Chebyševovy, Gaussovy nebo metody nejlepšího přizpůsobení podle tolerance. Software může také porovnávat výsledky s měnícími se tolerančními oblastmi, kde se tolerance v jednotlivých částech profilu liší.
![ATOS 5]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5_250x250.jpg/_jcr_content/renditions/original.image_file.100.56.0,55,250,196.file/zeiss_atos5_250x250.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5_250x250.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5_250x250.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5_250x250.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5_250x250.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5_250x250.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5_250x250.jpg"} "ATOS 5")
|
![ATOS 5 for Airfoil]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5x_250x250.jpg/_jcr_content/renditions/original.image_file.100.56.0,55,250,196.file/zeiss_atos5x_250x250.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5x_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5x_250x250.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5x_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5x_250x250.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5x_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5x_250x250.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5x_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5x_250x250.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5x_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5x_250x250.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5x_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5x_250x250.jpg"} "ATOS 5 for Airfoil")
|
![ATOS 5X]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5-for-airfoil_250x250.jpg/_jcr_content/renditions/original.image_file.100.56.0,55,250,196.file/zeiss_atos5-for-airfoil_250x250.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5-for-airfoil_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5-for-airfoil_250x250.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5-for-airfoil_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5-for-airfoil_250x250.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5-for-airfoil_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5-for-airfoil_250x250.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5-for-airfoil_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5-for-airfoil_250x250.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5-for-airfoil_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5-for-airfoil_250x250.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5x/zeiss_atos5-for-airfoil_250x250.jpg/_jcr_content/renditions/original.image_file.250.141.0,55,250,196.file/zeiss_atos5-for-airfoil_250x250.jpg"} "ATOS 5X")
|
![ZEISS ATOS LRX]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_setail_lrx.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss_atos_5_setail_lrx.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_setail_lrx.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss_atos_5_setail_lrx.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_setail_lrx.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss_atos_5_setail_lrx.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_setail_lrx.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss_atos_5_setail_lrx.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_setail_lrx.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss_atos_5_setail_lrx.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_setail_lrx.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss_atos_5_setail_lrx.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_setail_lrx.jpg/_jcr_content/renditions/original./zeiss_atos_5_setail_lrx.jpg"} "ZEISS ATOS LRX")
|
|
|---|---|---|---|---|
|
Technické údaje |
|
|
|
|
|
Váš systém pro: |
Vysokorychlostní 3D skenovací systém |
Automatizované skenování velkých objemů |
Přesné skenování nejmenších detailů |
3D skenování velmi velkých objemů |
|
Zdroj světla |
LED |
LASER |
LED |
LASER |
|
Počet měřicích bodů na sken |
8 nebo 12 milionů |
12 milionů |
12 milionů |
12 milionů |
|
Pracovní vzdálenost |
880 mm |
880 mm |
530 mm |
1 810 mm |
|
|
|
|||
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_working-distance-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_working-distance-03.svg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_working-distance-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_working-distance-03.svg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_working-distance-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_working-distance-03.svg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_working-distance-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_working-distance-03.svg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_working-distance-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_working-distance-03.svg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_working-distance-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_working-distance-03.svg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_working-distance-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_working-distance-03.svg"})
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_stability-01.svg/_jcr_content/renditions/original./atos5-for-airfoil_stability-01.svg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_stability-01.svg/_jcr_content/renditions/original./atos5-for-airfoil_stability-01.svg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_stability-01.svg/_jcr_content/renditions/original./atos5-for-airfoil_stability-01.svg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_stability-01.svg/_jcr_content/renditions/original./atos5-for-airfoil_stability-01.svg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_stability-01.svg/_jcr_content/renditions/original./atos5-for-airfoil_stability-01.svg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_stability-01.svg/_jcr_content/renditions/original./atos5-for-airfoil_stability-01.svg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_stability-01.svg/_jcr_content/renditions/original./atos5-for-airfoil_stability-01.svg"})
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_sections-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_sections-03.svg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_sections-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_sections-03.svg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_sections-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_sections-03.svg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_sections-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_sections-03.svg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_sections-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_sections-03.svg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_sections-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_sections-03.svg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/atos5-for-airfoil_sections-03.svg/_jcr_content/renditions/original./atos5-for-airfoil_sections-03.svg"})
![ZEISS INSPECT]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.100.50.0,60,1920,1020.file/zeiss-inspect_header_1920x1080.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.360.180.0,60,1920,1020.file/zeiss-inspect_header_1920x1080.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.768.384.0,60,1920,1020.file/zeiss-inspect_header_1920x1080.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.1024.512.0,60,1920,1020.file/zeiss-inspect_header_1920x1080.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.1280.640.0,60,1920,1020.file/zeiss-inspect_header_1920x1080.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.1440.720.0,60,1920,1020.file/zeiss-inspect_header_1920x1080.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.1920.960.0,60,1920,1020.file/zeiss-inspect_header_1920x1080.jpg"} "ZEISS INSPECT")
![ZEISS INSPECT]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.100.100.420,0,1500,1080.file/zeiss-inspect_header_1920x1080.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.360.360.420,0,1500,1080.file/zeiss-inspect_header_1920x1080.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.768.768.420,0,1500,1080.file/zeiss-inspect_header_1920x1080.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.1024.1024.420,0,1500,1080.file/zeiss-inspect_header_1920x1080.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.420,0,1500,1080.file/zeiss-inspect_header_1920x1080.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.420,0,1500,1080.file/zeiss-inspect_header_1920x1080.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss-inspect_header_1920x1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.420,0,1500,1080.file/zeiss-inspect_header_1920x1080.jpg"} "ZEISS INSPECT")

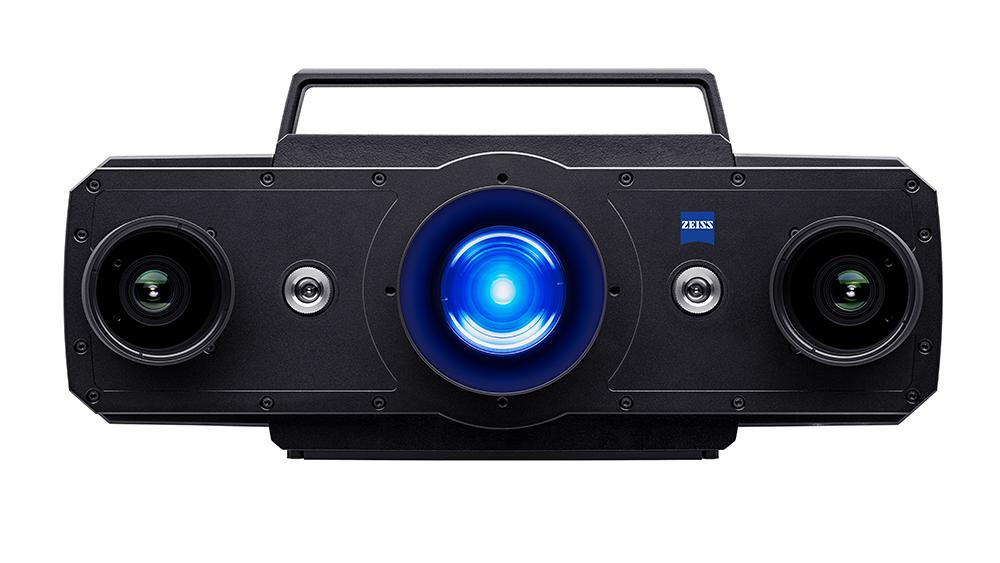

![ATOS 5]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_atos_5_50_50_stage_1000_1000.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_atos_5_50_50_stage_1000_1000.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_atos_5_50_50_stage_1000_1000.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original./zeiss_atos_5_50_50_stage_1000_1000.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original./zeiss_atos_5_50_50_stage_1000_1000.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original./zeiss_atos_5_50_50_stage_1000_1000.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original./zeiss_atos_5_50_50_stage_1000_1000.jpg"} "ATOS 5")
