ZEISS MMZ T
Portálový souřadnicový měřicí stroj s velkým měřicím rozsahemS měřicím rozsahem až 14,8 m³ poskytuje ZEISS MMZ T největší měřicí rozsah z portálových strojů se stolem. Lze na něm například velice přesně změřit velké komponenty převodovek přímo ve výrobním prostředí.
![ZEISS MMZ T]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.100.100.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.360.360.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.768.768.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1280.1280.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1440.1440.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1920.1920.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg"} "ZEISS MMZ T")

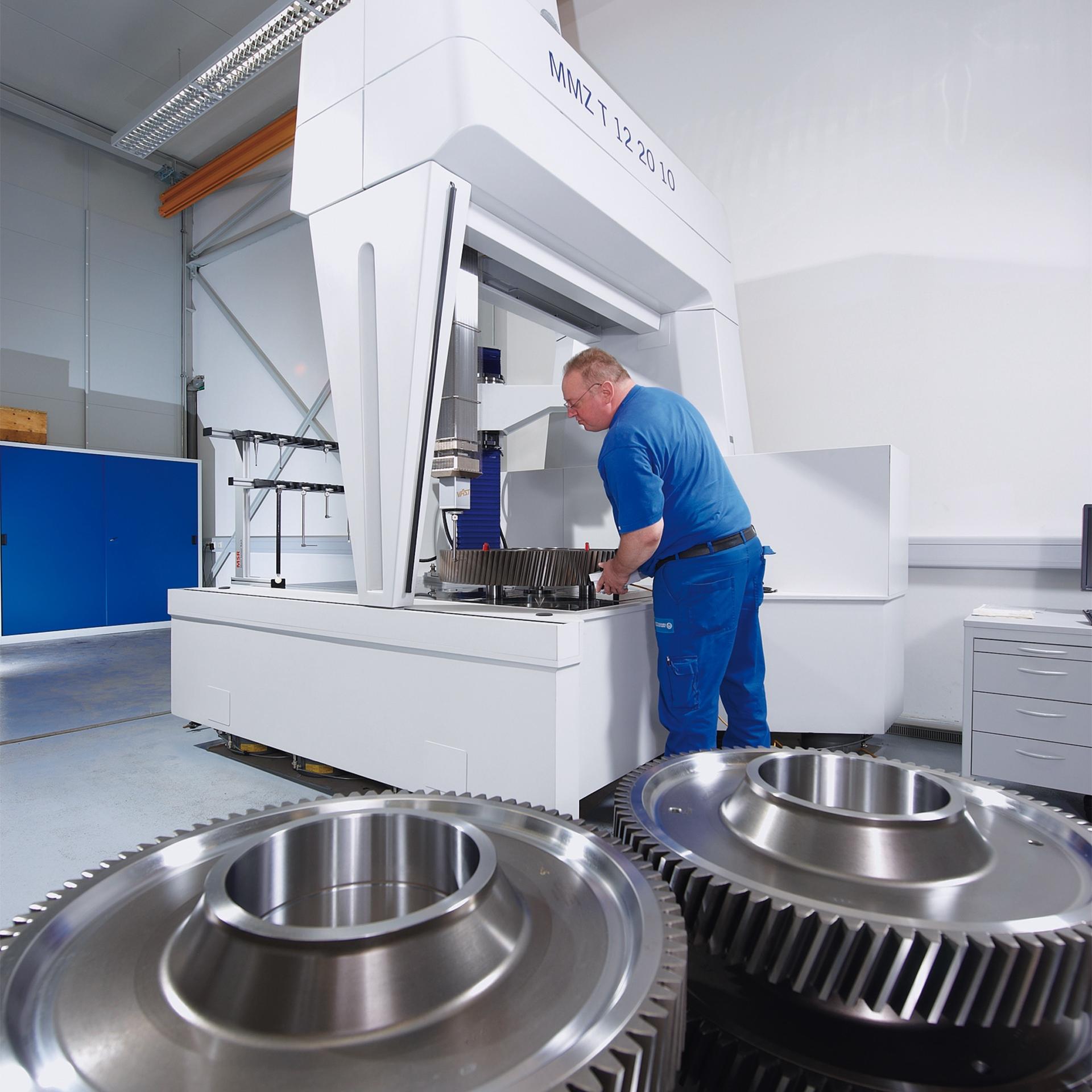

Čelní kolo se šikmým ozubením na souřadnicovém měřicím stroji ZEISS MMZ T
![ZEISS MMZ T]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.100.100.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.360.360.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.768.768.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1280.1280.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1440.1440.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1920.1920.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg"} "ZEISS MMZ T")

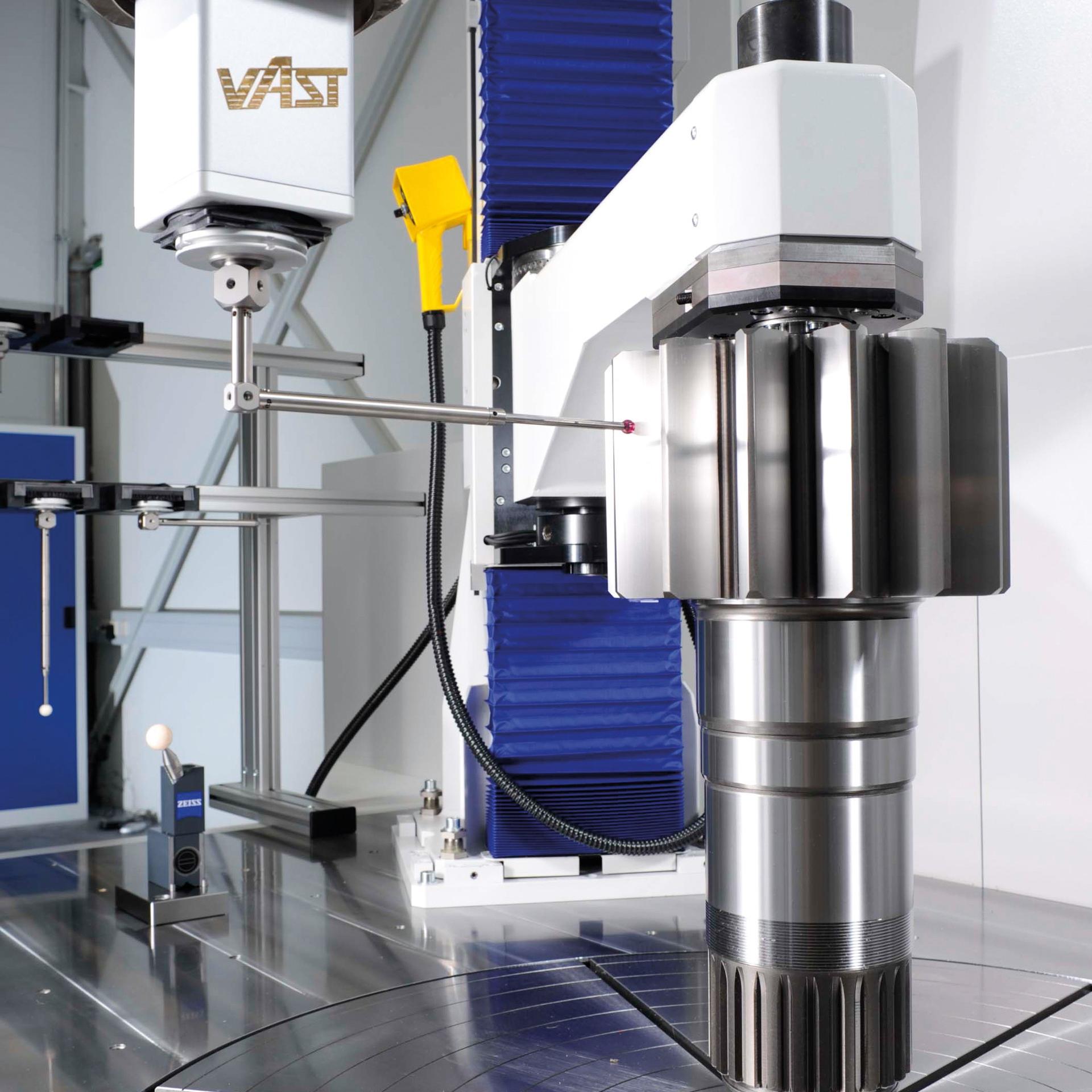

ZEISS MMZ T s motorizovaným opěrným ramenem
Technické údaje pro ZEISS MMZ T
|
|
|
|
|---|---|---|
|
Chyba měření délky |
MPE_E150 |
Od 2,4 + L/400 μm |
|
Chyba jednotlivého doteku |
MPE_PFTU |
Od 2,0 μm |
|
Chyba skenování |
MPE_THP/tau |
Od 2,8 μm / 62 s |
|
Chyba měření tvaru |
MPE RONt |
Od 2,0 μm |
