ZEISS ScanBox Series 4 RC

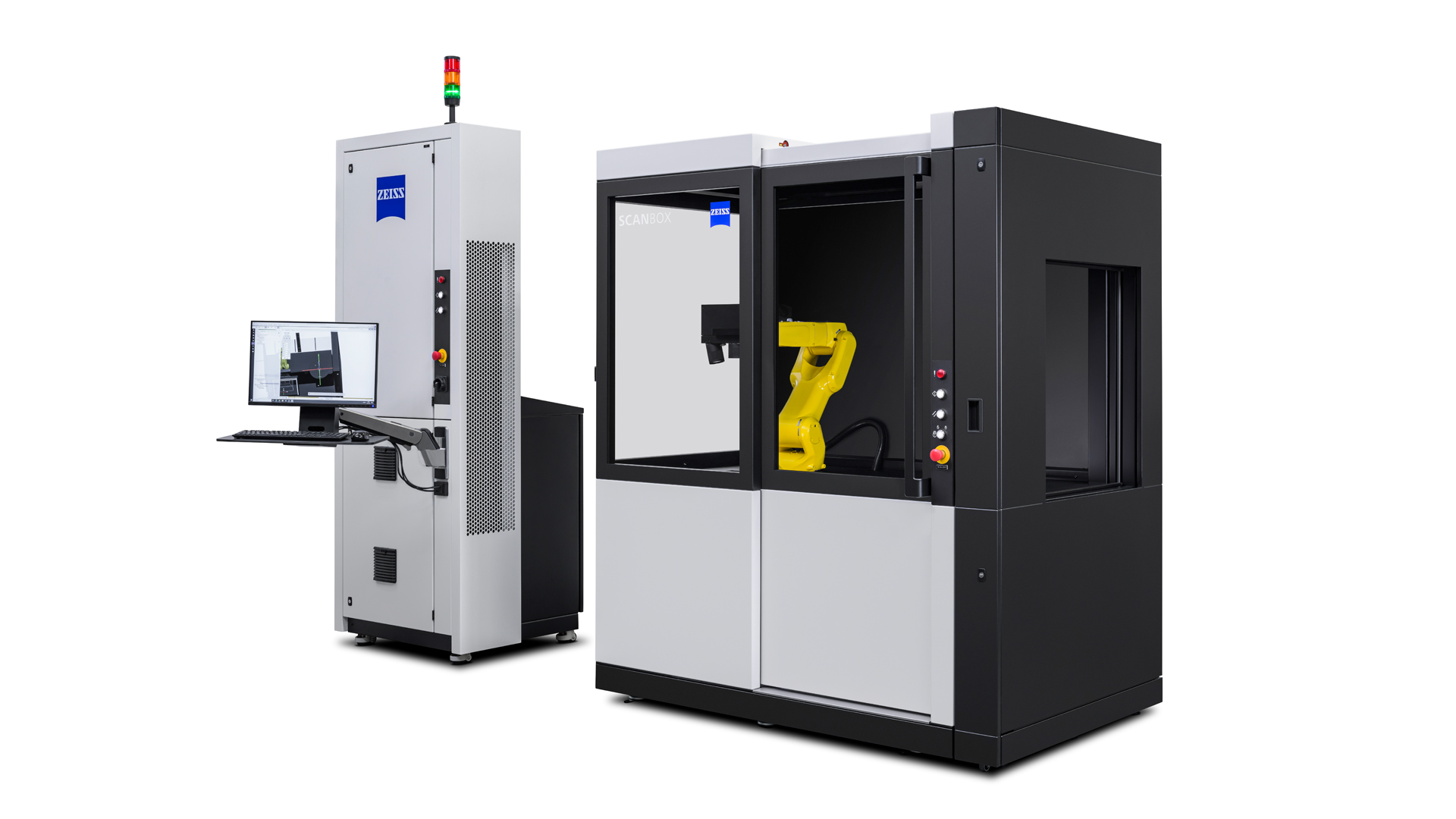

Automatizované zakládání a měření dílůZEISS ScanBox 4105 RC (dálkové ovládání) je optický 3D měřicí stroj s motorizovanými posuvnými dveřmi. Díly o velikosti až 500 mm lze do ZEISS ScanBox 4105 RC vkládat pomocí robota nebo individuálně konfigurovaného podávacího systému a umisťovat je na modul otočného stolu. Eliminace ručního individuálního umisťování výrazně zkracuje potřebný čas a zajišťuje tak vyšší propustnost v oblasti zajištění kvality.
Autonomní kontrola dílů

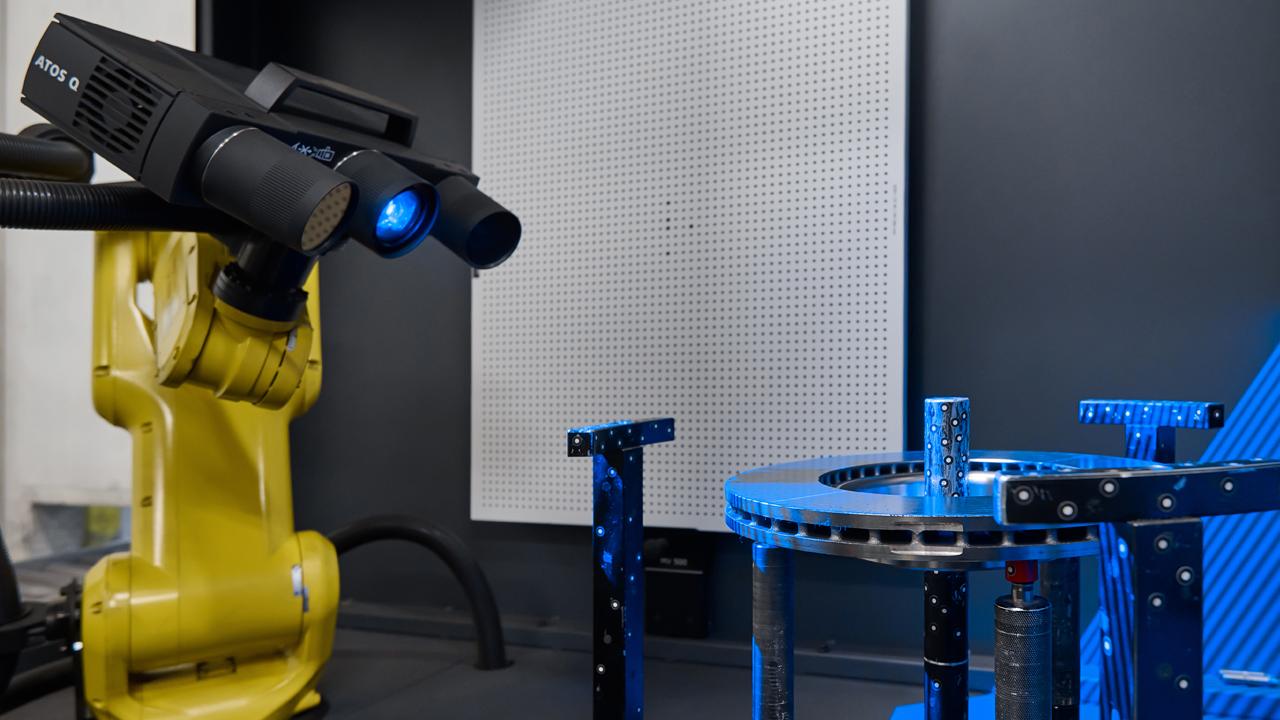

Autonomní provoz ZEISS ScanBox Series 4 RC zvyšuje využití stroje, zrychluje doby měřicích cyklů a umožňuje efektivnější nasazení personálu. Systém byl speciálně vyvinut pro aplikace, které vyžadují vysoký stupeň propustnosti a integrace.
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.100.56.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.360.203.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.768.432.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1024.576.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1280.720.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1280.720.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1280.720.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg"})
Vysoká propustnost pro sériové monitorování
Opakovatelné a přesné měřicí průběhyPro efektivní zajištění kvality sériových výrobků je nutné monitorovat výrobní procesy, snižovat zmetkovitost a minimalizovat nákladné přepracování. Optický 3D měřicí stroj ZEISS ScanBox Series 4 RC se senzorem ATOS Q vám poskytuje podporu: Kompletní skutečná data sériových dílů lze přímo porovnat s CAD modelem nebo se specifikacemi z plánu měření. Vytvářejte kontrolní reporty přímo ve výrobních závodech a exportujte data rovnou do statistických systémů řízení procesů.
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_header_1920_1080.jpg"})
Automatizované řízení procesů
Rychlé nastavení a nízké náklady na personálNaprogramujte optický 3D měřicí stroj pomocí ergonomického uživatelského rozhraní integrovaného do řídicí věže. S ZEISS ScanBox 4105 RC se provádí automatizovaná kontrola dílů pomocí spouštěcího signálu z nadřazeného řízení. ZEISS nabízí komunikační rozhraní založená na sběrnicích (CC-Link, ProfiBus, ProfiNet, EtherCat, EtherNet/IP, OPC UA).
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original./zeiss-scanbox5-rc_2grid-maximal-machine.jpg"})
Maximální využití stroje a optimalizované procesy

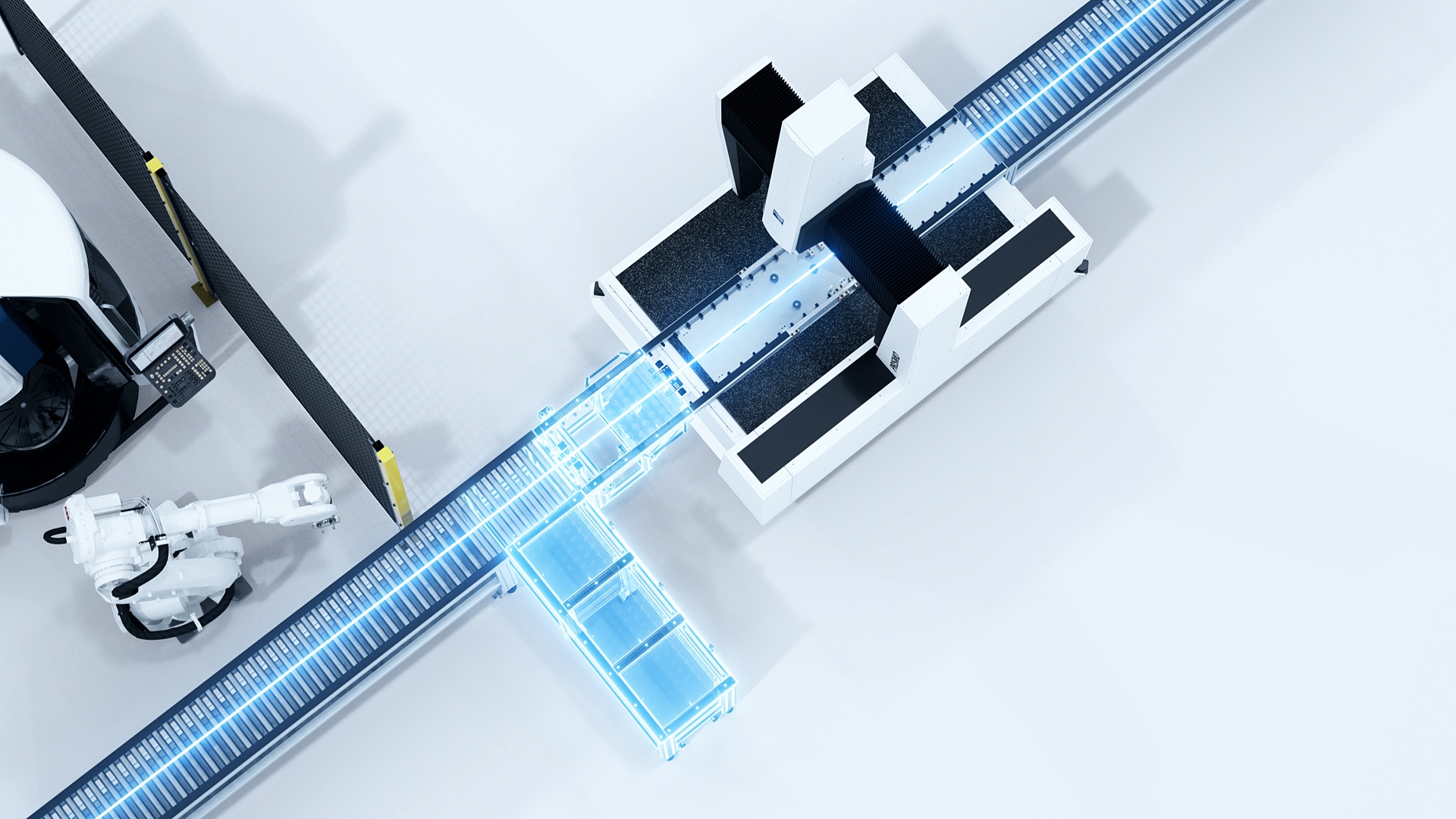

Individuálně konfigurovatelné systémy nakládáníVyužijte plný potenciál stroje ZEISS ScanBox Series 4 RC se systémem podávání a zakládání od společnosti ZEISS. S řadou ZEISS Integration Series můžete automatizovat zakládání dílů a vyhnout se prostojům. Tok dílů a provozní doba jsou optimalizovány.

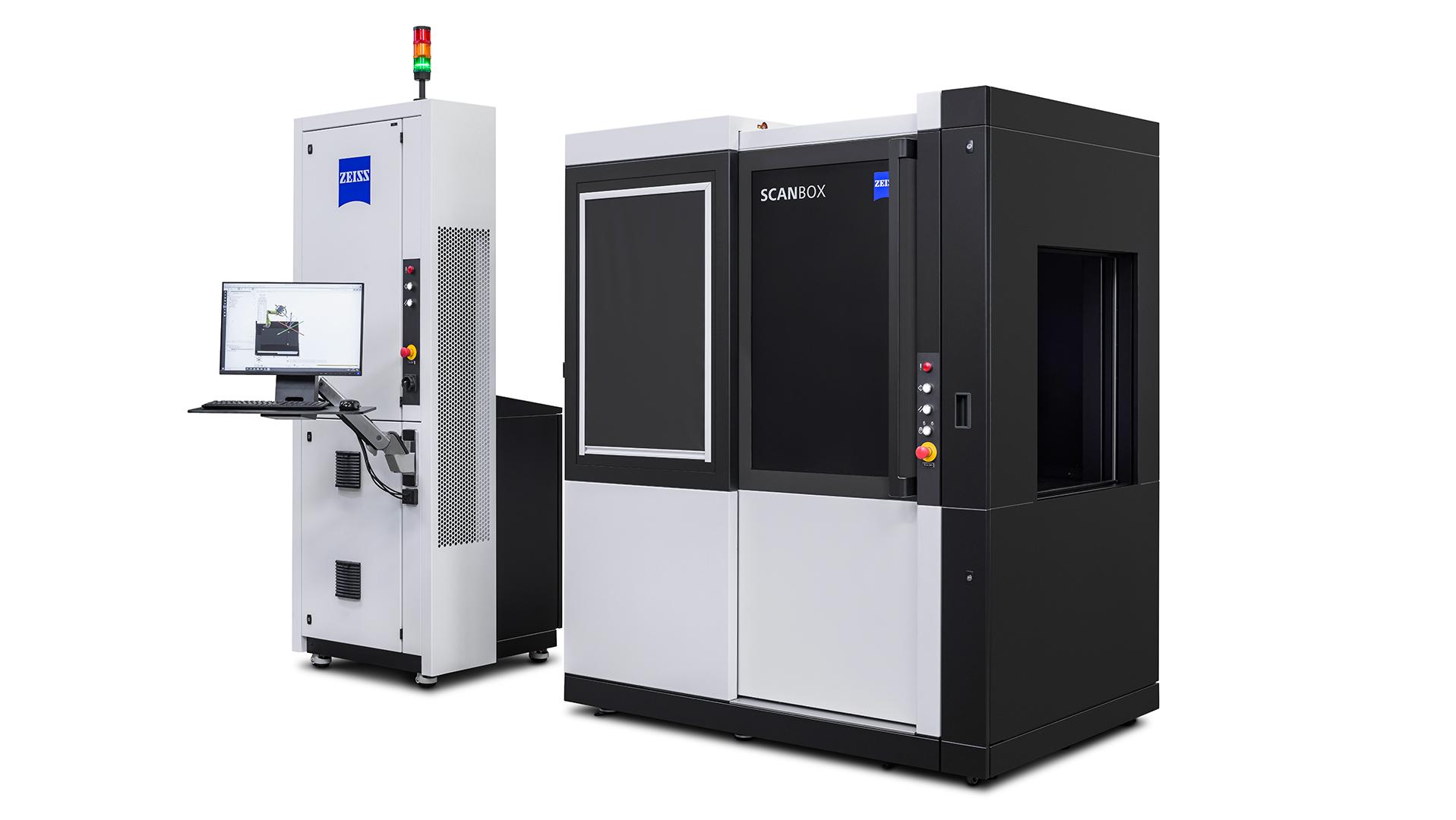

Plně automatizované zajištění kvality statorů a vlásenek
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.56.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.203.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.432.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.576.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.720.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.810.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1919.1079.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg"})

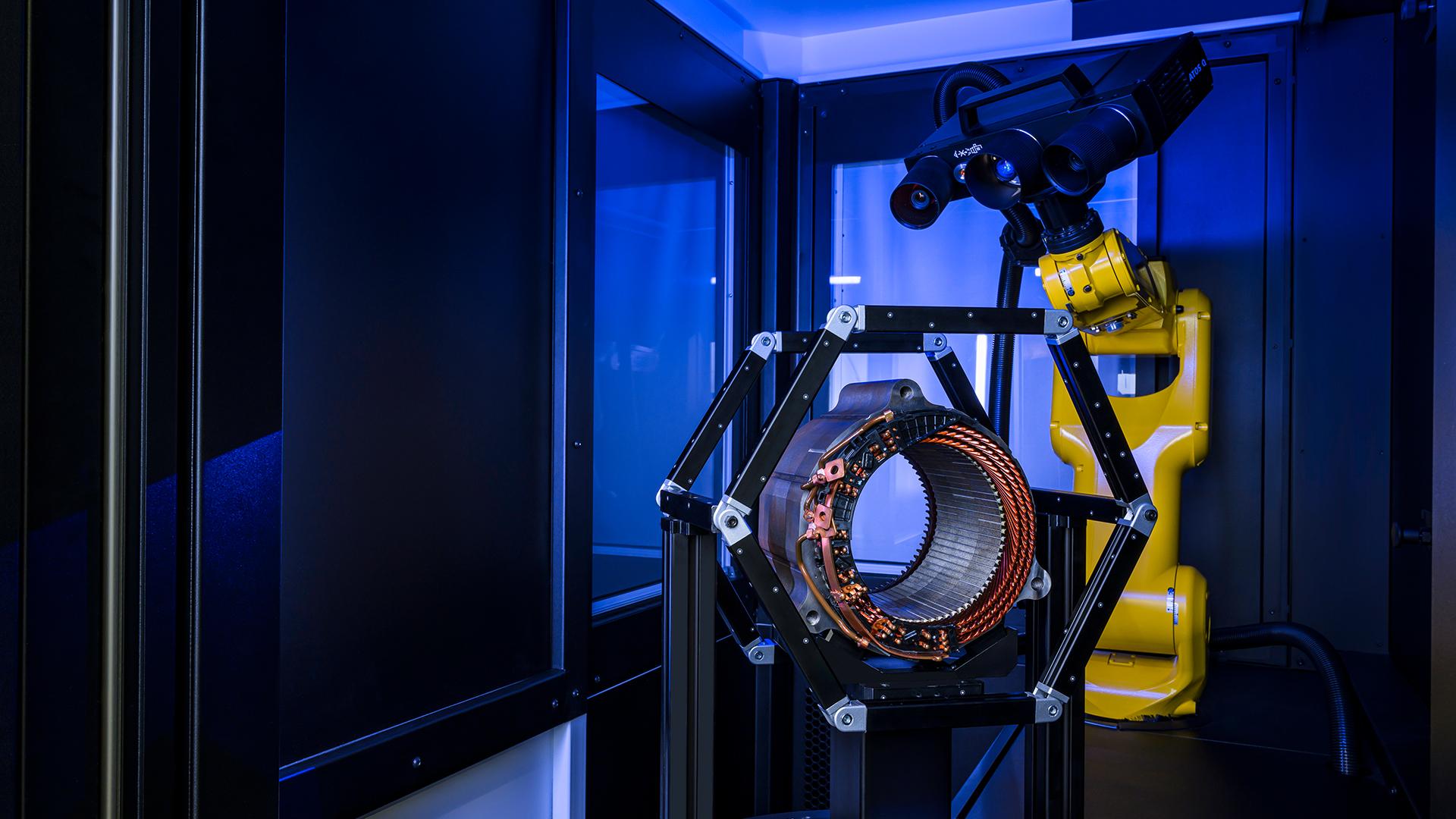

![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.56.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.203.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.432.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.576.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.720.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.810.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg"})

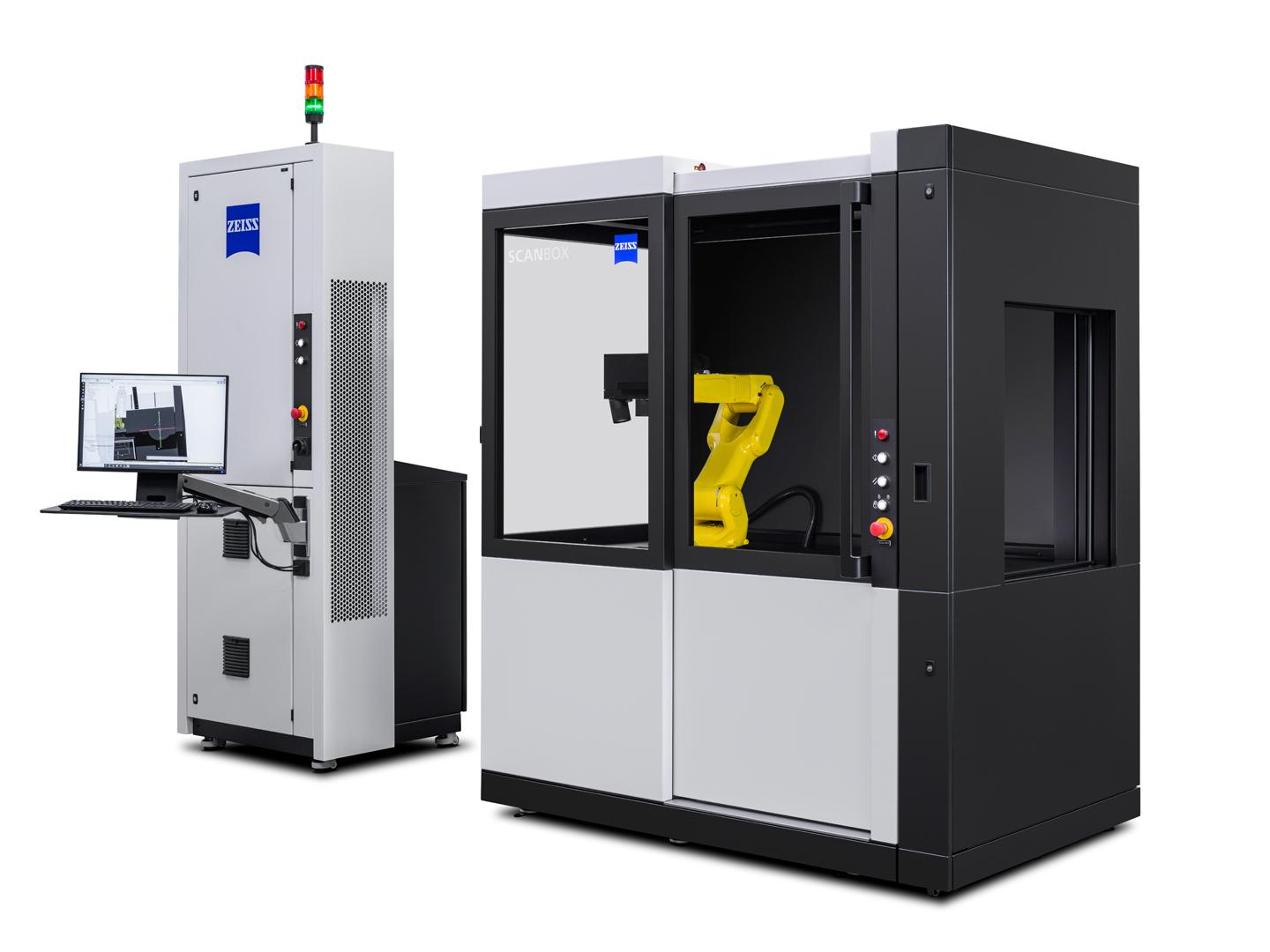

Dva modely pro automatizované zakládání a kontrolu dílů

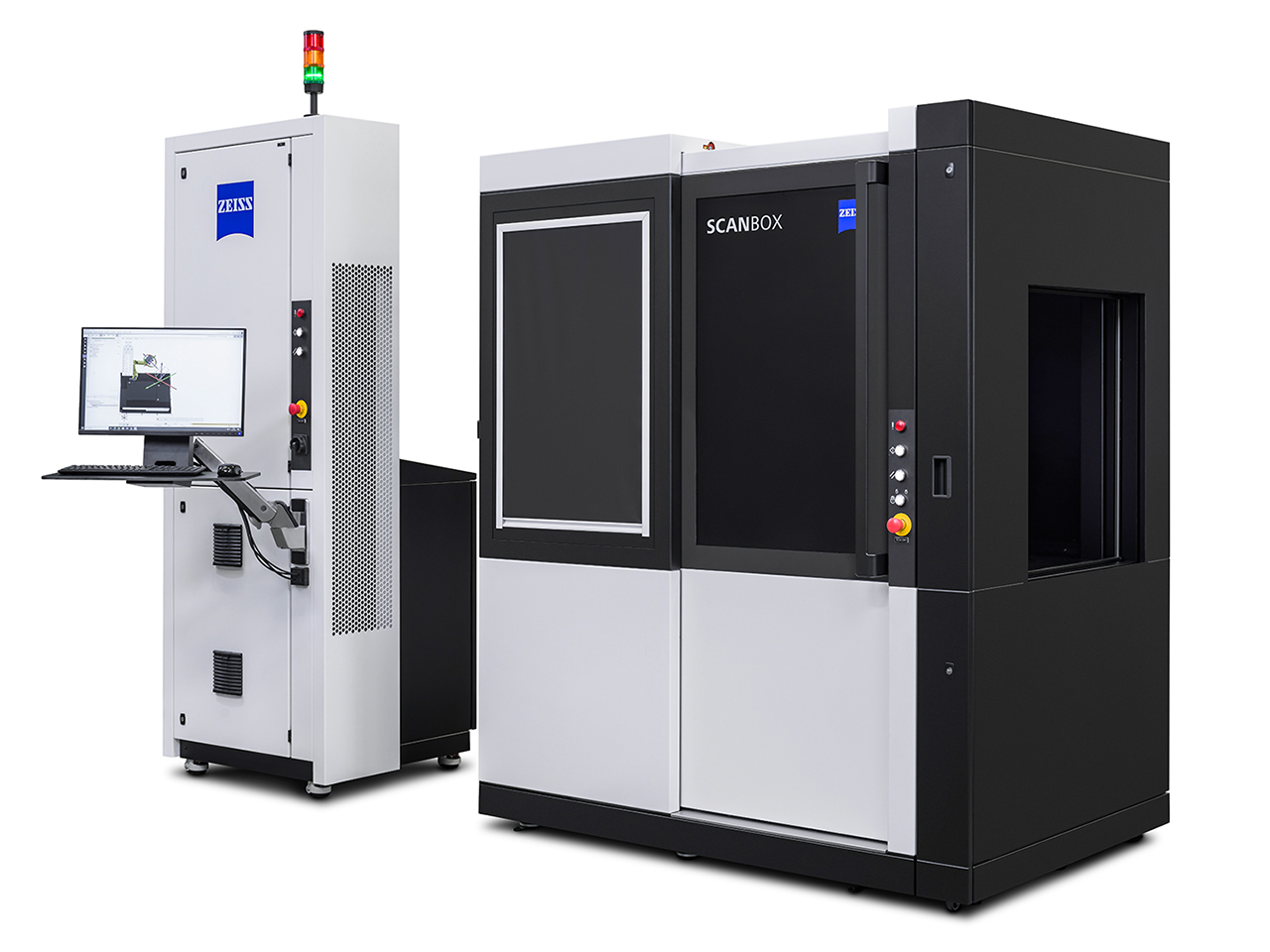

ZEISS ScanBox 4105 RC a ZEISS ScanBox 4105 RC for eMotors můžete použít pro automatizované zajištění kvality a sériové sledování přímo ve výrobě. Díky automatickému nakládání a vykládání, opakovatelným a přesným měřicím procesům a nízkým nákladům na personál můžete efektivněji nasadit své zaměstnance.
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.75.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.270.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.576.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.768.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.960.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg"})
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg"})

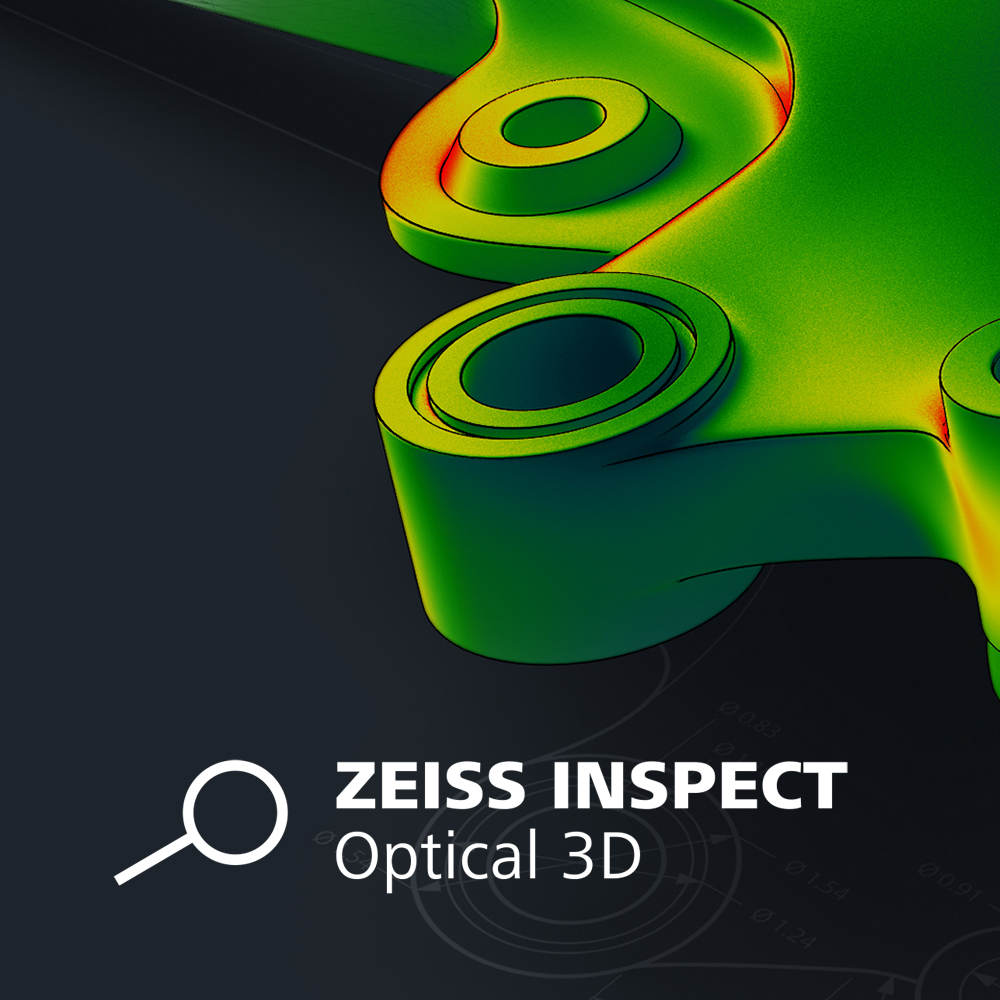

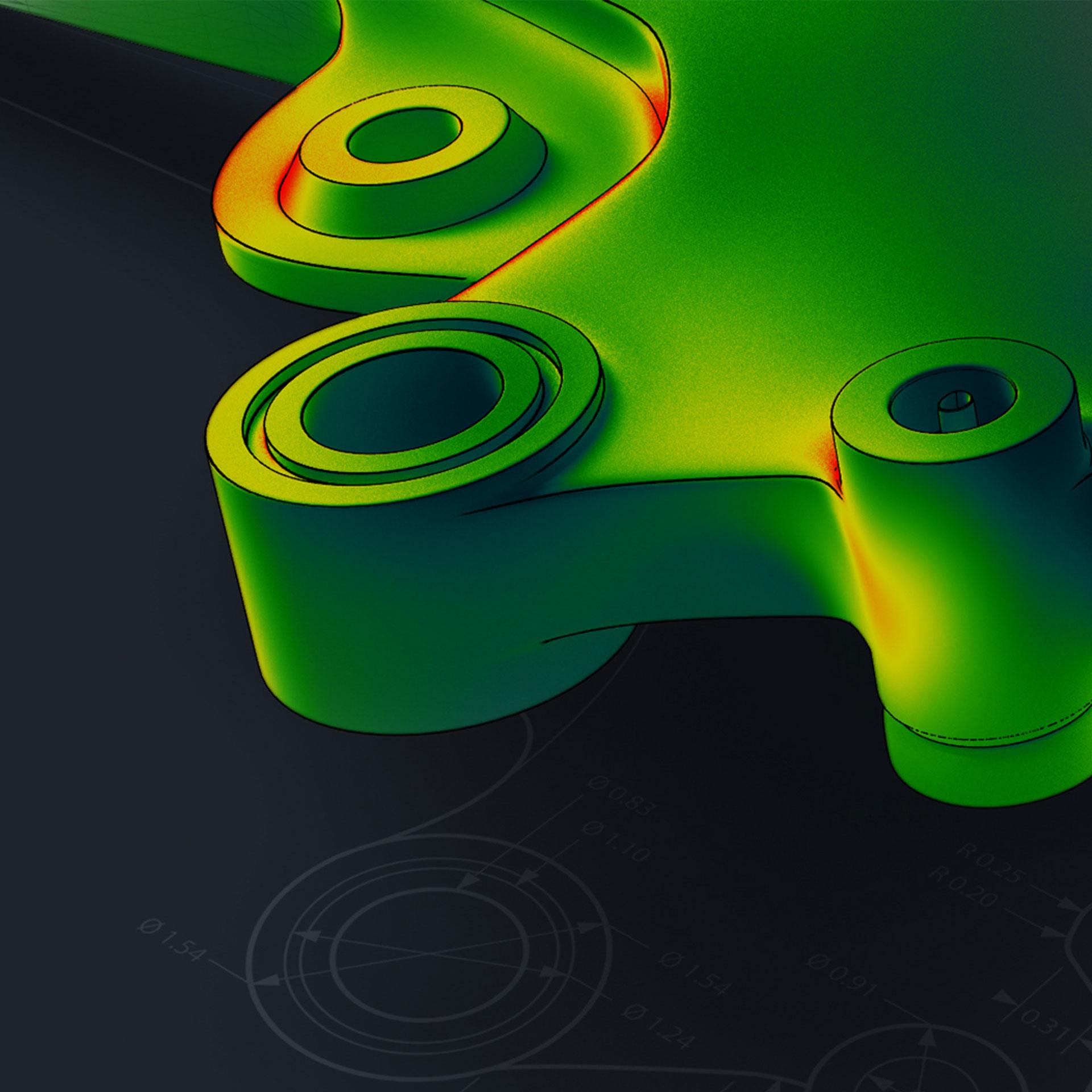

ZEISS INSPECT
Průmyslový standard pro 3D kontrolu a vyhodnocení
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg"})
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg"})

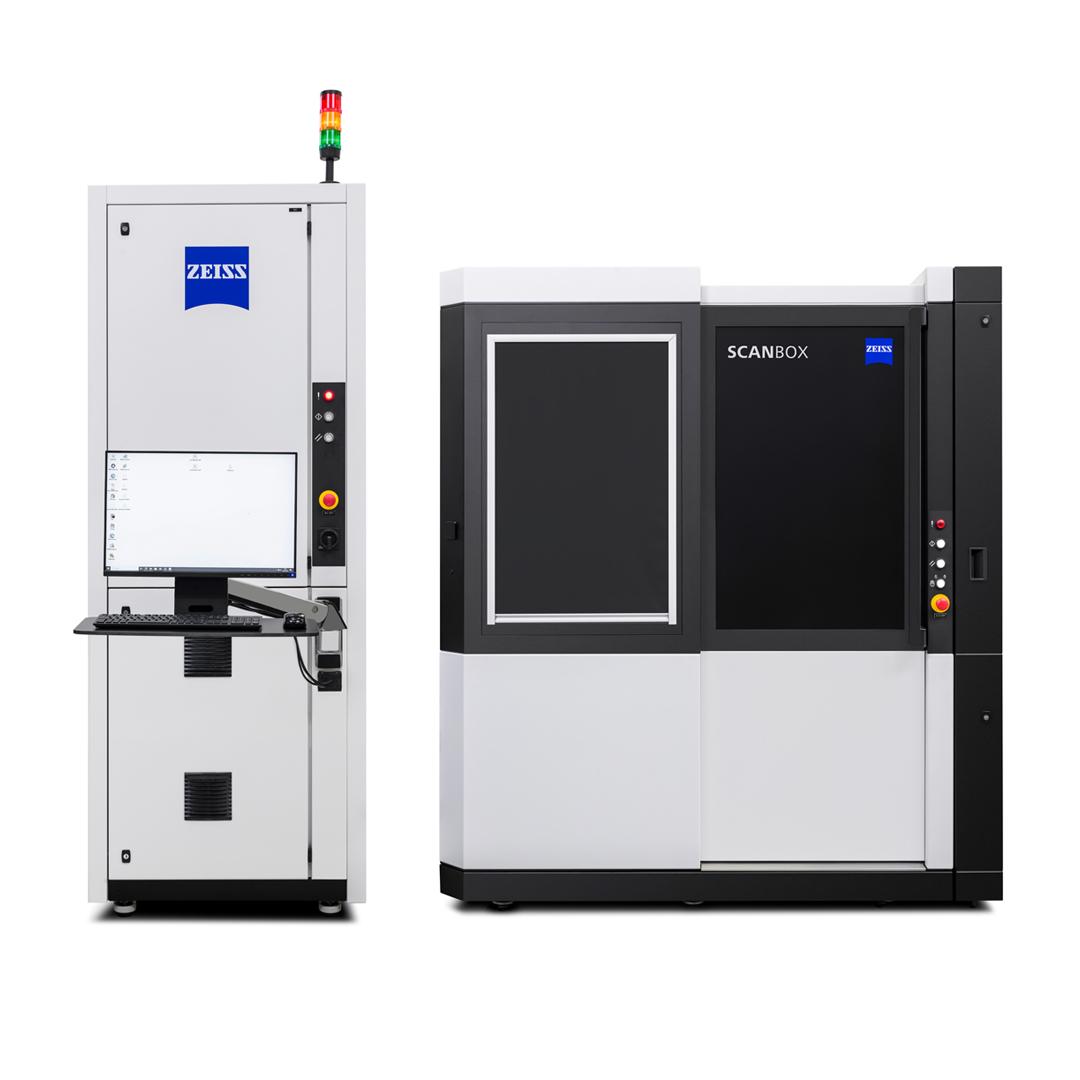

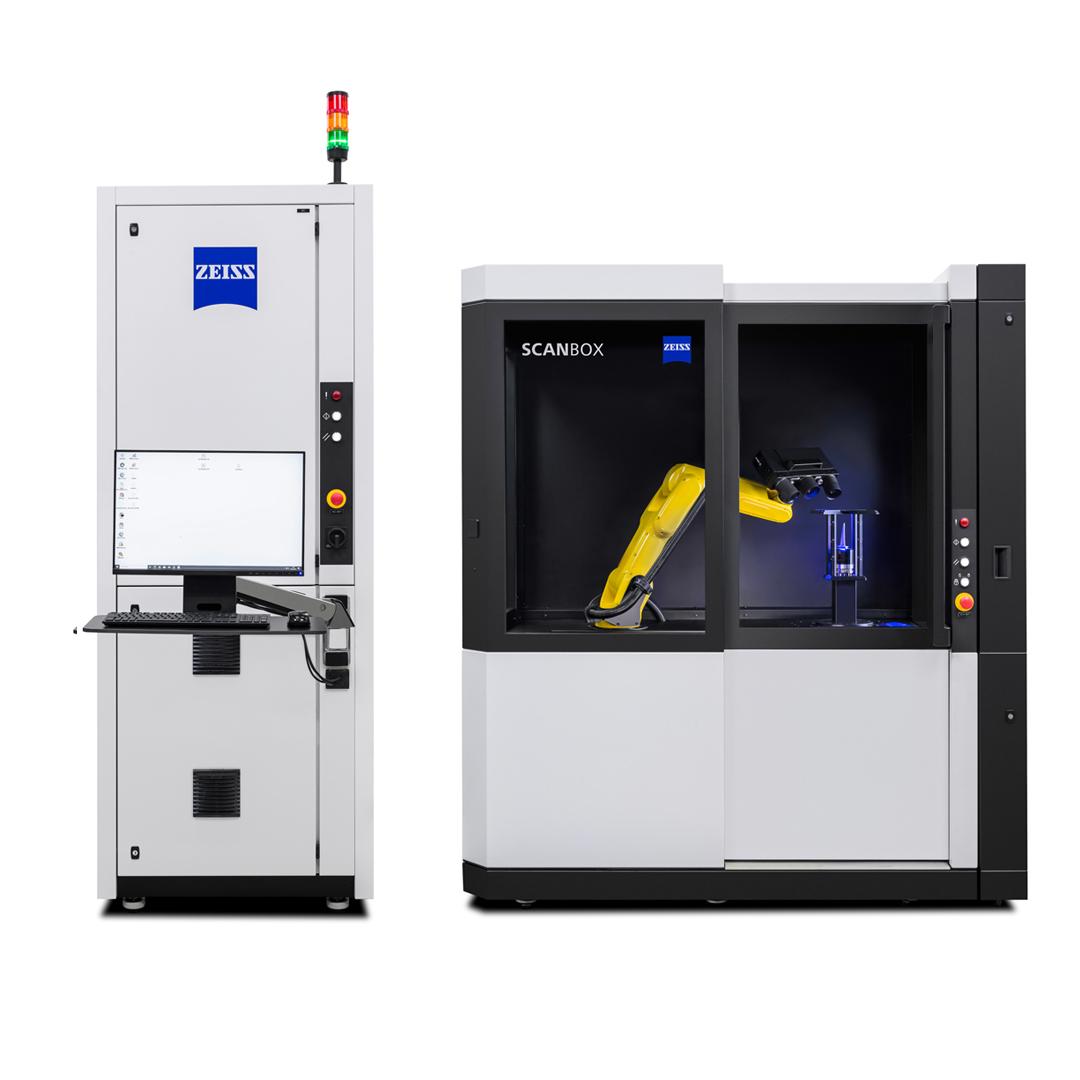

Technické údaje
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.100.100.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.360.360.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.768.768.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg"})
|
![]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.100.100.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.360.360.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.768.768.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg"})
|
|
|---|---|---|
|
Rozměry |
1860 x 1200 x 2120 mm |
1860 x 1200 x 2120 mm |
|
Napájení |
200–500 V (třífázové, 16 A) |
200–500 V (třífázové, 16 A) |
|
Max. velikost součásti |
Ø 500 mm |
Ø 500 mm |
|
Max. hmotnost součásti |
100 kg |
100 kg |
|
Šířka otvoru |
680 mm |
680 mm |
|
Kompatibilita senzorů |
ATOS Q |
ATOS Q for eMotors |
