Optický fotogrammetrický systém

TRITOP

Mastering measuring tasks photogrammetrically

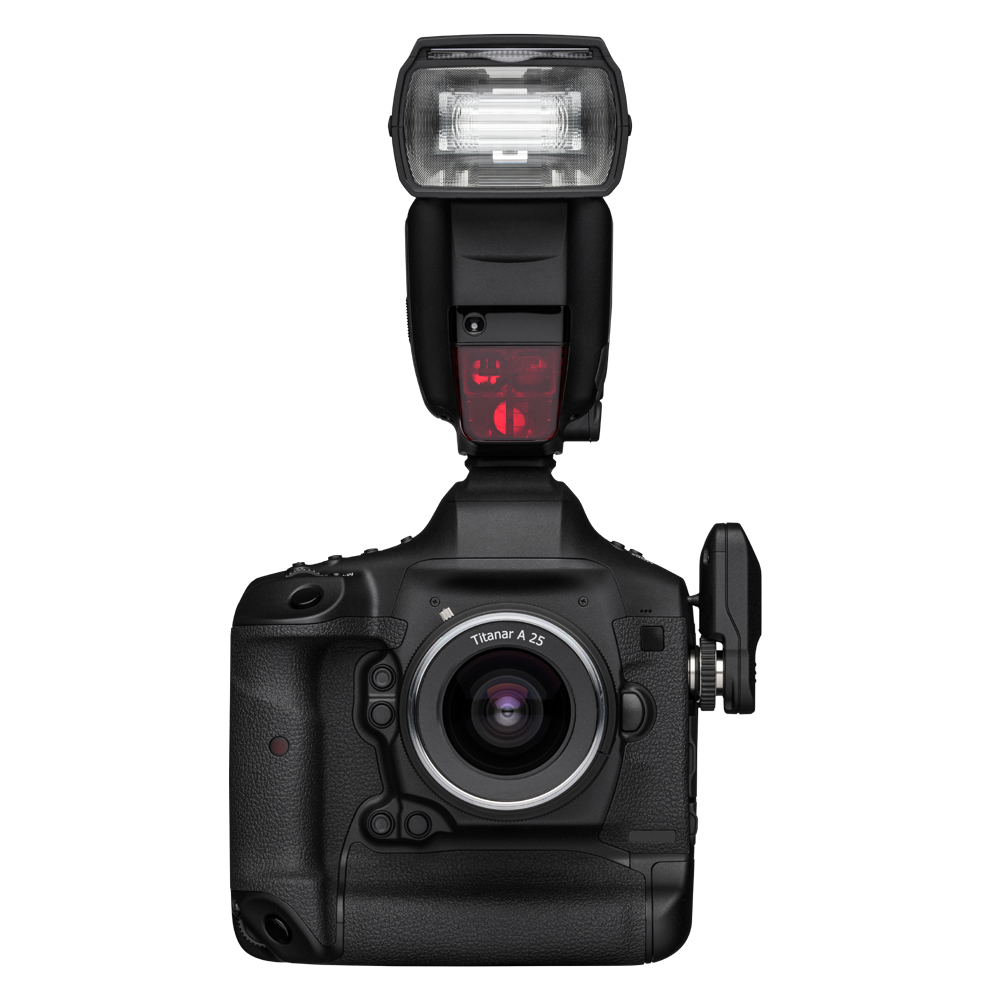

TRITOP captures three-dimensional coordinates of individual measuring points on objects and components. A digital measuring camera is used to take high-resolution images in a short time. From this, the integrated software automatically creates 3D point clouds for further inspection and analysis. As a mobile system, TRITOP is suitable for measuring tasks in 3D coordinate measuring technology and 3D testing.

Snadné použití
Velmi vysoká přesnost i u velkých objektů
Nezávislý na poloze a volně pohyblivý

3D souřadnice pro efektivní kontrolu

As a portable system, TRITOP measures the 3D coordinates of objects quickly and precisely. The integrated software uses this data for metrological analyses, including inspection and the display of displacements and deformations. The visualization of the results speeds up the evaluation.

Indoor to offshore

Independent of ambient conditions

TRITOP is specially designed for harsh measuring environments and captures precise 3D coordinates in significantly reduced measuring time, even under demanding environmental conditions: directly in production, in a climate chamber or offshore. The system delivers precise measuring results even under difficult lighting conditions. With minimal hardware requirements, this hand-held, wireless solution offers complete mobility regardless of location.

Bezkontaktní měření

High ease of use

TRITOP allows for non-contact acquisition of 3D coordinates. The system really comes into its own in confined spaces and areas that are difficult to access. Fragile objects and sensitive surfaces can also be measured. TRITOP thus replaces conventional measuring methods, such as tape measures and string lines, as well as complex displacement measuring systems or LVDTs.

Všechny velikosti objektů

Měřicí systém přijde k měřenému objektu

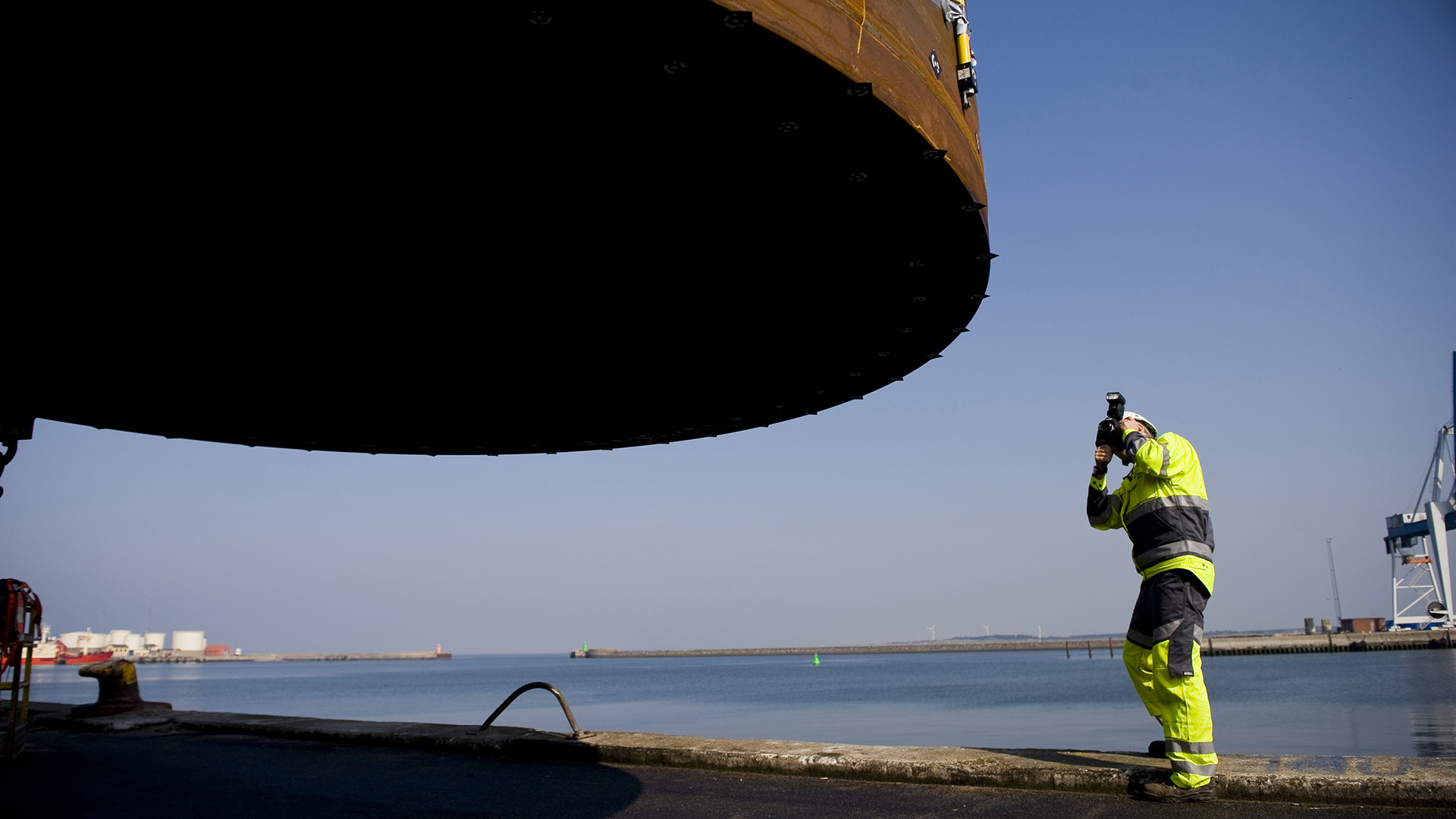

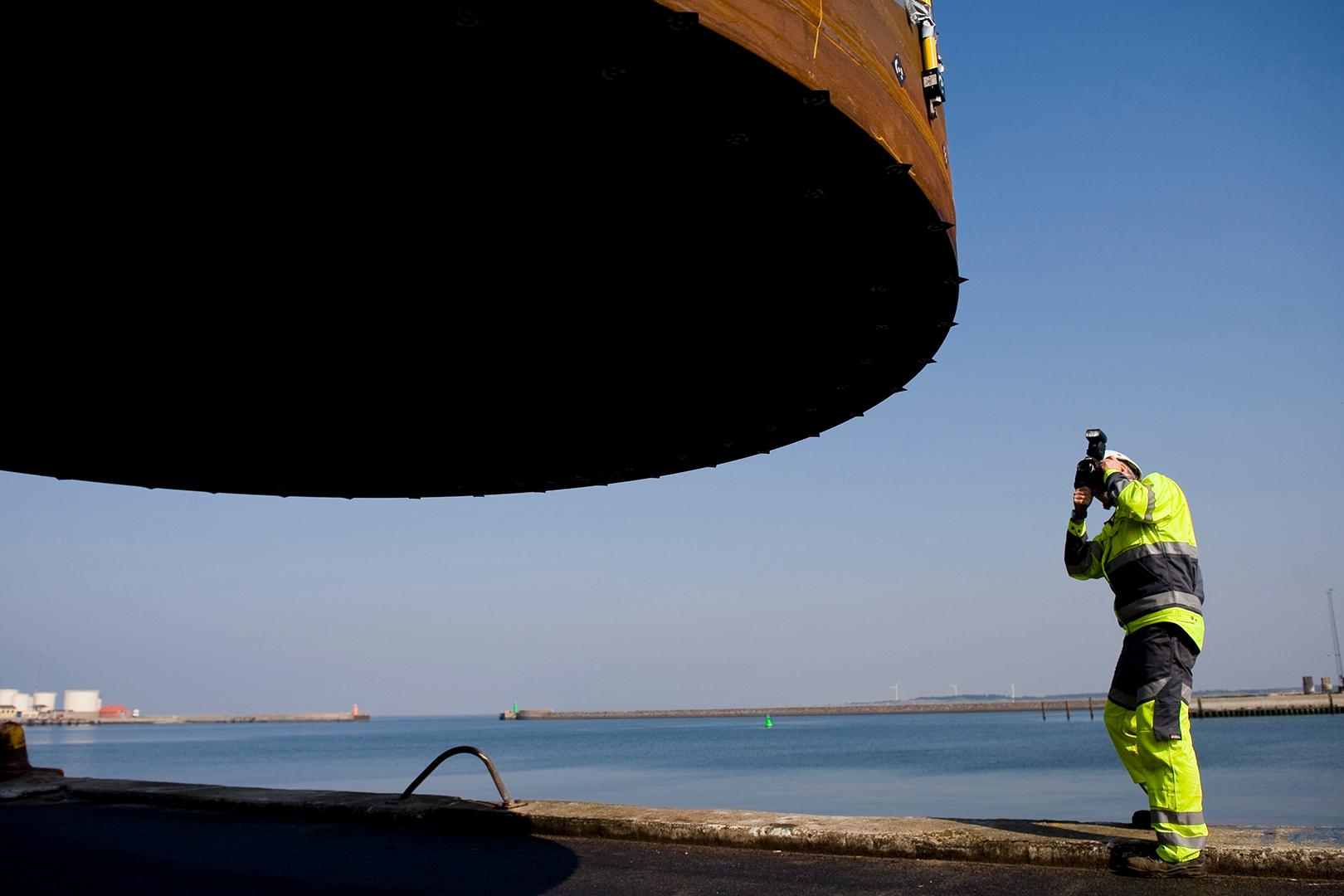

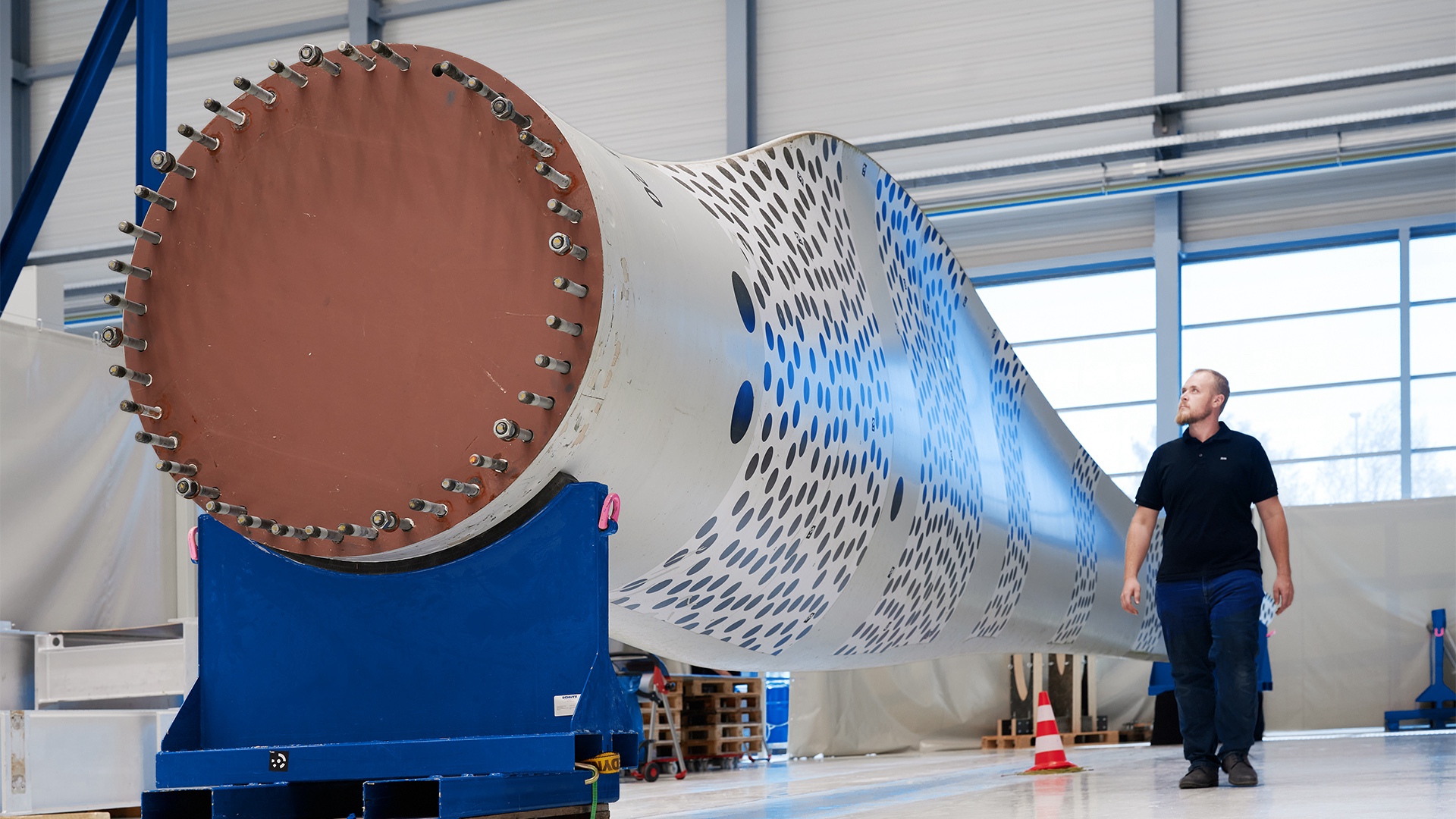

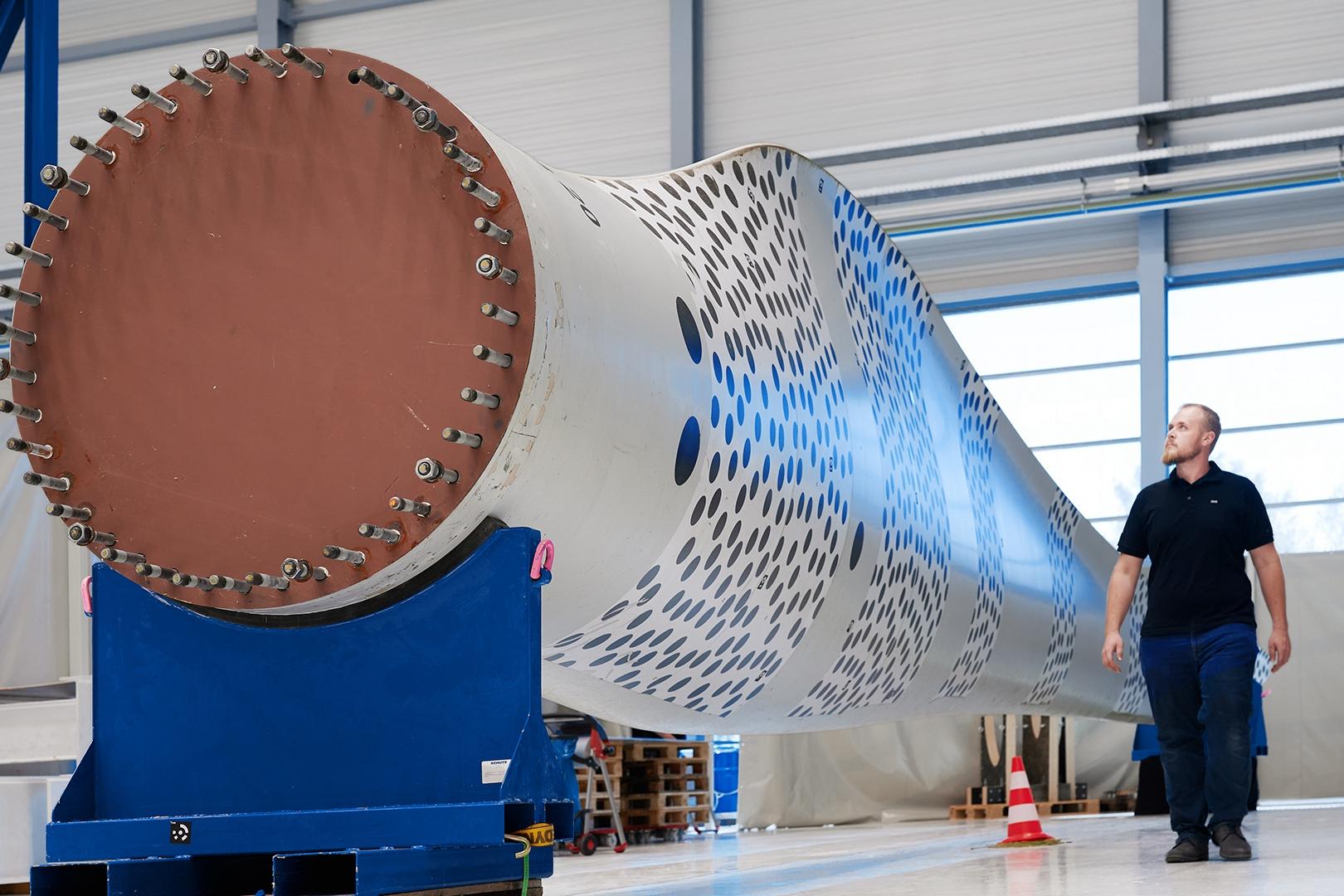

Especially when inspecting large objects such as ships or wind turbines, TRITOP brings the “measuring system comes to the measuring object” principle into best practice. The flexible system is at its best with parts of any size and almost any material.

Účinný nástroj pro analýzu

Výkonný software ZEISS INSPECT

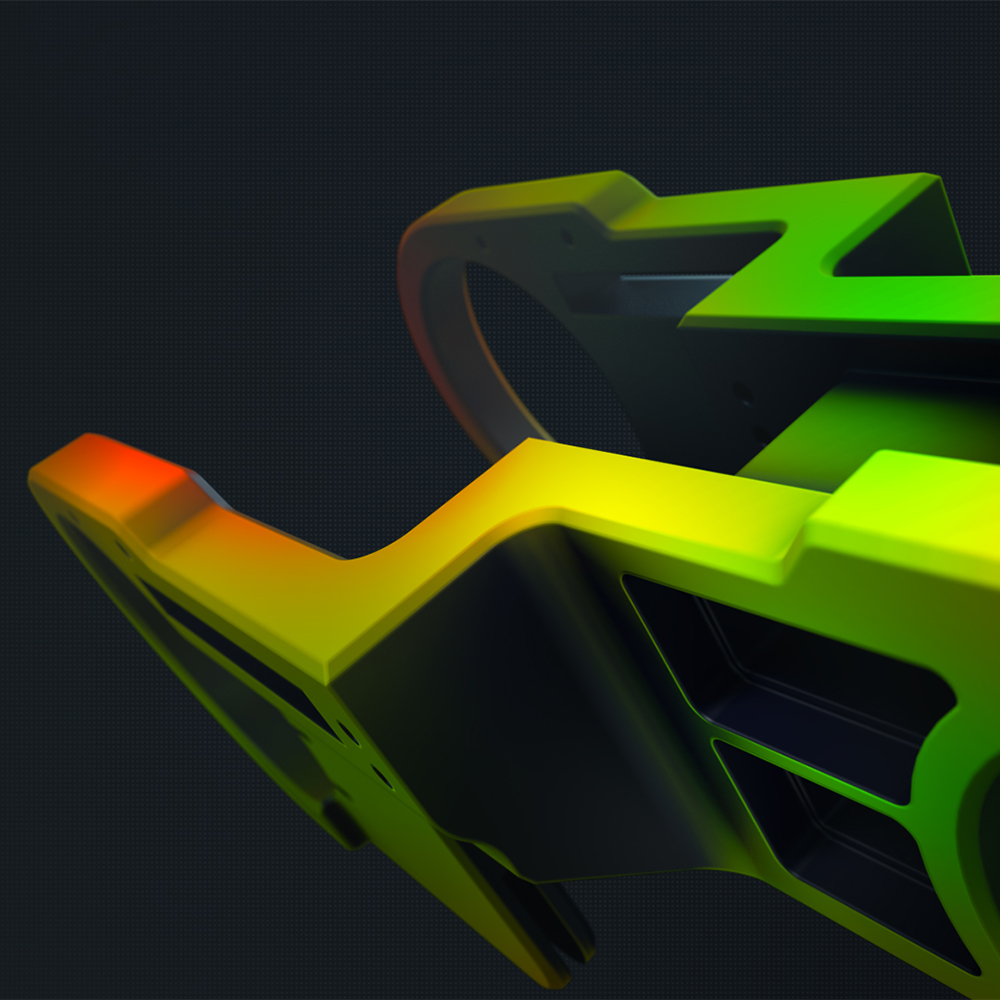

TRITOP comes with the powerful ZEISS INSPECT software. It guides the user through the entire measurement and evaluation process in an uncomplicated and reliable manner. The analysis tool enables the visualization of measuring results, a wide range of analyses and includes comprehensive reporting functions.

Zjistěte více

Bezkonkurenční tým

TRITOP as extension for ATOS

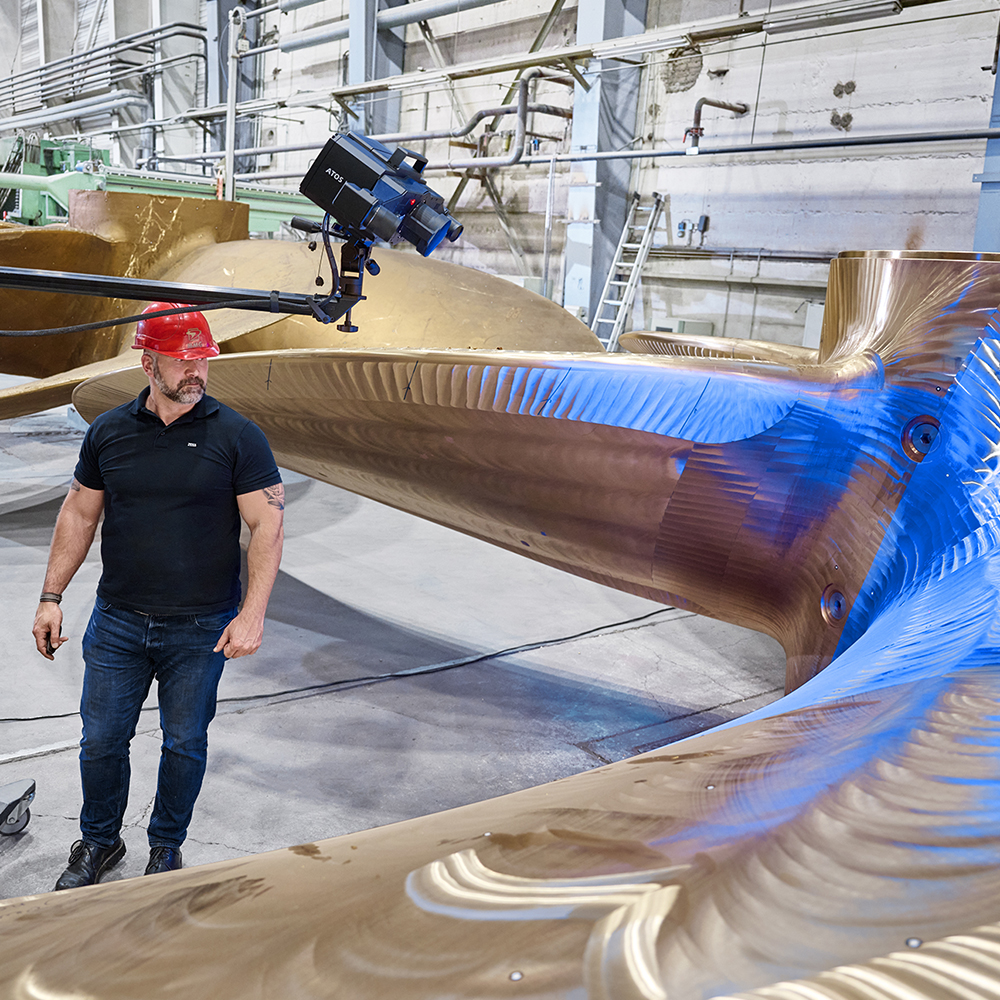

For the inspection of particularly large and often complex components, TRITOP starts by creating reference point clouds. The ATOS optical 3D scanner then uses these reference points to automatically transform its individual scans and thus achieves the overall accuracy of the photogrammetric measurement over the entire measurement area.

Zjistěte více

Measuring by taking photos

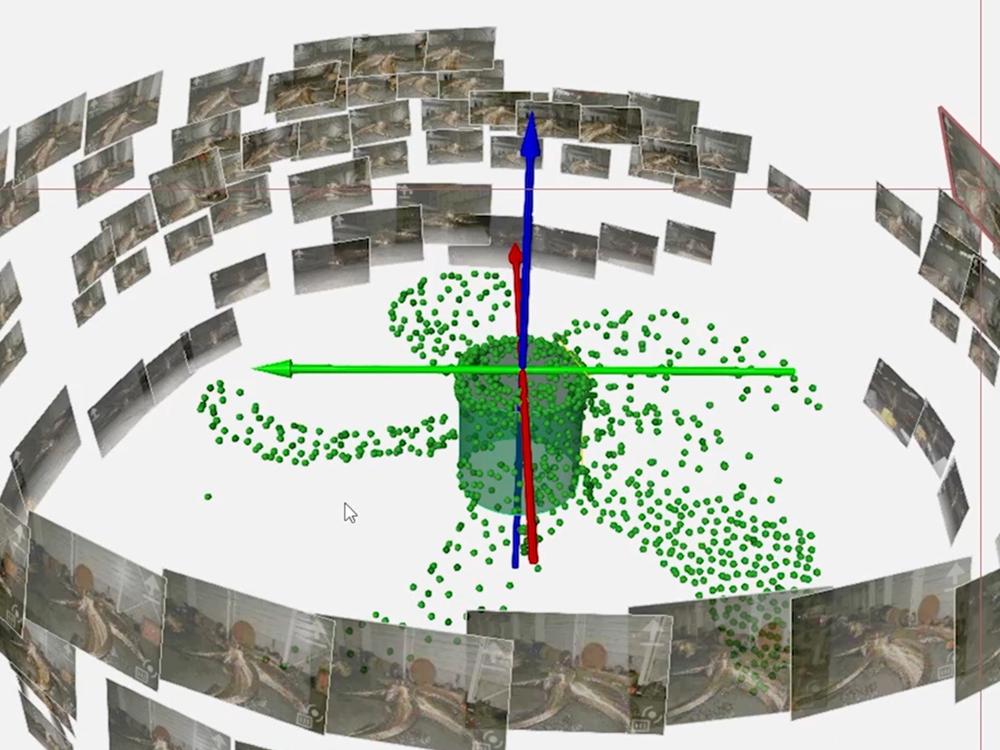

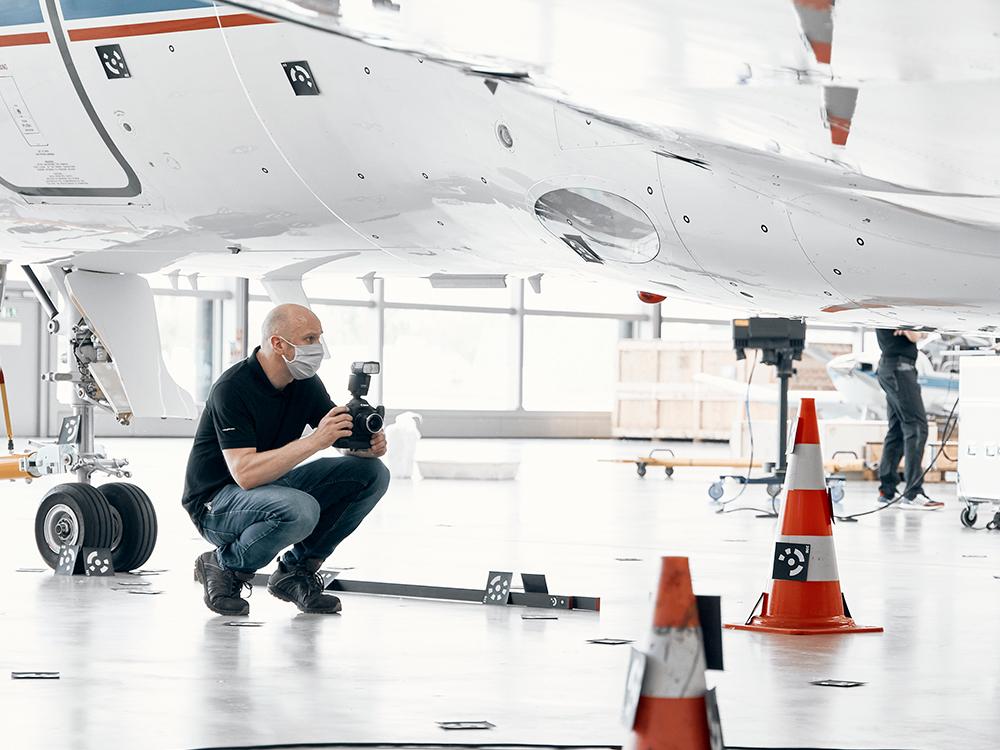

In photogrammetric measurement with TRITOP, the object coordinates are recorded using a digital measuring camera. TRITOP first photographs the object to be measured from different angles, then the software automatically calculates the 3D coordinates using the bundle adjustment of all the 2D images taken.

Sophisticated software user interface for error-free operation

Temperature stable, maintenance free, vibration resistant

Self-monitoring system with continuous image quality feedback

Significantly reduced measuring time, easy measurement preparation

Quickly overcome challenges in any location

Static deformation analysis

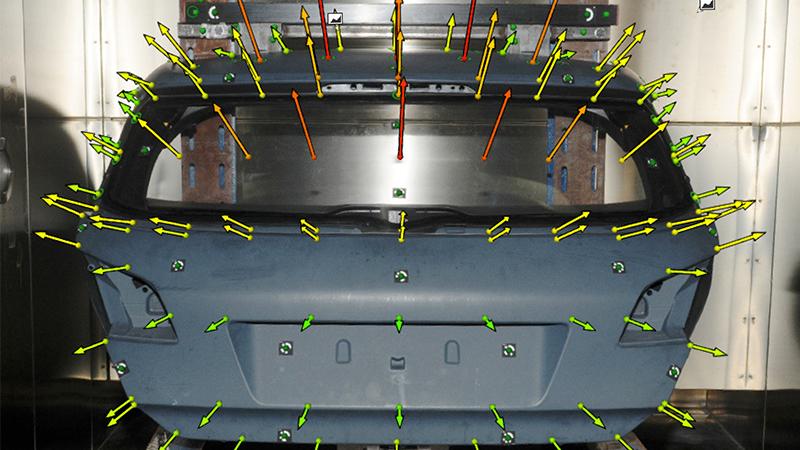

TRITOP determines displacements and deformations in climate chamber tests, environmental simulations, load and aging tests and analyzes gap and flush changes as well as stiffness.
Větrné turbíny

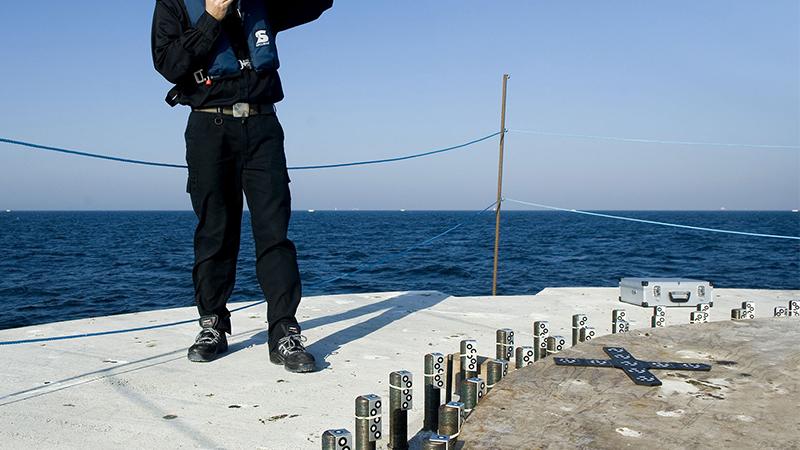

Wind turbines are often not assembled until they reach their destination. TRITOP provides accurate 3D coordinates of mounting bolts and mounting surfaces in the demanding offshore measurement environment.
Shipbuilding

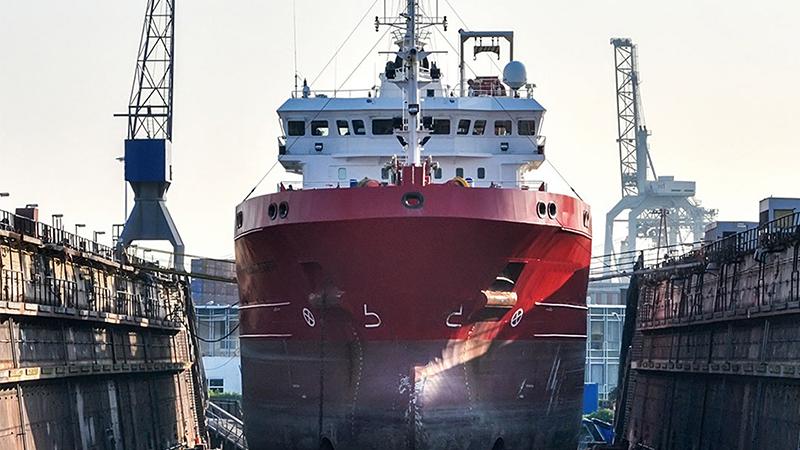

TRITOP reduces the time ships spend in dry dock from months to days. The measuring data helps to inspect ship hulls and reconstruct spare parts.

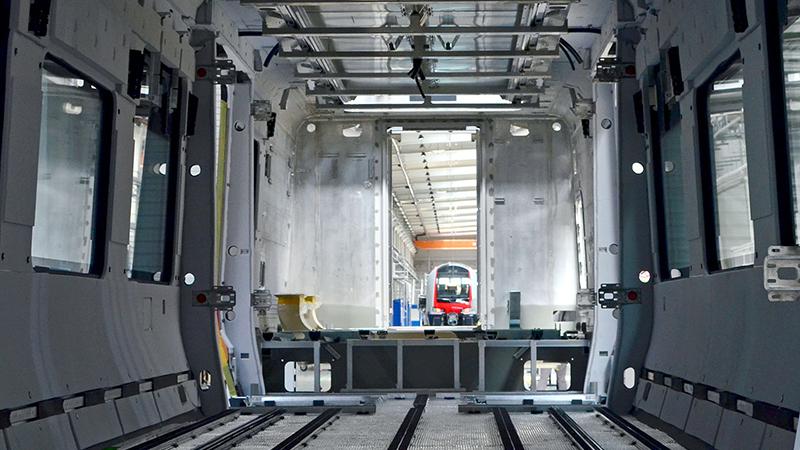

Train wagon construction

With a wide range of options for analyzing flatness, parallelism and squareness, TRITOP speeds up the measurement and inspection process.
