ZEISS DotScan
Optický senzor pro měření obecných tvarových plochChromatické senzory bílého světla umožňují bezkontaktní snímání topografie součásti. Obvykle se uplatňují pro citlivé, reflexní nebo málo kontrastní povrchy, pro které je obtížné použít jiné optické senzory.
Hlavní vlastnosti
![ZEISS DotScan: Optický senzor pro měření obecných tvarových ploch]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg"} "ZEISS DotScan: Optický senzor pro měření obecných tvarových ploch")

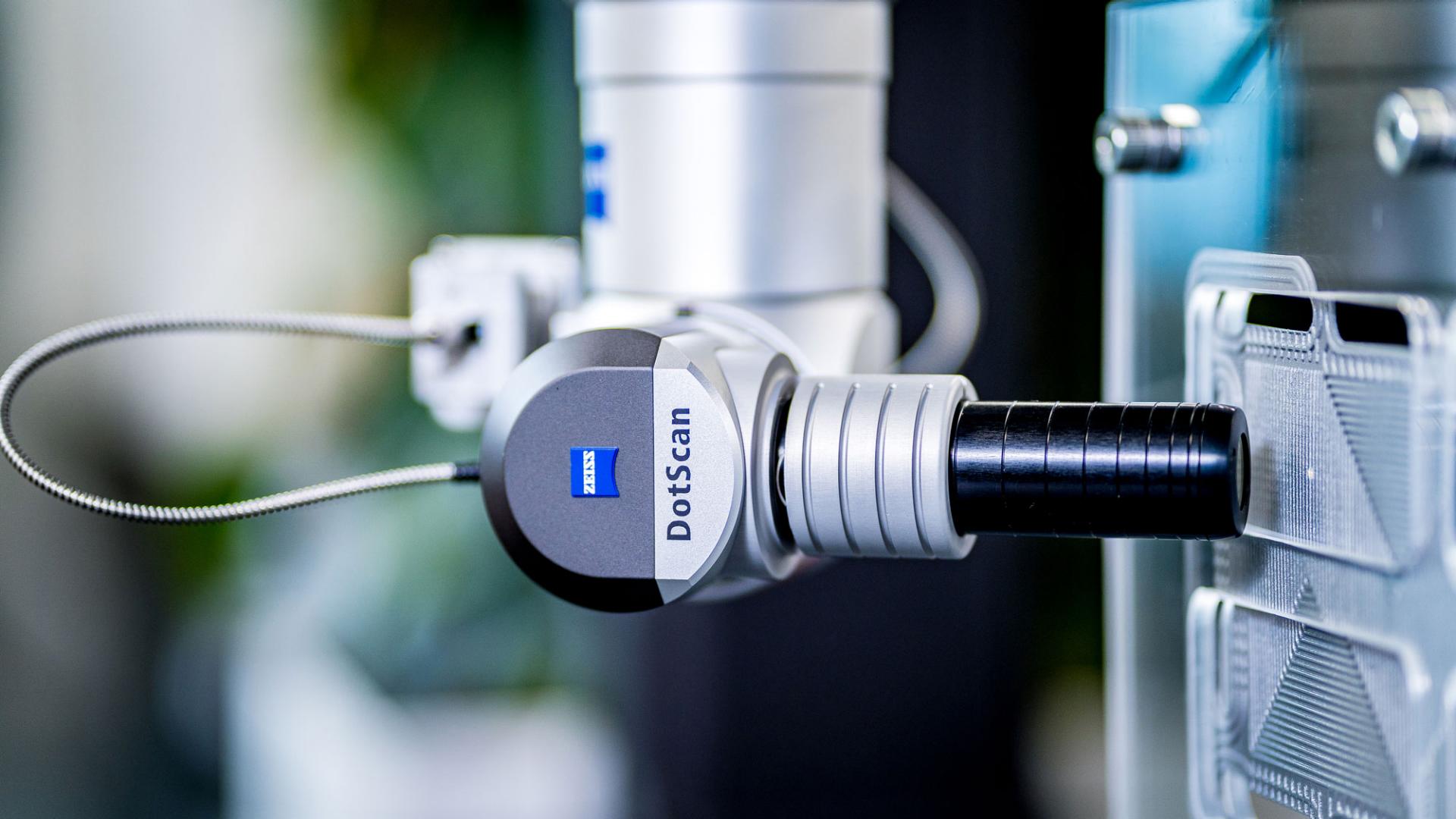

ZEISS DotScan se výborně hodí pro zachycení obecných tvarových ploch a také velmi drobných struktur. Chromatické senzory bílého světla – tedy také ZEISS DotScan – se volí pro citlivé, měkké, reflexní nebo málo kontrastní plochy, na kterých snímače nebo kamerové senzory již dosahují svých limitů.
Se senzorem ZEISS DotScan se dají skenovat vysoce reflexní povrchy, jako například kovové části kolenních implantátů, aniž je nutné aplikovat na ně kontrastní prostředek. Takto lze také odlišit transparentní lakované povrchy od jiných kovových vrstev pod nimi.
![ZEISS DotScan: Optický senzor pro měření obecných tvarových ploch]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg"} "ZEISS DotScan: Optický senzor pro měření obecných tvarových ploch")
Flexibilní použití
ZEISS DotScan je k dispozici ve třech velikostech pro tři různé měřicí rozsahy: 10, 3 a 1 mm. Senzor může být v CNC průběhu zcela automaticky vyměněn za jiné dotykové nebo optické senzory. S krokem 2,5 stupně může kloubová osa vyrovnat ZEISS DotScan tak, aby byl kolmý k povrchu skenovaného dílu.
A protože maximální úhel měření senzoru ZEISS DotScan 1 mm je plus/minus 30 stupňů, lze skenovat i silněji zakřivené díly. Díky způsobu fungování senzoru lze bez problémů skenovat širokou škálu materiálů ze všech stran. Při použití otočného stolu se dají provádět dokonce měřicí úlohy se čtyřosým skenováním.
