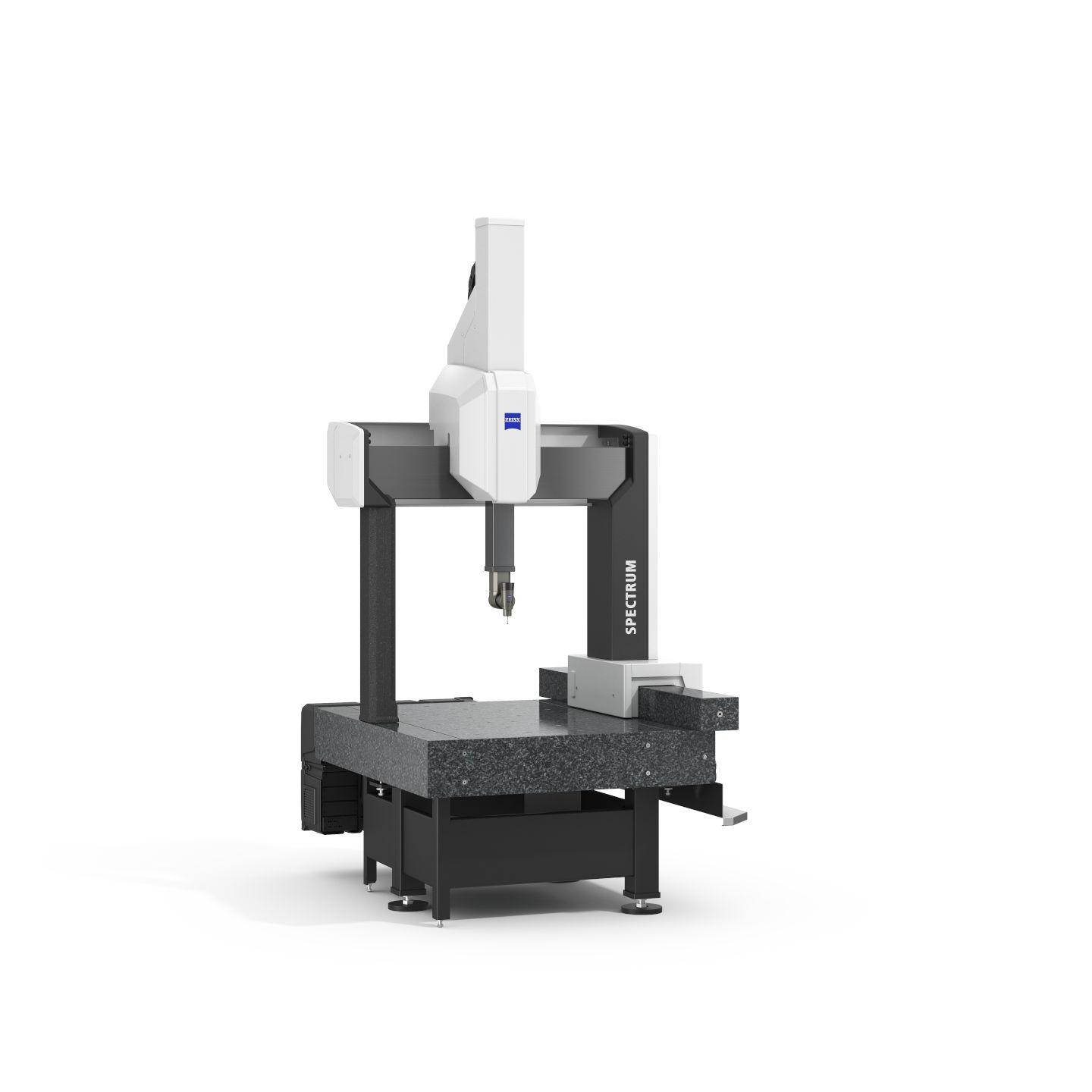

ZEISS SPECTRUM
Dotykové a optické snímáníZEISS SPECTRUM nabízí širokou škálu optických a dotykových skenovacích senzorů pro měření dílů s různou geometrií a různým povrchem. To zajišťuje flexibilní kontrolu kvality a konzistentní výsledky výroby, což dává důvěru ve výsledky měření.
![Velký měřicí rozsah]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/measuring-volume.jpg/_jcr_content/renditions/original.image_file.100.75.0,720,1920,2160.file/measuring-volume.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/measuring-volume.jpg/_jcr_content/renditions/original.image_file.360.270.0,720,1920,2160.file/measuring-volume.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/measuring-volume.jpg/_jcr_content/renditions/original.image_file.768.576.0,720,1920,2160.file/measuring-volume.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/measuring-volume.jpg/_jcr_content/renditions/original.image_file.1024.768.0,720,1920,2160.file/measuring-volume.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/measuring-volume.jpg/_jcr_content/renditions/original.image_file.1280.960.0,720,1920,2160.file/measuring-volume.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/measuring-volume.jpg/_jcr_content/renditions/original.image_file.1440.1080.0,720,1920,2160.file/measuring-volume.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/measuring-volume.jpg/_jcr_content/renditions/original.image_file.1920.1440.0,720,1920,2160.file/measuring-volume.jpg"} "Velký měřicí rozsah")

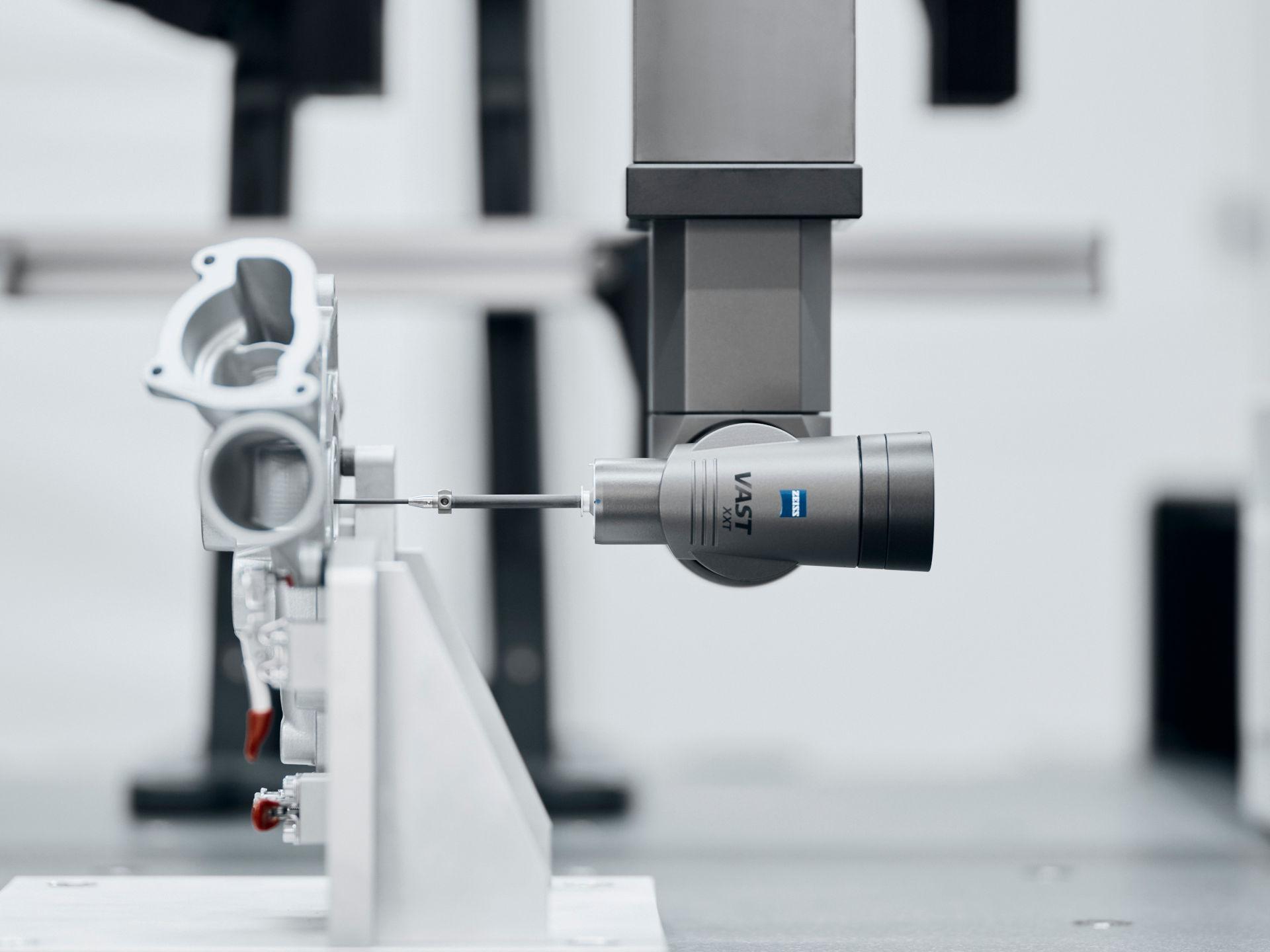

Velký měřicí rozsah
Inovativní kompaktní senzor VAST XXT TL3 zásadně ovlivňuje měřicí rozsah stroje. Díky chytré konstrukci výrazně zvětšuje dostupný prostor pro měření různých součástí. Tento rozšířený měřicí rozsah umožňuje větší flexibilitu a přístupnost pro typy dílů, které lze přesně měřit.
![Široké pokrytí aplikací]({"xsmall":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/coverage-applications.jpg/_jcr_content/renditions/original.image_file.100.75.106,0,1814,1281.file/coverage-applications.jpg","small":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/coverage-applications.jpg/_jcr_content/renditions/original.image_file.360.270.106,0,1814,1281.file/coverage-applications.jpg","medium":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/coverage-applications.jpg/_jcr_content/renditions/original.image_file.768.576.106,0,1814,1281.file/coverage-applications.jpg","large":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/coverage-applications.jpg/_jcr_content/renditions/original.image_file.1024.768.106,0,1814,1281.file/coverage-applications.jpg","xlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/coverage-applications.jpg/_jcr_content/renditions/original.image_file.1280.960.106,0,1814,1281.file/coverage-applications.jpg","xxlarge":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/coverage-applications.jpg/_jcr_content/renditions/original.image_file.1440.1080.106,0,1814,1281.file/coverage-applications.jpg","max":"https://www.zeiss.cz/content/dam/iqs/r/systems/cmm/bridge-cmms/spectrum-family/spectrum/coverage-applications.jpg/_jcr_content/renditions/original.image_file.1708.1281.106,0,1814,1281.file/coverage-applications.jpg"} "Široké pokrytí aplikací")

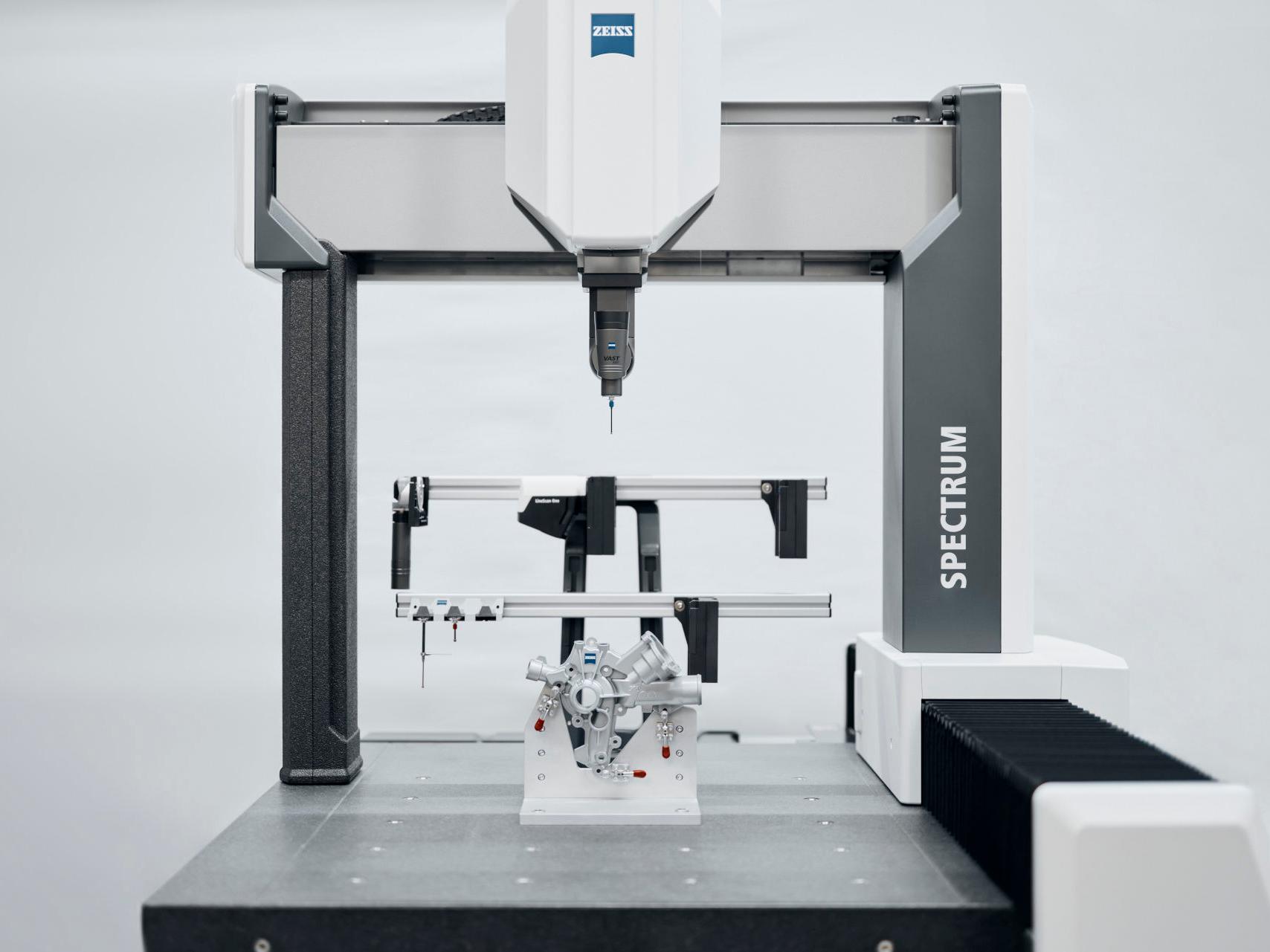

Široké pokrytí aplikací
Široké pokrytí aplikací a dostupnost různých senzorových balíčků usnadňují rozhodování na základě měřicí úlohy. Uživatelé si mohou senzorový balíček snadno přizpůsobit svým specifickým potřebám.
Technické údaje
|
ZEISS SPECTRUM
|
|
|---|---|
|
Typ |
Portálový stroj v měřicí místnosti |
|
Rozměry |
7/7/6; 7/10/6; |
|
Kompatibilní senzory |
RDS-CR5-CAA / VAST XXT TL3 / TL1 |
|
Přesnost |
Až: 1,8+L/250 µm |
|
Software |
ZEISS CALYPSO |
|
Úhlové polohy |
Krok 5 stupňů |
|
Optické senzory |
ZEISS LineScan One |
|
Volitelně |
ZEISS SoftTouch Mode |
